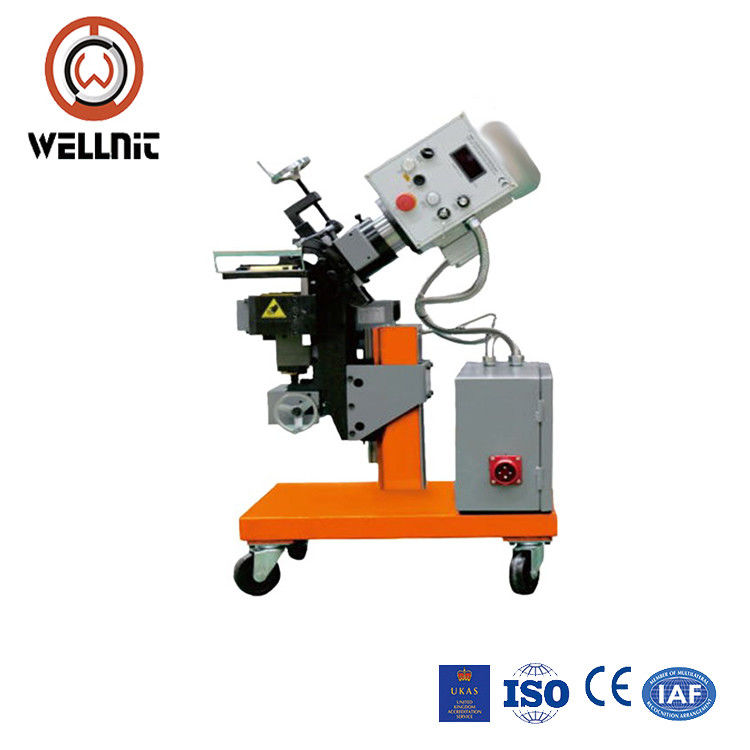

Carbon Steel Alloy Plate Edge Milling Machine For Boiler Pressure Vessel

Carbon Steel Alloy Plate Edge Milling Machine For Boiler Pressure Vessel
Carbon Steel Alloy Plate Edge Milling Machine For Boiler Pressure Vessel Carbon Steel Alloy Plate Edge Milling Machine For Boiler Pressure Vessel Carbon Steel Alloy Plate Edge Milling Machine For Boiler Pressure Vessel

Large Image :  Carbon Steel Alloy Plate Edge Milling Machine For Boiler Pressure Vessel

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-60L
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood
Delivery Time: Within 7days after we received 100% payment
Payment Terms: T/T
Supply Ability: 30 sets a month
Detailed Product Description
Power: AC 380V 50Hz Total: 3400W
Spindle Speed: 1050r/min Slop Angle: 0°-90°(adjustable)
Worktable Height: 820-860mm Processing Materials: Carbon Steel,Stainless Steel,Aluminum Alloy,Composite Plate
High Light:

handheld milling machine

,

steel plate beveling machine

Carbon Steel Alloy Plate Edge Milling Machine For Boiler Pressure Vessel




Main product performance

Pb-60l edge milling machine has the features of small size, light weight, convenient movement and simple

operation, suitable for small factories. The speed of processing and milling machine is not inferior, in

addition, this model of edge milling machine equipped with commonly used CNC blade, so that customers

can use more affordable.

Features: 1. Large adjustment range of groove Angle, arbitrary adjustment range from 0 to 90 degrees;

2. The rear of the reducer is conducive to the processing of narrow plates and is more secure;

3. The unique separate design of control box and electrical box makes the operation more secure;

4. Use the milling cutter disk with dense teeth to cut the groove, making the single blade cutting easier;

5. The surface finish of the processed groove reaches ra3.2-6.3 and completely meets the welding

requirements of pressure vessel;

6. Small size and light weight is a portable automatic walking and milling edge machine, as well as a

portable groove machine;

7. Cold cutting groove operation and no oxide layer on the surface of the groove.

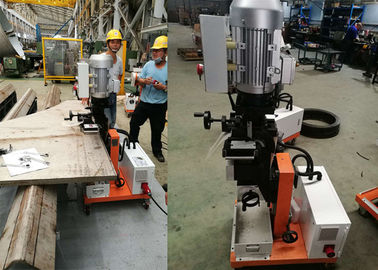

Carbon Steel Alloy Plate Edge Milling Machine For Boiler Pressure Vessel 0



Main performance of the product


     The PB-60L edge milling maching convenient movement and simple operation.The finish of the groove

is as high as Ra3.2-6.3.It is suitable for small factories.The milling maching is equipped with commonly

used CNC blades to make the customers use the cost more cheaply.

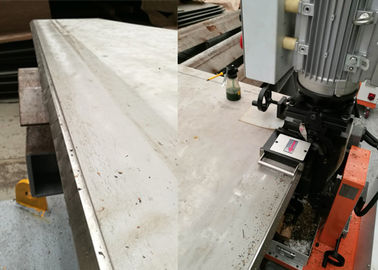

Carbon Steel Alloy Plate Edge Milling Machine For Boiler Pressure Vessel 1

Technical Parameter



PB-60L
Power AC 380V 50HZ
Total Power 3400W
Spindle Speed 1050r/min
Feed speed 0~1500mm/min
Clamp Thickness 6~60mm
Clamp Width 〉80mm
Process Length 〉300mm
Slop Angle 0°-90°(Adjustable)
Single groove 10-20mm
Worktable Height 820~860mm
Net Weight 220kg
Processing Materials Carbon Steel, Stainless Steel, Aluminium Alloy, Etc





Application of edge milling machine:



Edge milling machine is widely used in boiler and pressure vessel manufacturing, shipbuilding, electric



power, petroleum, chemical machinery, engineering machinery manufacturing, for all kinds of low carbon



steel, stainless steel plate and aluminium plate in front of the welding groove processing, bevel edge,



straight edge, a u-shaped groove can milling molding, compared with the chamfering machine, low price,



low energy consumption, high efficiency, high degree of finish, convenient operation and maintenance.



Compared with traditional edge milling machine:



Is dismountable for their, and through heat treatment, the bed structure is reasonable, the milling head is



more stable and reliable operation, the feed system and return completely independent, fast return, high



efficiency, convenient adjustment of the Angle of the milling cutter and custom knife plate and standard



knife dish interchangeable, the update products is the traditional edge milling machine.



Features of edge milling machine:



As an alternative product of edge planer, edge milling machine has the advantages of high efficiency, high



precision and low energy consumption. It is especially suitable for machining the groove of various shapes



of carbon steel plate. Generally 6-80mm thickness, 0-60 degree arbitrary regulation.



Performance of self-propelled edge milling machine:



1. Unique driving walking function



2. Stable machining accuracy of special device



3. Specially cut all kinds of metal materials



4. Advanced cutting tools and long-term supply of different blades
