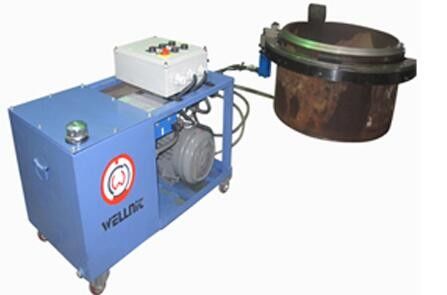

Light Weight Hydraulic Pipe Cutting And Beveling Machine Compact Design 72 Kg

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

Light Weight Hydraulic Pipe Cutting And Beveling Machine Compact Design 72 Kg

Light Weight Hydraulic Pipe Cutting And Beveling Machine Compact Design 72 Kg
Light Weight Hydraulic Pipe Cutting And Beveling Machine Compact Design 72 Kg Light Weight Hydraulic Pipe Cutting And Beveling Machine Compact Design 72 Kg

Large Image :  Light Weight Hydraulic Pipe Cutting And Beveling Machine Compact Design 72 Kg

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE,ISO
Model Number: OCH-168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 500 sets / year
Detailed Product Description
Driven: Hydraulic Driven Wall Thickness: ≤30mm
Material: Steel Shipping Weight: 72 Kg
Working Range: 2"-6"(50-168mm) Package Size: 640*650*280mm
Refrigeration: Cooling Liquid Mounting Method: Split OD Mount
High Light:

cold cutting pipe equipment

,

industrial pipe cutting tools

Light Weight Hydraulic Pipe Cutting And Beveling Machine Compact Design 72 Kg





Production Description:



16 models, working range for pipe OD 1"-48"


Non-standard model can be customized


Out-mounted style, clamping by multipoint jaws.


Split frame technology, easy to install on the pipeline.


Cold cutting and beveling, don't influence the pipe's material.


Auto feed, cutting and beveling at the one time, cost effective.


Varity of beveling shape: "U", "V", "Y", J", double "V", compound bevels.


Stationary ring is steel; rotation ring is aluminum, and steel optional


Electric, pneumatic, numerical control and hydraulic drive options are available.


Several different drive options are available to best position, the motor for a specific machining application.


It can be equipped a wide range of accessories to increase performance and expand.



Standard split frame pipe cutting and beveling machine, designed to cut, bevel, single point, counterbore



and face on the pipe, tube and flanges. It is a portable pipe cutting and beveling machine tools of clamshell



style. Smartly designed, ability to split in half at the frame, easy to install on the pipe line.



It is comprehensive used in pipework of oil, gas, food, petroleum, chemical, boiler, medicine machine,



nuclear power, and power supply construction. 16 models are available in 6 inch (152.4mm) increments,



with additional sizes available by special order.

Capability


Pipe cut off


Pipe end beveling


Pipe facing


Cutting and beveling


Compound beveling


Counter boring


Flange facing


Grooving.



The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



The equipment performs precision in-line cut or simultaneous cut/bevel, single point,



counterbore and flange facing operations, as well as weld end preparation on open ended pipe,



Ranging from 2” to 48” O.D.(DN50-1200), on most wall thicknesses and material.





Light Weight Hydraulic Pipe Cutting And Beveling Machine Compact Design 72 Kg 0







Light Weight Hydraulic Pipe Cutting And Beveling Machine Compact Design 72 Kg 1



Main Features:



1. Cold Cutting and Beveling improve safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Self-acting tools feed.



5. Fast, Precision, In-situ Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and Compact design.



8. Easy install & Operation.



9. Pneumatic or Electric or Hydraulic driven.



10. Machining heavy-wall pipe from 2” up to 48”.



Technical Specifications:



Model working range(ID-OD) wall thickness rotation speed
OCH-1230

Φ1066-1230(42”-48”)

≤30mm

10 r/min





Note:Non-standard machine are available according to customers' requirement.





1. Drive Options: Pneumatic, Hydraulic, and Electric.



2. Air requirement: 1500L-3000L /Min@0.6/0.7Mpa.



3. Hydraulic requirement: 2-60L per minute 12.5Mpa.



4. Electric requirement:220-240V 1PH 50/60HZ.



5. Feed mode: Star wheel, automatically.



6. Feed rate: Fixed 0.08mm per circle.





Before you place order to us, please let us know the following information:



1. Choose suitable Model.



2. Confirm electric power supply ( Voltage, frequency and phase).



3. Confirm the beveling angel needed.



4. Confirm the welding joint required (U, V, Double V or Compound preparation).



5. Advise your pipe material ( Carbon steel, stainless steel or others).



6. Other special demands about machine.



-  The spare parts required.



-  If the pipe wall thickness more than 30mm, inform us in advance (Important).
