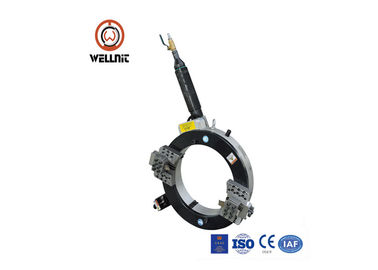

OD Mounted Tube Cutting And Beveling Machine Pneumatic Driving Type 12 R/min

OD Mounted Tube Cutting And Beveling Machine Pneumatic Driving Type 12 R/min
OD Mounted Tube Cutting And Beveling Machine Pneumatic Driving Type 12 R/min

Large Image :  OD Mounted Tube Cutting And Beveling Machine Pneumatic Driving Type 12 R/min

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE,ISO
Model Number: OCP-426
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets month
Detailed Product Description
Package: Wooden Case / Metal Box (Optional) Rated Power: 1.5-2KW
Speed: 12 R/min HS CODE: 8461909000
Working Range: 273-426mm;10''-16'' Cutting Material: Carbon,stainless,alloy
Driving Type: Pneumatic
High Light:

pneumatic pipe cutting and beveling machine

,

split frame machine

OD Mounted Tube Cutting And Beveling Machine Pneumatic Driving Type 12 R/min





Production Description:



The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and



flange facing operations, as well as weld end preparation on open ended pipe.





Pneumatic


Explosion Proof


Stable performance


Easy to maintenance


Air requirement: 1500-2000L/min @0.63-0.8Mpa


Power: 2HP, 3HP, 4HP


Double motor for big model or heavy duty



Electric


Convenient power supply


Stable performance


Popular choice


Electric requirement: 220-240V 1PH 50/60HZ


Power: 1.43KW, 1.7KW, 2.4KW


Double motor for big model or heavy duty



Hydraulic


Powerful drive, high efficiency


Stable performance, low noise, anti-explosion


Ideal for heavy wall thickness & large size pipe


Hydraulic requirement: 28-50L/min @13Mpa


Electric requirement: 380V 3PH 50/60Hz


Rated Pressure: 13MPa


Rated flow: 28L/min


Max. Torque: 380NM



NC


Powerful drive, high efficiency


Low noise, stable performance


Ideal for heavy wall thickness & large size pipe


Electric requirement: 230V 1PH 50/60Hz;


380V 3PH 50/60Hz


Power: 2.0KW or 3.0KW


Double motor for big model or heavy duty



Form Style


Material: M42 and M35


Type: Sever, bevel, double bevel


compound bevel,counter bore


Angle: 0°, 30°, 37.5°


Double 30°, 37.5°+10°


Size: 90mm, 150mm, 200mm



Insert style


Material: Holder HSS


Insert: HSS-Co or Carbide


Type: Sever, bevel, double bevel, compound bevel


Angle: 0°, 30°, 37.5°,


Double 30°, 37.5°+10°


Size: 90mm, 150mm, 200mm



Main Features:



1. Cold Cutting and Beveling improves safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Tools feed automatically.



5. Fast, Precision, On-site Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and compact design.



8. Easy set-up & Operation.



9. Machining heavy-wall pipe from 3/4" up to 56.





Model Working Range (ID-OD) Wall Thickness Rotation Speed Air pressure Air Consumption
OCP-89 Φ25-89 3/4''-3'' ≤35 50r/min 0.6MPa 1500 L/min
OCP-159 Φ50-159 2''-5'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-168 Φ50-168 2''-6'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-230 Φ80-230 3''-8'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-275 Φ125-275 5''-10'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-305 Φ150-305 6''-10'' ≤35 18r/min 0.6MPa 1500 L/min
OCP-325 Φ168-325 6''-12'' ≤35 16r/min 0.6MPa 1500 L/min
OCP-377 Φ219-377 8''-14'' ≤35 13r/min 0.6MPa 1500 L/min
OCP-426 Φ273-426 10''-16'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-457 Φ300-457 12''-18'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-508 Φ355-508 14''-20'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-560 Φ400-506 16''-22'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-610 Φ457-610 18''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-630 Φ480-630 20''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-660 Φ508-660 20''-26'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-715 Φ560-715 22''-28'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-762 Φ600-762 24''-30'' ≤35 11r/min 0.8MPa 2000 L/min
OCP-830 Φ660-813 26''-32'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-914 Φ762-914 30''-36'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-1066 Φ914-1066 36''-42'' ≤35 9r/min 0.8MPa 2000 L/min
OCP-1230 Φ1066-1230 42''-48'' ≤35 8r/min 0.8MPa 2000 L/min



The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and



flange facing operations, as well as weld end preparation on open ended pipe.





Tools:



OD Mounted Tube Cutting And Beveling Machine Pneumatic Driving Type 12 R/min 0



Technical Specifications:



Model working range(ID-OD) wall thickness rotation speed
OCP-426

Φ273-426(10”-16”)

≤30mm

12 r/min
