Smooth Cutting Portable Plate Beveling Machine With 4 Blades Rustproof

Smooth Cutting Portable Plate Beveling Machine With 4 Blades Rustproof
Smooth Cutting Portable Plate Beveling Machine With 4 Blades Rustproof Smooth Cutting Portable Plate Beveling Machine With 4 Blades Rustproof

Large Image :  Smooth Cutting Portable Plate Beveling Machine With 4 Blades Rustproof

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-10D
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood
Delivery Time: Within 7days after we received 100% payment
Payment Terms: T/T
Supply Ability: 30 sets a month
Detailed Product Description
Power: AC 380V 50Hz Total: 2800W
Spindle Speed: 1440r/min Bevel Angle: 30°-60°
Clamp Width: >20mm Processing Materials: Carbon Steel, Stainless Steel, Aluminium Alloy, Etc.
High Light:

handheld milling machine

,

hand held plate beveler



Smooth Cutting Portable Plate Beveling Machine



With 4 Blades Rustproof






Main performance of the product



     PB-10D small table plate milling machine.The finish of the groove is as



high as Ra 3.2-6.3,and the machine is suitable for high hardness material



such as carbon steel,stainless steel,aluminum alloy and other materials.



It includes groove processing for high degree of smoothness of beveling



machine.



Technical Parameter



1. Feed torque is improved again,More stable processing performance,The smooth finish of the groove



reaches Ra3.2-6.3



2. The groove angle of the equipment can be adjusted freely between 30° and 60°.



3. easy to use,Easy to learn,Ordinary workers can operate multiple devices at the same time



4. Single maximum slope width 10mm,Up to 18mm multiple times



5. Milling cold working method,The processed groove surface is not oxidized,Stainless steel groove can



be welded without pickling



6. Can be processed for small and medium plates,Knife tray with 4 blades,Each group can process 800-



1200m,Very low consumables







PB-10D
Power Supply AC 380V 50HZ
Power 2600W
Spindle Speed 1440r/min
Feed Speed 0~1500mm/min(Adjustable)
Bevel Width 1~18mm
Maximum Milling Width 10mm
Bevel Angle 15°~75°(Adjustable)
Clamp Thickness 2~40mm
Clamp Width >20mm
Net Weight 80Kg
Processing Materials Carbon Steel, Stainless Steel, Aluminium Alloy, Etc

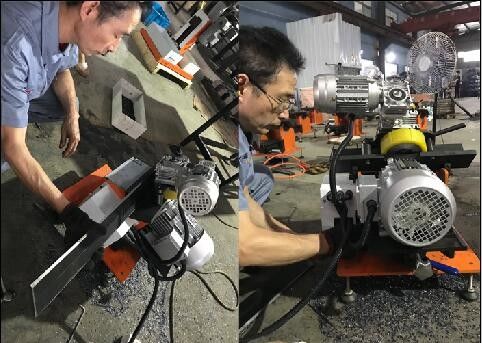

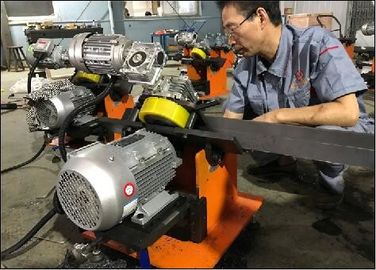

Product description and main performance



This machine is also called stationary edge milling machine, mainly using the milling principle of small



plates need large groove milling edge and dedicated to the development of new products. Table edge



milling machine product single processing edge milling width of 10 mm, the maximum processing to 18mm



edge width. Compared with the general machine type, the processing capacity of table milling edge



machine is unmatched by other machine types. The machine innovatively USES the rolling driven wheel



device, which eliminates manual piling, and the material can be self-feeding after entering the material



port, making the feeding easier when the machine works. Applicable to common structural steel, stainless



steel, cast iron, hard plastics, non-ferrous metals and other materials. It is a special tool for cutting edge



of welding front end face. This machine has the advantages of smooth surface, easy to use, low labor



intensity, high efficiency and low cost. It solve that problems of flame cut, grinding of polishing machine,



large-scale milling machine, etc., the product is cheap and beautiful, and the small machine can be used



as the best partner in the edge milling operation of your small material



Smooth Cutting Portable Plate Beveling Machine With 4 Blades Rustproof 0
