High Precision Plate Edge Milling Machine Hand Held Plate Beveler Anti Corrosion

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

High Precision Plate Edge Milling Machine Hand Held Plate Beveler Anti Corrosion

High Precision Plate Edge Milling Machine Hand Held Plate Beveler Anti Corrosion
High Precision Plate Edge Milling Machine Hand Held Plate Beveler Anti Corrosion High Precision Plate Edge Milling Machine Hand Held Plate Beveler Anti Corrosion High Precision Plate Edge Milling Machine Hand Held Plate Beveler Anti Corrosion

Large Image :  High Precision Plate Edge Milling Machine Hand Held Plate Beveler Anti Corrosion

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-10D
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood
Delivery Time: Within 7days after we received 100% payment
Payment Terms: T/T
Supply Ability: 30 sets a month
Detailed Product Description
Power: AC 380V 50Hz Total: 2600W
Spindle Speed: 1440r/min Feed Speed: 0~1500mm/min(Adjustable)
Bevel Width: 1-18mm Clamp Thickness: 2-40mm
High Light:

hand held plate beveler

,

steel plate beveling machine



High Precision Plate Edge Milling Machine Hand Held



Plate Beveler Anti Corrosion





Main performance of the product



     PB-10D small table plate milling machine.The finish of the groove is as



high as Ra 3.2-6.3,and the machine is suitable for high hardness material



such as carbon steel,stainless steel,aluminum alloy and other materials.



It includes groove processing for high degree of smoothness of beveling



machine.







PB-10D
Power Supply AC 380V 50HZ
Power 2600W
Spindle Speed 1440r/min
Feed Speed 0~1500mm/min(Adjustable)
Bevel Width 1~18mm
Maximum Milling Width 10mm
Bevel Angle 15°~75°(Adjustable)
Clamp Thickness 2~40mm
Clamp Width >20mm
Net Weight 80Kg
Processing Materials Carbon Steel, Stainless Steel, Aluminium Alloy, Etc




The product description




The chamfered beveling machine developed for small-sized plates is equipped with high-strength



polyurethane as the pressure wheel, which can realize continuous rolling compaction, and the high-



efficiency and stable processing can be realized for the bar plate and the small plate. The small size of the



plate is more suitable, and the pb-10d groove with its strong power and high efficiency has been highly



praised by many customers, with its smooth and clean surface and high efficiency and convenient



movement.


This machine mainly USES the principle of milling, milling the edge of the steel plate according to the



desired Angle, so as to obtain the necessary groove for welding. Applicable to common structural steel


, stainless steel, cast iron, hard plastic, non-ferrous metals and other materials! The flat beveling machine



is chamfered on the end face before welding


The special tool of groove solves the defects such as improper Angle, rough slope surface and loud



working noise of operation process such as flame cutting and grinding by grinding machine


, can automatically walk according to the material edge automatically, this machine has the adjustment



Angle convenient, the operation convenient, the unit time efficiency is high, the environmental protection



has the operation simple, the Angle standard, the surface is smooth.

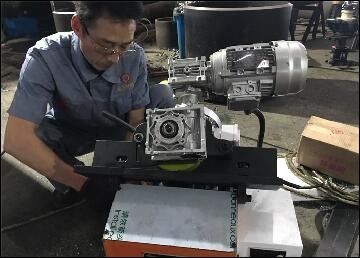

High Precision Plate Edge Milling Machine Hand Held Plate Beveler Anti Corrosion 0

1. Feed torque is improved again,More stable processing performance,The smooth finish of the groove



reaches Ra3.2-6.3



2. The groove angle of the equipment can be adjusted freely between 30° and 60°.



3. easy to use,Easy to learn,Ordinary workers can operate multiple devices at the same time



4. Single maximum slope width 10mm,Up to 18mm multiple times



5. Milling cold working method,The processed groove surface is not oxidized,Stainless steel groove can



be welded without pickling



6. Can be processed for small and medium plates,Knife tray with 4 blades,Each group can process 800-



1200m,Very low consumables



High Precision Plate Edge Milling Machine Hand Held Plate Beveler Anti Corrosion 1



Product description and main performance



This machine is also called stationary edge milling machine, mainly using the milling principle of small



plates need large groove milling edge and dedicated to the development of new products. Table edge



milling machine product single processing edge milling width of 10 mm, the maximum processing to 18mm



edge width. Compared with the general machine type, the processing capacity of table milling edge



machine is unmatched by other machine types. The machine innovatively USES the rolling driven wheel



device, which eliminates manual piling, and the material can be self-feeding after entering the material



port, making the feeding easier when the machine works. Applicable to common structural steel, stainless



steel, cast iron, hard plastics, non-ferrous metals and other materials. It is a special tool for cutting edge



of welding front end face. This machine has the advantages of smooth surface, easy to use, low labor



intensity, high efficiency and low cost. It solve that problems of flame cut, grinding of polishing machine,



large-scale milling machine, etc., the product is cheap and beautiful, and the small machine can be used



as the best partner in the edge milling operation of your small material
