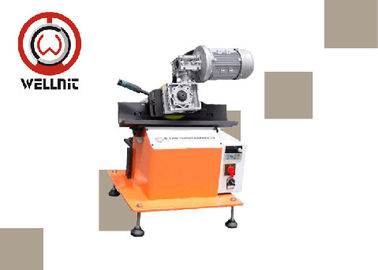

Low Consumables Plate Edge Milling Machine AC 380V 50Hz , Plate Beveling Tools

Low Consumables Plate Edge Milling Machine AC 380V 50Hz , Plate Beveling Tools
Low Consumables Plate Edge Milling Machine AC 380V 50Hz , Plate Beveling Tools Low Consumables Plate Edge Milling Machine AC 380V 50Hz , Plate Beveling Tools Low Consumables Plate Edge Milling Machine AC 380V 50Hz , Plate Beveling Tools

Large Image :  Low Consumables Plate Edge Milling Machine AC 380V 50Hz , Plate Beveling Tools

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-10D
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood
Delivery Time: Within 7days after we received 100% payment
Payment Terms: T/T
Supply Ability: 30 sets a month
Detailed Product Description
Power: AC 380V 50Hz Total: 3400W
Spindle Speed: 1050r/min Bevel Angle: 30°-60°
Bevel Width: 1-18mm Clamp Thickness: 2-40mm
High Light:

hand held plate beveler

,

steel plate beveling machine



Low Consumables Plate Edge Milling Machine AC



380V 50Hz , Plate Beveling Tools





The product description


The chamfered beveling machine developed for small-sized plates is equipped with high-strength



polyurethane as the pressure wheel, which can realize continuous rolling compaction, and the high-



efficiency and stable processing can be realized for the bar plate and the small plate. The small size of the



plate is more suitable, and the pb-10d groove with its strong power and high efficiency has been highly



praised by many customers, with its smooth and clean surface and high efficiency and convenient



movement.


This machine mainly USES the principle of milling, milling the edge of the steel plate according to the



desired Angle, so as to obtain the necessary groove for welding. Applicable to common structural steel


, stainless steel, cast iron, hard plastic, non-ferrous metals and other materials! The flat beveling machine



is chamfered on the end face before welding


The special tool of groove solves the defects such as improper Angle, rough slope surface and loud



working noise of operation process such as flame cutting and grinding by grinding machine


, can automatically walk according to the material edge automatically, this machine has the adjustment



Angle convenient, the operation convenient, the unit time efficiency is high, the environmental protection



has the operation simple, the Angle standard, the surface is smooth.



Technical Parameter



Power AC 380V 50HZ
Total Power 3400W
Spindle Speed 1050r/min
Feed speed 0~1500mm/min
Clamp Thickness 6~60mm
Clamp Width 〉80mm
Process Length 〉300mm
Slop Angle 0°-90°(Adjustable)
Single groove 10-20mm
Worktable Height 820~860mm
Net Weight 220kg
Processing Materials Carbon Steel, Stainless Steel, Aluminium Alloy, Etc







Product description and main performance



This machine is also called stationary edge milling machine, mainly using the milling principle of small



plates need large groove milling edge and dedicated to the development of new products. Table edge



milling machine product single processing edge milling width of 10 mm, the maximum processing to 18mm



edge width. Compared with the general machine type, the processing capacity of table milling edge



machine is unmatched by other machine types. The machine innovatively USES the rolling driven wheel



device, which eliminates manual piling, and the material can be self-feeding after entering the material



port, making the feeding easier when the machine works. Applicable to common structural steel, stainless



steel, cast iron, hard plastics, non-ferrous metals and other materials. It is a special tool for cutting edge



of welding front end face. This machine has the advantages of smooth surface, easy to use, low labor



intensity, high efficiency and low cost. It solve that problems of flame cut, grinding of polishing machine,



large-scale milling machine, etc., the product is cheap and beautiful, and the small machine can be used



as the best partner in the edge milling operation of your small material





Low Consumables Plate Edge Milling Machine AC 380V 50Hz , Plate Beveling Tools 0





Technical Parameter



1. Feed torque is improved again,More stable processing performance,The smooth finish of the groove reaches Ra3.2-6.3

2. The groove angle of the equipment can be adjusted freely between 30° and 60°.

3. easy to use,Easy to learn,Ordinary workers can operate multiple devices at the same time

4. Single maximum slope width 10mm,Up to 18mm multiple times

5. Milling cold working method,The processed groove surface is not oxidized,Stainless steel groove can be welded without pickling

6. Can be processed for small and medium plates,Knife tray with 4 blades,Each group can process 800-1200m,Very low consumables
