Product Details:
Payment & Shipping Terms:
|
| Power: | AC 380V 50Hz | Total: | 3400W |
|---|---|---|---|
| Spindle Speed: | 1050r/min | Feed Speed: | 0-1500mm/min |
| Milling Width: | 0-40mm | Spindle Milling Width: | 10-15mm |
| Slope Angle: | 10°-60°（adjustable） | Clamping Thickness: | 6-40mm |
| Holding The Minimum Plate Width: | 100mm | Machining Steel Plate Length: | 〉200mm |
| Worktable Height: | 820-860mm | Weight: | 250kg |
| Processing Materials: | Carbon Steel,Stainless Steel,Aluminum Alloy,Composite Plate | ||
| High Light: | handheld milling machine,steel plate beveling machine |
||

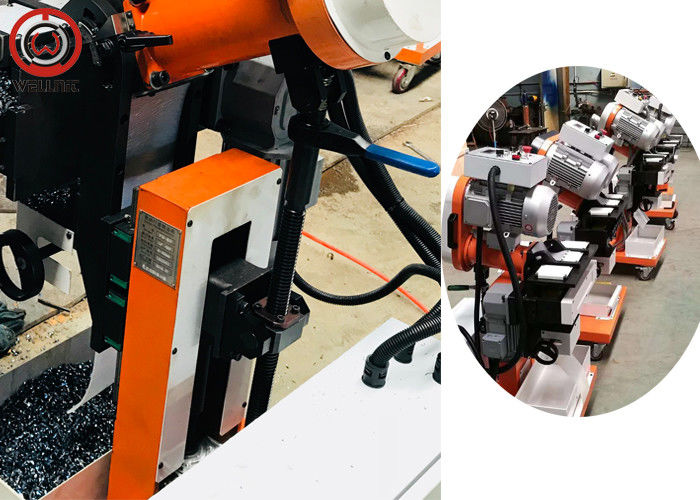

High Feed Speed Plate Chamfering Machine Stainless Steel Light Weight
Main performance of the product
PB-60 is a small, light weight, simple operation, high efficiency automatic marching milling machine,
groove angle and groove depth can be adjusted, large and small plates can be used, processing speed
and milling machine, no inferior. The machined groove surface is as high as Ra3.2~6.3, which completely
meets the welding requirements of pressure vessels.
Compare with traditional plate milling machine
The milling head runs more smoothly and reliably, its feed system and return system are completely
independent, return speed is fast, efficiency is high, the angle of milling cutter head is adjusted
conveniently, custom cutter head and standard cutter head are interchangeable, which is a new
generation of traditional milling machine.
Technical Parameter
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
Operation adjustment
1. loosen the nut on both sides of the scale, adjust the groove angle through the blue handle.
2. release the black plastic handle and adjust the groove depth through the silver metal knob behind the
machine.
3. Adjust the height of the machine (for sheets with workbenches) by rotating the plastic handle on the
caster.
product application
Automatic marching milling machine is widely used in boiler, pressure vessel manufacturing industry,
shipbuilding, electric power, petroleum, chemical machinery, construction machinery manufacturing, for all
kinds of low-carbon steel plate, stainless steel plate and aluminum plate before welding groove
processing, bevel, straight edge, U groove can be one-time milling molding, compared with planer, has a
price Low, low energy consumption, high efficiency, high degree of finish, easy operation and
maintenance.
