Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz

Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz
Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz

Large Image :  Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-80
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood
Delivery Time: Within 7days after we received 100% payment
Payment Terms: T/T
Supply Ability: 30 sets a month
Detailed Product Description
Milling Width: 0-70mm Single Milling Width: 15-20mm
Slope Angle: 0°-60°(Adjustable) Clamp Thickness: 6-60mm
Clamp Width: 〉100mm Process Length: 〉300mm
High Light:

hand held plate beveler

,

steel plate beveling machine

Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz





Product Introduction



PB-80 automatic marching milling machine is a dual-motor, power upgrade, automatic steel plate milling



machine, stainless steel plate, carbon steel plate, aluminum alloy plate and other different materials can



be used, for large plates, to build a workbench, the machine on both sides of the plate can be carried out



simultaneously. The machine is easy to operate and can be processed at the same time without manual



assistance after adjustment. It has high efficiency and saves time and labor costs.







Technical Parameter





Model





PB-80





Slope Angle





0°-60°(Adjustable)





Power





AC 380V 50Hz



Clamp Thickness



6-60mm



Total





4800W



Clamp Width



〉100mm



Spindle Speed





750-1050r/min (adjustadle)



Process Length



〉300mm



Feed speed





0~1500mm/min (adjustadle)



Worktable Height



820-860mm



Milling Width





0-70mm



Net Weight



220kg







Single Milling



Width









15-20mm







Processing Materials



Carbon Steel



Stainless Steel



Aluminium Alloy , Etc







Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz 0



Main performance of the product



1. The PB-80 edge milling machine convenient movement and simple operation.



2. The finish of the groove is as high as Ra3.2-6.3.



3. The milling machine is equipped with commonly used CNC blades to make the



customers use the cost more cheaply.

Details of Product

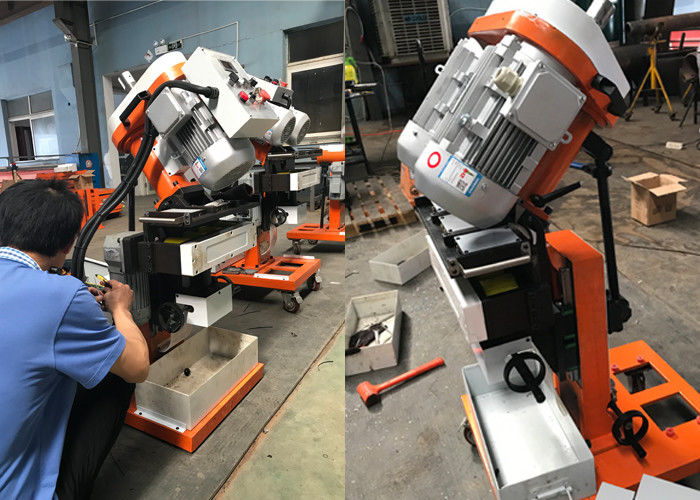

Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz 1Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz 2



The plastic handle in the picture is used to adjust the height of the machine, adjust the handle, and



contact the rubber wheel with the upper part of the steel plate.



On the control panel, there are spindle switch, feed switch, spindle speed, feed speed, power indicator



and emergency stop.



Operation procedure:



One Step: turn on the power.



Second Step: turn the spindle switch to ON, and the feed switch rotates to L.



Third step: start the spindle speed to 1300, and feed speed to 300.



After the plate is completely pressed, the feed rate and feed speed can be adjusted according to the



sound of the motor.
