Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Power: | AC 380V 50Hz | Total: | 4800W |
|---|---|---|---|
| Spindle Speed: | 750-1050r/min(adjustadle) | Feed Speed: | 0~1500mm/min(adjustadle) |
| Milling Width: | 0-70mm | Single Milling Width: | 15-20mm |
| Slope Angle: | 0°-60°（Adjustable） | Clamp Thickness: | 6-60mm |
| Worktable Height: | 820-860mm | ||
| High Light: | hand held plate beveler,steel plate beveling machine |
||

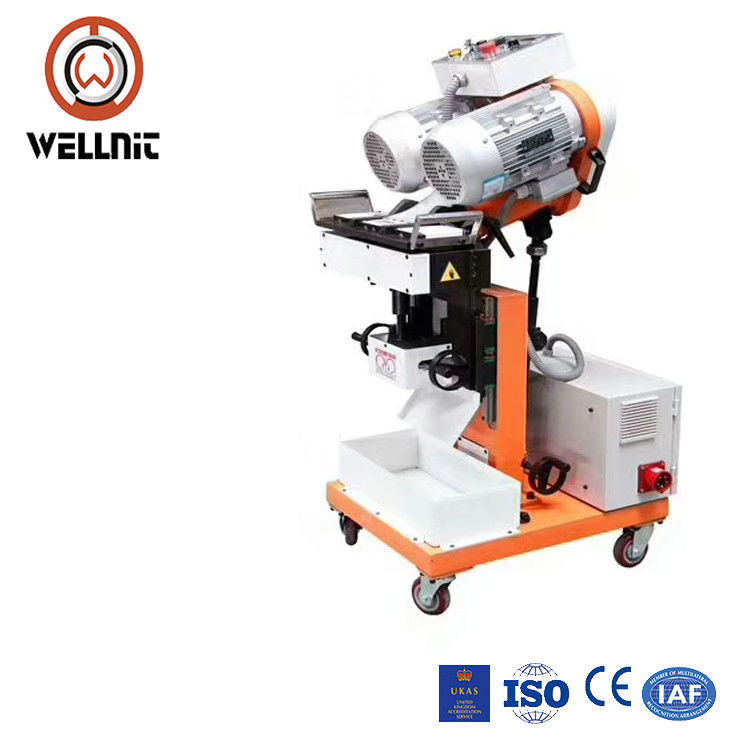

Stainless Steel Plate Edge chamfering Machine 6mm - 60mm Clamp Thickness
Main performance
PB-80 automatic progressive milling machine adopts dense tooth milling cutter head to milling groove,
single blade to cut groove, the blades are CNC NC milling blades, a blade has four use surfaces,
customer use low cost, high efficiency. The control box and the electric box are placed separately, which
makes the machine operation safer. This is a convenient, fast, efficient and cost-saving automatic
portable steel plate milling machine.
Technical Parameter
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Carbon Steel
Stainless Steel
Aluminium Alloy , Etc |
There are many types of automatic marching milling machine, PB-80 this double-motor milling machine,
machine power, processing efficiency is the highest. The spindle of the machine can be adjusted speed,
for carbon steel, stainless steel, aluminum alloy and other different materials, plate hardness is different,
spindle speed can be different. If the hardness of the plate is not high, the speed of the spindle can be
adjusted faster; if the hardness of the plate is relatively high, the speed of the spindle can be adjusted
slower, so as to reduce the loss of the machine.

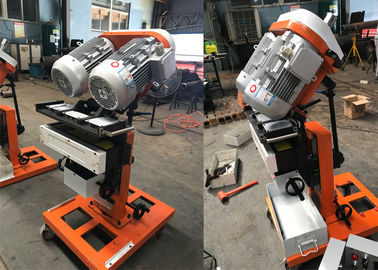

Details of Product
The blue rubber handle in the picture is used to adjust the groove angle of the plate.
The nut on both sides of the dial is sent to adjust the handle to adjust the groove angle.
The yellow rubber wheel seen in the picture is the lower rubber wheel. There are two black plastic rotating
handwheels under the white board.
When the hand wheel is rotated, the lower rubber wheel will rise, thus holding the steel plate.
