High Efficiency Self Moving Plate Chamfering Machine Cold Working Automatic Feed

High Efficiency Self Moving Plate Chamfering Machine Cold Working Automatic Feed
High Efficiency Self Moving Plate Chamfering Machine Cold Working Automatic Feed

Large Image :  High Efficiency Self Moving Plate Chamfering Machine Cold Working Automatic Feed

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-80
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood
Delivery Time: Within 7days after we received 100% payment
Payment Terms: T/T
Supply Ability: 30 sets a month
Detailed Product Description
Power: AC 380V 50Hz Total: 4800W
Milling Width: 0-70mm Single Milling Width: 15-20mm
Slope Angle: 0°-60°(Adjustable) Clamp Thickness: 6-60mm
Clamp Width: 〉100mm Worktable Height: 820-860mm
Net Weight: 220kg
High Light:

handheld milling machine

,

hand held plate beveler

High Efficiency Self Moving Plate Chamfering Machine Cold Working Automatic Feed







The characteristics of the milling machine



PB-80 automatic marching milling machine, as a substitute for planer, has the advantages of high



efficiency, high precision and low energy consumption. It is especially suitable for groove machining of



various shapes such as carbon steel, stainless steel and aluminum alloy. The general clamping thickness



is 6-60 mm, groove angle 0-60 degrees can be arbitrarily adjusted, dual motor, high power, faster



High Efficiency Self Moving Plate Chamfering Machine Cold Working Automatic Feed 0

processing speed, higher efficiency.





Main performance of the product



1. The unique driving function.



2. Special equipment stable machining accuracy.



3. Special cutting of all kinds of metal materials



4, advanced cutting tools and long-term supply of



different blades.






Technical Parameter







Model





PB-80



Slope Angle



0°-60°(Adjustable)



Power





AC 380V 50Hz



Clamp Thickness



6-60mm



Total





4800W



Clamp Width



〉100mm



Spindle Speed





750-1050r/min (adjustadle)



Process Length



〉300mm



Feed speed





0~1500mm/min (adjustadle)



Worktable Height



820-860mm



Milling Width





0-70mm



Net Weight



220kg







Single Milling Width









15-20mm







Processing Materials



Carbon Steel



Stainless Steel



Aluminium Alloy , Etc







Matters needing attention:



1. If the plate is cut by flame cutting machine or plasma cutting machine, it needs to be polished first,



because after cutting by flame cutting machine or plasma cutting machine, the surface of the plate will



produce welding slag, welding slag is very hard, if the machine chamfer is used directly, it will cause



damage to the tool and reduce the tool life.



2. If the iron chips are found to be purple in the process of machining, it means that the machine feeds too



much or the feeding speed is too fast, and the feed rate needs to be reduced or reduced.



3. When processing stainless steel plate, it is necessary to add coolant, which not only makes groove



surface smoother, but also reduces tool loss.

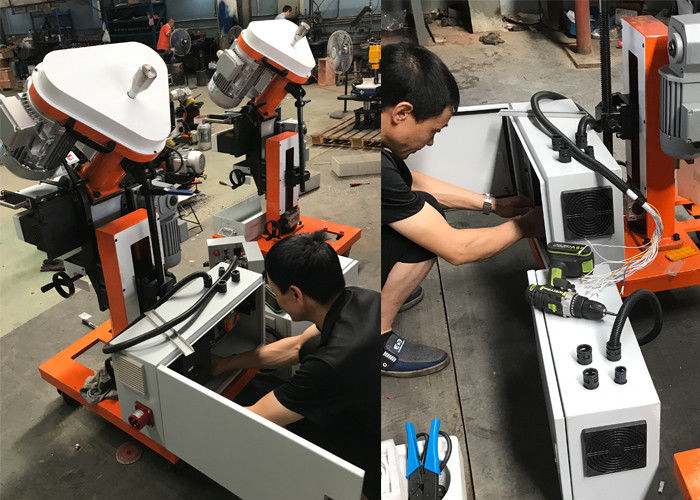

High Efficiency Self Moving Plate Chamfering Machine Cold Working Automatic Feed 1
