PB-10D High Quality Low Price Metal Steel Plate Cold Edge Bevel Machine Beveler Wellnit On Site Use

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

PB-10D High Quality Low Price Metal Steel Plate Cold Edge Bevel Machine Beveler Wellnit On Site Use

PB-10D High Quality Low Price Metal Steel  Plate Cold Edge Bevel  Machine  Beveler Wellnit On Site Use
PB-10D High Quality Low Price Metal Steel  Plate Cold Edge Bevel  Machine  Beveler Wellnit On Site Use
video play

Large Image :  PB-10D High Quality Low Price Metal Steel Plate Cold Edge Bevel Machine Beveler Wellnit On Site Use

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-10D
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden box
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T,, L/C
Supply Ability: 100 sets for a mounth
Detailed Product Description
Power Offer: 380V 50Hz Operation Way: Electric
Thickness: 2-40mm (Standard) Feed Speed: 1440r/min
Working WAY: Automatic Feed Power: 2000W
Bevel Width: 1-18mm Material: Metal
Bevel Angle: 30°-60° Spindle Speed: 0-1500r/min
Single Bevel Width: 1-10mm
High Light:

plate chamfering machine

,

plate edge beveling machine

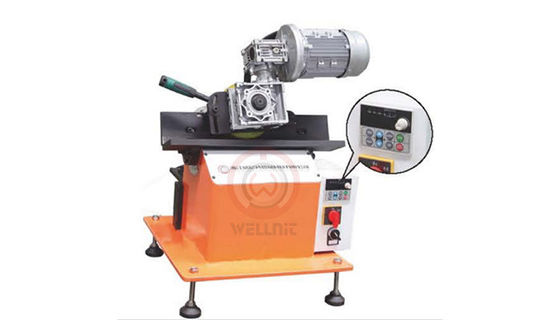

PB-10D Automatic moving and feeding for plate surface side  milling machine for small plate

PB-10D High Quality Low Price Metal Steel  Plate Cold Edge Bevel  Machine  Beveler Wellnit On Site Use 0



Machine Feature:



  • High quality transmission reducer with efficiency and stability.
  • Shock absorption to move with fast bevelling.
  • Process with electric and easy adjustable for even un-professional worker to reduce labour cost.
  • Low noise while processing by imported motor.
  • Processing material could be : Stainless stell,carbon steel,AL Alloy ,Clad Plate .etg
  • Feeding used efficient gear system.
  • Electrical wiring comply with CE standard and safty systerm.
  • Special parts used high wear-resisting and hardness material
  • Favourite price for a high quality tool.
  • Accessories & parts and tools will be offered in a tool box with manual .





Specification:





Power Supply AC 380V 50HZ
Total Power 2000W
Spindle Speed 1440r/min
Feed Speed 0-1500mm/min
Clamp Thinkness 2-40mm
Clamp Width >20mm
Processing Length No limited
Bevel Angle 30°-60° Adjustable
Single Bevel Width 1-10mm
Bevel Width 2-40mm
Cutter Plate φ40mm
Cutter Qty 4pcs
Workable Height 200mm
Material CS,SS,Aluminum,Composite
Net Weight 80kg
Gross Weight 90kg
Package Size 600*700*900mm



Non-standard machines are available according to customers’requirement.

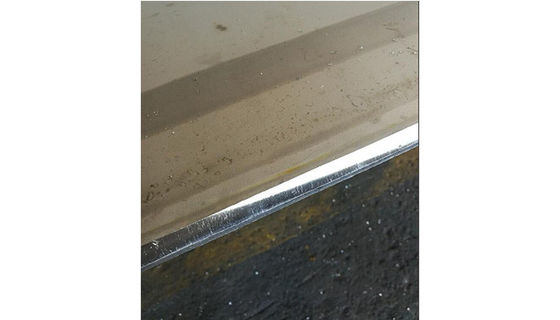

Bevel result show:

PB-10D High Quality Low Price Metal Steel  Plate Cold Edge Bevel  Machine  Beveler Wellnit On Site Use 1

PB-10D High Quality Low Price Metal Steel  Plate Cold Edge Bevel  Machine  Beveler Wellnit On Site Use 2



Our machines in factory:



PB-10D High Quality Low Price Metal Steel  Plate Cold Edge Bevel  Machine  Beveler Wellnit On Site Use 3

PB-10D High Quality Low Price Metal Steel  Plate Cold Edge Bevel  Machine  Beveler Wellnit On Site Use 4









Packing:



Selling Units: Single item
Single package size: 600*700*900mm
Single gross weight: 80.0 KG
Package Type: Wooden Case



PB-10D High Quality Low Price Metal Steel  Plate Cold Edge Bevel  Machine  Beveler Wellnit On Site Use 5





RFQ:

1.How to choose a suitable model?

RE: Before choose the model,we need to know more details about the pipe,such as the I.D,

O.D,wall thickness,the material of the pipe and the enviroment of the site and the requirement of the end face. Then it will be more convient for all of us to make an immediately

decision .Thanks!

2.Do you have another choice about the driven?

RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,

hydraulic and NC.

3. About the type of the beveling?

RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe that our engineer can provide a solution for you.



Before Order :



*Choose the right Model


*Confirm your electric power supply ( Voltage, frequency and phase)


*Confirm the beveling angel required


*Confirm the welding joint required (U, V, Double V or Compound preparation)


*Advise your pipe material ( Carbon steel, stainless steel or others)


*Other special demands about machine


*The spare parts needed


*If the pipe wall thickness more than 30mm, inform us in advance (Important)
