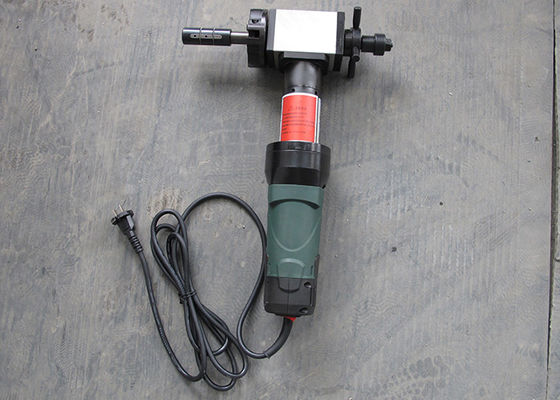

Heat Exchanger Pipe Beveling Machine

Heat Exchanger Pipe Beveling Machine
Heat Exchanger Pipe Beveling Machine
video play

Large Image :  Heat Exchanger Pipe Beveling Machine

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISE-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plastic Box
Delivery Time: within 3days
Payment Terms: T/T
Supply Ability: 240 set / month
Detailed Product Description
Operation Way: Manual Operation Working Range (I.D): 18-28mm
Function: Can Make Pipe And Plate Separate Bevel Angle: Can Be Customized
Bevel Type: Inside Bevel Or Facing
High Light:

Heat Exchanger Pipe Beveling Machine

,

28mm Pipe Beveling Machine

,

Pre Welding Pipe Beveling Machine



Portable small size tube and plate separate heat exchanger pipe beveling machine


Performance of products

This series products is Pre-welding processing equipment.Designed for pipes of different sizes and materials.Different Models Machine have different working range,different material pipe can choose different material beveling (cutting)tool. The tool material have M2 and M42.

This machine is internal Mounted machine.Working clearance is small,Suitable for narrow situtaion.Compact design,lightweight,easy to carry out.

The machine can process carbon steel,stainless steel,aluminum alloy etc.



Heat Exchanger Pipe Beveling Machine 0


Function of products

  • Compact design , Light Weight
  • Inside Mounted , Small Raduis
  • I type (manual operation) ; II type (Automatic Operation)  , High efficiency
  • Bevel angle can be adjustable
  • Working Range (18-840mm) ; Wall thickness less than 75mm
  • Outside Bevel , Inside bevel , Tube facing , counter boring ( Bevel Type: V , U , X etc )
  • Pipe material: carbon steel , stainless steel , aluminum alloy etc
  • Machine Drievn : Electric ; Pneumatic

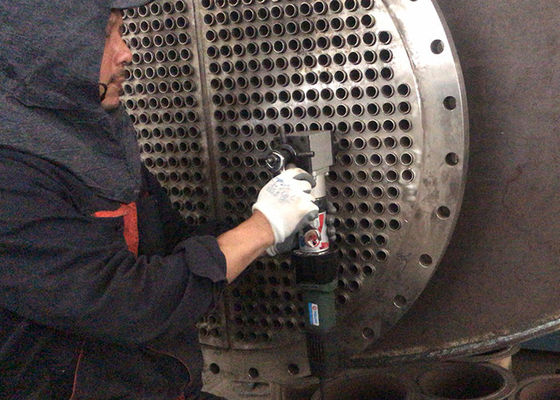

 Pipe and plate separate


Specification of Products


Model Working Range (I.D) Wall thickness Rotation Speed
ISE-30 18-28mm less than 15mm 50r/min
ISE-80 28-76mm less than 15mm 55r/min
ISE-120 40-120mm less than 15mm 30r/min
ISE-159 65-159mm less than 20mm 35r/min
ISE-252-1 80-240mm less than 20mm 16r/min
ISE-352-1 150-330mm less than 20mm 14r/min
ISE-426-1 250-426mm less than 20mm 12r/min
ISE-630-1 300-600mm less than 20mm 10r/min
ISE-850-1 600-840mm less than 20mm 9r/min
ISE-252-2 80-240mm less than 75mm 16r/min
ISE-352-2 150-330mm less than 75mm 14r/min
ISE-426-2 250-426mm less than 75mm 12r/min
ISE-630-2 300-600mm less than 75mm 10r/min
ISE-850-2 600-840mm less than 75mm 9r/min







































 Heat Exchanger Pipe Beveling Machine 1


Application Range
The machine widely used in the fields of petroleum , Chemical , natural gas ; Power supply construction ; boiler and nuclear power etc

  • Site construction of high sulfur pipelines
  • on site construction of TUHA oil field
  • natural gas storage pipeline project
  • petro chine pipeline project
  • china Russia pipeline project
  • inspection and repair of pipeline in large power plants
  • emergency repair of nuclear industry equipment
  • project of west gas transporting to east china

Product Show

Heat Exchanger Pipe Beveling Machine 2
Bevel Type

Outside bevel , Inside bevel , tube facing , counter boring etc

"V" Tybe ; "U" Tybe ; "X" Tybe etc

Heat Exchanger Pipe Beveling Machine 3
Heat Exchanger Pipe Beveling Machine 4Heat Exchanger Pipe Beveling Machine 5
