40mm Clamp 3400W Cold Beveling Plate Chamfering Machine

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

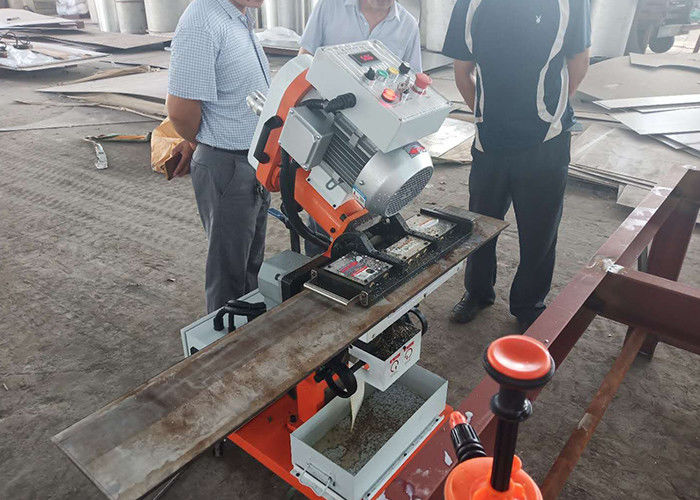

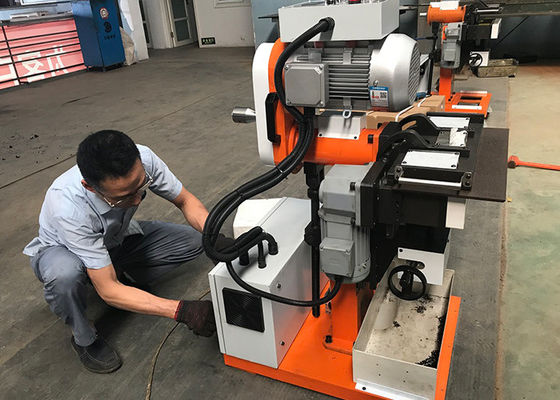

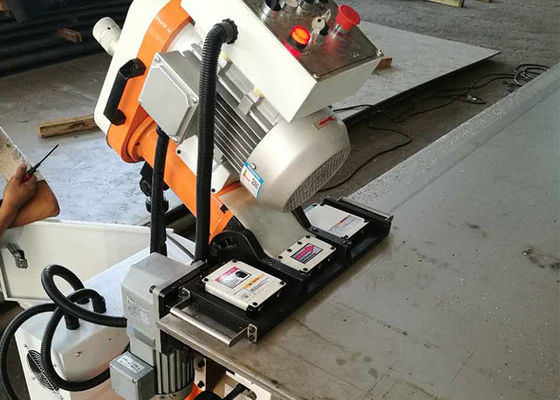

40mm Clamp 3400W Cold Beveling Plate Chamfering Machine

40mm Clamp 3400W Cold Beveling Plate Chamfering Machine
40mm Clamp 3400W Cold Beveling Plate Chamfering Machine 40mm Clamp 3400W Cold Beveling Plate Chamfering Machine 40mm Clamp 3400W Cold Beveling Plate Chamfering Machine

Large Image :  40mm Clamp 3400W Cold Beveling Plate Chamfering Machine

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plywood Box
Delivery Time: within 5 days
Payment Terms: T/T
Supply Ability: 10set / month
Detailed Product Description
Power Supply: AC 380V 50Hz Motor Power: 3400W
Bevel Angle: 10 To 60 Degree Bevel Width: 1-45mm
Clamp Thickness: 6-40mm
High Light:

Cold Beveling Plate Chamfering Machine

,

3400W Plate Chamfering Machine

,

40mm Clamp Plate Chamfering Machine

Automatic Feed Stainless steel plate chamfering Remove burrs machine





Performance of products



This series of machine special design for metal plate, automatic feed ,automatic matching , several side of plate can processing together, more efficiency! Save labor, lower cost.Machine can process small plate and big plate. can process thin plate and thick plate. bevel angle can be adjustable, bevel depth can be adjustble, high accurate.can process carbon steel , stainless steel , aluminum alloy , compound plate etc.





Function of products

  • Cold beveling , can not affect plate material
  • Automatic marching and feed, save labor and cost
  • Easy to operation , one worker can operation seversal machine together,high efficiency
  • Bevel angle and depth both can be adjustable , high accurate
  • small or big plate , thin or thick plate , both can processing
  • plate material: carbon steel , stainless steel , aluminum alloy , compound plate etc.
  • Bevel Type : V , U  , X , compound bevel etc

Bevel Type

40mm Clamp 3400W Cold Beveling Plate Chamfering Machine 0



Machine Specification



Model PB-60
Power Supply AC 380V 50Hz
Motor Power 3400W
Spindle Speed 1050r/min
Feed Speed 0-1500r/min (Adjustable)
Bevel Width 1-45mm
Single Bevel Width 1-15mm
Bevel Angle 10 - 60 Degree
Clamp Thickness 6-40mm
Clamp Width greater than 100mm
Clamp Length greater than 300mm
Worktable Height 820-860mm
Net Weight 250Kg
Processing Materials Carbon Steel , Stainless Steel , Aluminum Alloy etc



40mm Clamp 3400W Cold Beveling Plate Chamfering Machine 1



40mm Clamp 3400W Cold Beveling Plate Chamfering Machine 2



Order Guide

  • Plate length
  • Plate width
  • Plate thickness
  • Plate material
  • Plate condition : Straight Blade or Curved Plate ?
  • Bevel Angle
  • Bevel depth
  • Processing Drawing
