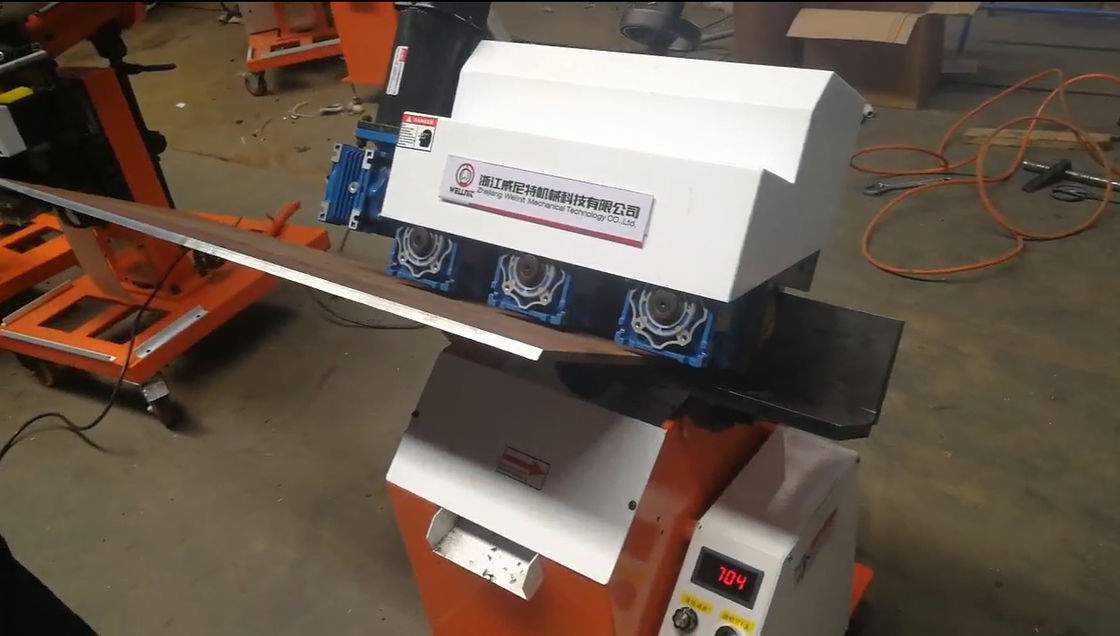

40mm Thickness 1440r/Min Plate Edge Beveling Machine

40mm Thickness 1440r/Min Plate Edge Beveling Machine
40mm Thickness 1440r/Min Plate Edge Beveling Machine
video play

Large Image :  40mm Thickness 1440r/Min Plate Edge Beveling Machine

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-20D
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden box
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T,, L/C
Supply Ability: 100 sets for a mounth
Detailed Product Description
Power Offer: 380V 50Hz Operation Way: Electric
Thickness: 2-40mm (Standard) Feed Speed: 1440r/min
Working WAY: Automatic Feed Power: 2000W
Bevel Width: 1-18mm Material: Metal
Bevel Angle: 30°-60° Spindle Speed: 0-1500r/min
Single Bevel Width: 1-10mm
High Light:

1440r/Min Plate Edge Beveling Machine

,

40mm Plate Edge Beveling Machine

,

Chamfering Plate Edge Beveling Machine

PB-20D Automatic moving and feeding for plate surface side  milling machine for small plate





Machine Feature:



Semi-automatic precise chamfering machine, manual feeding, automatic clamping and automatic driving and reversing machine



1. Clamp mould and cutter head and carefully designed to ensure the center line of processed object and cutter head will not be changed. The processing of outer angle at tube end, inner angle and tube end can be finished uniformly in one time.

2. The speed can be changed by changing the belt pulley to adapt to different metal material and ensure the longest service life of cutter.

3. Feeding speed at two sections can save time and the slow speed can be easily adjusted to ensure perfect processing.





Specification:





Power Supply AC 380V 50HZ
Total Power 1620W
Spindle Speed 1440r/min
Feed Speed 0-1500mm/min
Clamp Thinkness3 1-18mm
Clamp Width 2-40mm
Processing Length No limited
Bevel Angle 30°-37.5° Adjustable
Single Bevel Width 1-10mm
Bevel Width 1-20mm
Bevel Plate φ40mm
Cutter Qty 12pcs
Workable Height 200mm
Material CS,SS,Aluminum,Composite
Net Weight 80kg
Gross Weight 90kg
Package Size 600*700*900mm



Non-standard machines are available according to customers’requirement.

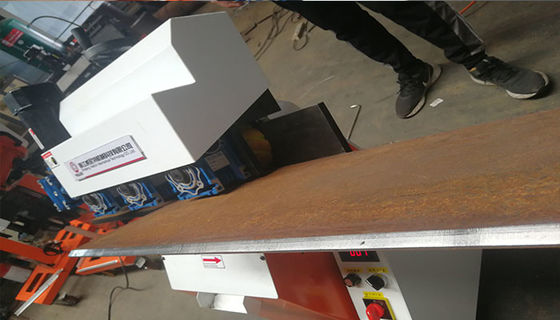

Bevel result show:





40mm Thickness 1440r/Min Plate Edge Beveling Machine 0

40mm Thickness 1440r/Min Plate Edge Beveling Machine 1



Our machines in factory:



40mm Thickness 1440r/Min Plate Edge Beveling Machine 2

40mm Thickness 1440r/Min Plate Edge Beveling Machine 3











Packing:



Packaging: Standard machine will be ready and stabled in a wooden case.

Shipping: Able to support with any shipping method as per customer 's requirements.



Selling Units: Single item
Single package size: 600*700*900mm
Single gross weight: 80.0 KG
Package Type: Wooden Case



40mm Thickness 1440r/Min Plate Edge Beveling Machine 4



Service commitment for after-sales:



1, One year warranty, Life - Long maintenance service.

2, Free installation, debugging operation,maintenance and training for the operation and maintenancepersons by vedio / Tel / Email or engineers visiting in factory.

3, Providing free upgraded available software

40mm Thickness 1440r/Min Plate Edge Beveling Machine 5

RFQ:



Q1.How to send my enquiry?

You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.

Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.

Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.

Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.

Before Order :



*Choose the right Model


*Confirm your electric power supply ( Voltage, frequency and phase)


*Confirm the beveling angel required


*Confirm the welding joint required (U, V, Double V or Compound preparation)


*Advise your pipe material ( Carbon steel, stainless steel or others)


*Other special demands about machine


*The spare parts needed


*If the pipe wall thickness more than 30mm, inform us in advance (Important)
