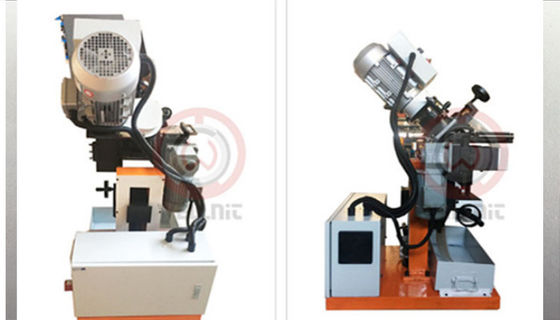

Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine

Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine
Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine
video play

Large Image :  Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-60
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 100 sets for a mounth
Detailed Product Description
Power Offer: 380V 50Hz Operation Way: Electric
Thickness: Less Than 60mm (Standard) Feed Speed: 0-1500r/min
Working WAY: Automatic Feed Fix Method: Side Clamp
Bevel Width: 1-45mm Material: Metal
High Light:

Chamfering Plate Edge Milling Machine

,

60mm Plate Edge Milling Machine

,

45mm Bevel Edge Milling Machine

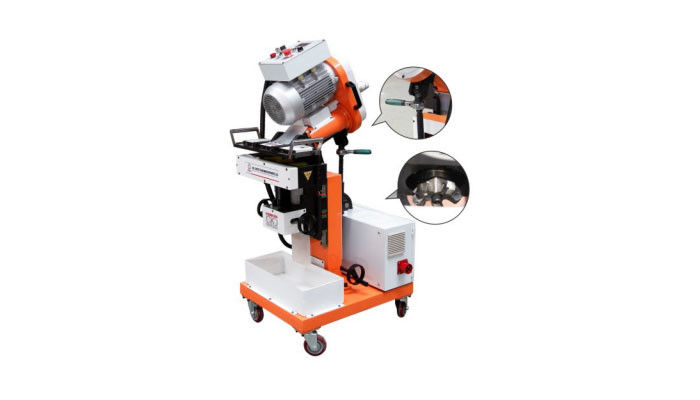

Wellnit PB-60 Beveling & Chamfering Machine For Metal Plate Edge Polishing Self Moving Thickness Up To 60mm




Production Feature:



This Product is an auto feeding milling equipment,processing beveling whilemilling.It could reduce the use of cost and labor intensity.With cold coutting operation the beveling surface without oxidation.The processed surface finish can reach to Ra 3.2~6.3.It fully meet the welding industry reuirements.



1. Machine beveling angle can adjust from 10° to 60°

2. Milling surface reach Ra 3.2-6.3

3. 7 Models with different advantages as per customer's needs.

4.OEM/ODM available as a manufacture with own designing team and developing department.

5. Self-Moving and Cold working

6.High Efficiency milling Cutters with interchangeable Inserts.

7. Small in Size, light in weight

8.Cold milling method does not affect the material property, no oxidation in beveled surface



Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 0





Bevel bits:



Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 1



Machine spare parts:

Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 2





Machine detail parts:

Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 3

Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 4

Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 5

Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 6Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 7




Process Diffferent Material Pipe:

Carbon Steel,Stainless Steel,Alloy And Ohers.

Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 8



Technical Parameter:



Power Supply

AC 380V 50HZ

Total Power

3400w

Spindle Speed

1050r/min(adjustable)

Feed Speed

0-1500r/min(adjustable)

Clamp Thinkness

6-40mm

Clamp Width

>100mm

Processing Length

>300mm

Bevel Angle

10°-60 °

Single Bevel Width

1-15mm

Bevel Width

1-45mm

Cutter Plate

φ40mm

Cutter Qty

6pcs

Workable Height

820-860mm

Travel Space

800*800mm

Net Weight

250kgs

Gross Weight

300kgs

Package Size

770*690*133mm

Non-standard machines are available according to customers’requirement.



Our machines on site:



Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 9







Process Result:

Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 10

Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 11

Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 12









Packing:



Side Clamp Thick 60mm Chamfering Plate Edge Milling Machine 13




Before Order Guide need to learn:

1.How to choose a suitable model?

RE: Before choose the model,we need to know more details about the pipe,such as the I.D,

O.D,wall thickness,the material of the pipe and the enviroment of the site and the requirement of the end face. Then it will be more convient for all of us to make an immediately

decision .Thanks!

2.Do you have another choice about the driven?

RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,

hydraulic and NC.

3. About the type of the beveling?

RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe that our engineer can provide a solution for you.
