6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

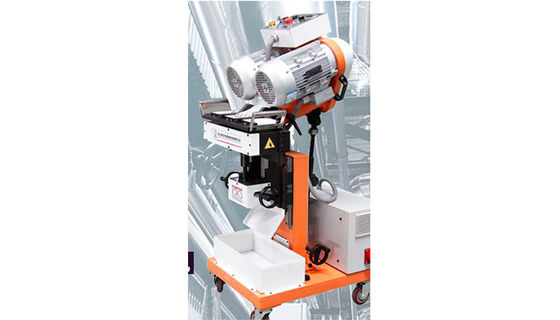

6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger

6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger
6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger
video play

Large Image :  6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-80
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 100 sets for a mounth
Detailed Product Description
Power Offer: 380V 50Hz Operation Way: Electric
Thickness: Less Than 60mm (Standard) Feed Speed: 0-1500r/min
Working WAY: Automatic Feed Fix Method: Side Clamp
Bevel Width: 1-60mm Material: Metal
Power Supply: 6400W
High Light:

1500r/Min Steel Plate Beveling Machine

,

60mm Steel Plate Beveling Machine

,

Side Clamp Beveling Chamfering Machine

Factory Price Beveling & Chamfering Machine For Metal Plate Edge Polishing Self Moving For Thick Plate Wellnit PB-80




Production Feature:



The milling groove slope is large. The processing angle can be adjusted 0-90degree. The maximum plate thickness is 6-80mm and the processing speed is 0-1.4m per minute.Wide range of applicable plate types: applicable to carbon steel, chromium steel, cast iron, stainless steel, hard plastic and other plates.



The processing method is elegant and flexible, and the large and small plates can be easily processed (the machine can walk the groove by itself when processing the super large plate with the plate bracket; the small plate processing machine will keep still and the plate will automatically move for groove processing).Complete cold cutting without changing the original material of the plate.The processing speed can be adjusted freely (equipped with double motors, powerful power).It is easy to operate and easy to use.High safety factor of equipment.



1. Safety lock, Rear feed motor design and independent design of electric box. more sage.

2. OL Protection

3. Digital Display, Easy processing with Operation.

4. Feed adjustable,speed adjustable

5. Angle Adjustable in range

6. Milling surface reach Ra 3.2-6.3

7.Available for V/Y type of Bevel and milling to Vertical.

8.Processing material: Stainless steel, carbon steel,AL Alloy etc.







6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 0





Bevel bits:



6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 1



Machine spare parts:

6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 2





Machine detail parts:

6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 3

6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 4

6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 5

6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 66400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 7







Technical Parameter:



Power Supply

AC 380V 50HZ

Total Power

3400w

Spindle Speed

1050r/min(adjustable)

Feed Speed

0-1500r/min(adjustable)

Clamp Thinkness

6-40mm

Clamp Width

>100mm

Processing Length

>300mm

Bevel Angle

10°-60 °

Single Bevel Width

1-15mm

Bevel Width

1-45mm

Cutter Plate

φ40mm

Cutter Qty

6pcs

Workable Height

820-860mm

Travel Space

800*800mm

Net Weight

250kgs

Gross Weight

300kgs

Package Size

770*690*133mm

Non-standard machines are available according to customers’requirement.

Process Diffferent Material Pipe:

Carbon Steel,Stainless Steel,Alloy And Ohers.

Bevel Angle:

6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 8

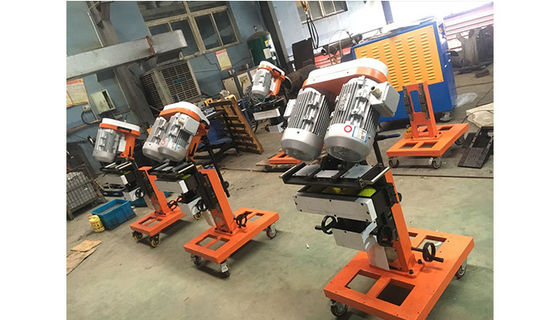

Our machines on site:



6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 9







Process Result:



6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 10

6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 11













Packing:



6400W 60mm Thick 1500r/Min Steel Plate Beveling Machine Powerful With Two Motors More Stronger 12




Before Order Guide need to learn:



Before you place order to us, please let us know the following information:

1. Choose the right Model

2. Confirm your electric power supply ( Voltage, frequency and phase)

3. Confirm the milling angel required

4. Confirm the welding joint required (U,V or others)

5. Advise your processing material ( Carbon steel, stainless steel or others)

6. Other special demands about machine

7. The spare parts needed
