3400W 40mm Plate Edge Milling Machine With 60 Degrees Groove

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

3400W 40mm Plate Edge Milling Machine With 60 Degrees Groove

3400W 40mm Plate Edge Milling Machine With 60 Degrees Groove
3400W 40mm Plate Edge Milling Machine With 60 Degrees Groove 3400W 40mm Plate Edge Milling Machine With 60 Degrees Groove

Large Image :  3400W 40mm Plate Edge Milling Machine With 60 Degrees Groove

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-60
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: Within 7days after we received 100% payment
Payment Terms: T/T
Supply Ability: 35 sets a month
Detailed Product Description
Voltage: AC380V50HZ Total Power: 3400W
Sheet Thickness: 6-40mm Groove Angle: 10-60 Degrees
Warranty Period: 1 Year Machine Net Weight: 250KG
High Light:

3400W Plate Edge Milling Machine

,

40mm Sheet Edge Milling Machine

,

ISO9001 Plate Edge Milling Machine

Automatic walking bevel edge milling machine for steel plate chamfering PB-60



Features:


1. The bevel angle range can be adjusted arbitrarily in the range of 10-60°
2. The rear position of the reducer is conducive to processing narrow plates and is safer
3. Unique separate design of control box and electrical box, making operation safer
4. The groove is milled by the dense-foot milling cutter, the single-chip cutter cuts more lightly, and the surface finish of the processed slope is high, which meets the welding requirements of pressure vessels
5. Small size and light weight, it is a portable automatic walking milling machine and also a portable beveling machine.





Product parameter
Spindle speed 1050r/min Processing steel plate thickness 6-40mm
Cutting speed 0-1500r/min(Arbitrary adjustment) Load the knife at once 6sheet
Single bevel width 1-15mm Bevel angle 10°-60°Adjustable between
Minimum board length 300mm Minimum board width ≥100mm
Height of worktable 820-860mm Bevel width 1-45mm
Machinable material Carbon steel, stainless steel, aluminum alloy, copper, composite board, etc.

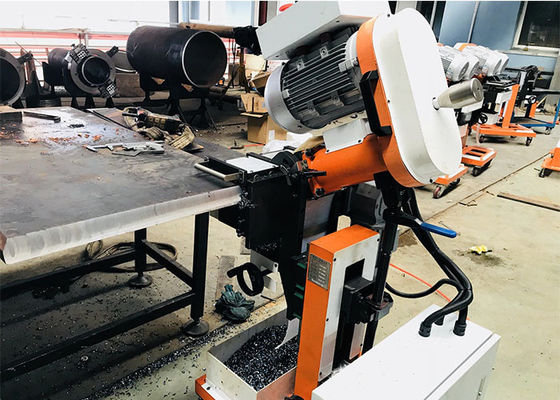

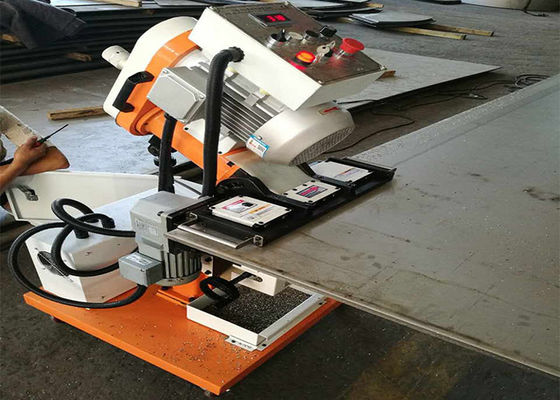

3400W 40mm Plate Edge Milling Machine With 60 Degrees Groove 03400W 40mm Plate Edge Milling Machine With 60 Degrees Groove 1
