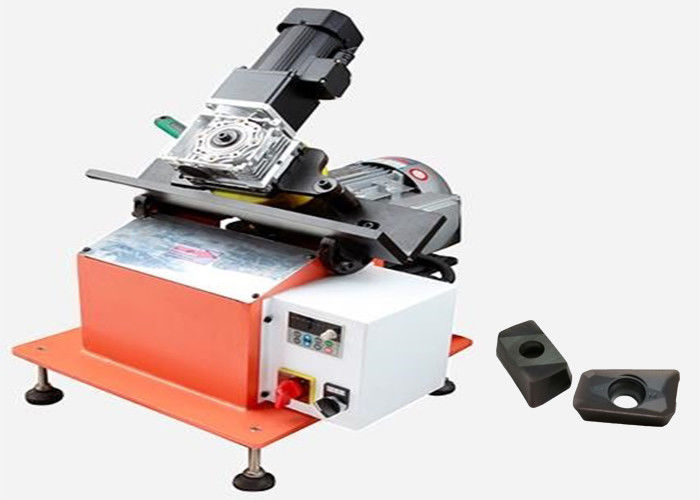

1400r/Min CNC SS Plate Edge Milling Machine Cold Working

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

1400r/Min CNC SS Plate Edge Milling Machine Cold Working

1400r/Min CNC SS Plate Edge Milling Machine Cold Working
1400r/Min CNC SS Plate Edge Milling Machine Cold Working 1400r/Min CNC SS Plate Edge Milling Machine Cold Working 1400r/Min CNC SS Plate Edge Milling Machine Cold Working

Large Image :  1400r/Min CNC SS Plate Edge Milling Machine Cold Working

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-10D
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywood
Delivery Time: Within 7days after we received 100% payment
Payment Terms: T/T
Supply Ability: 30 sets a month
Detailed Product Description
Power Supply Voltage: AC 380V 50Hz Total Power: 2000W
Spindle Speed: 1400r/min Feed Rate: 0-1500mm/min
Bevel Width: 1-18mm Single Bevel Width: 1-10mm
High Light:

1400r/Min Plate Edge Milling Machine

,

Cold Working Plate Edge Milling Machine

,

CNC SS Plate Edge Milling Machine

   Small desktop milling machine 10D automatic traveling steel plate beveling machine small plate chamfering machine



Product features



      This equipment adopts cold-working milling groove method, and the processed bevel surface finish is as high as Ra3.2-6.3. The machine is equipped with imported high-quality milling blades, which is especially suitable for processing high-hardness materials such as stainless steel.







                                                                            Product parameter



Power supply voltage AC 380V 50Hz
Total power 2000W
Spindle speed 1400r/min
Feed rate 0-1500mm/min
Bevel width 1-18mm
Single bevel 1-10mm
Bevel angle 30°, -60°
Clamping steel plate thickness 2-40mm
Clamping steel plate width > 20mm
net weight 80KG



                                                                                       Products Show


 1. CNC display:Adjustable feed speed, numerical control display,More precise adjustment.



  1400r/Min CNC SS Plate Edge Milling Machine Cold Working 0



2.Scale table: refer to the scale table value to accurately adjust the angle.



1400r/Min CNC SS Plate Edge Milling Machine Cold Working 1



3. CNC milling cutter head:12 pieces of coated knife,Simultaneous processing, high efficiency.



  1400r/Min CNC SS Plate Edge Milling Machine Cold Working 2



4.Hand wheel: Rotate the hand wheel, it is more convenient to press the plate.



  1400r/Min CNC SS Plate Edge Milling Machine Cold Working 3



  5.The high-quality motor brings a strong power output bevel, and also provides a finish as high as Ra3.2-6.3 when relaxed.



.1400r/Min CNC SS Plate Edge Milling Machine Cold Working 4



6.Blade: high-quality blade, reliable quality.



1400r/Min CNC SS Plate Edge Milling Machine Cold Working 5



1400r/Min CNC SS Plate Edge Milling Machine Cold Working 6



     Case reference



1400r/Min CNC SS Plate Edge Milling Machine Cold Working 7



1400r/Min CNC SS Plate Edge Milling Machine Cold Working 8



1400r/Min CNC SS Plate Edge Milling Machine Cold Working 9



1400r/Min CNC SS Plate Edge Milling Machine Cold Working 10



1400r/Min CNC SS Plate Edge Milling Machine Cold Working 11
