Product Details:
Payment & Shipping Terms:
|
| Specification Classification: | OCE/OCP-89/168/230/275/305/325/377/426/457/508/560/610/630/660/715/762/830/914/1066/1230/1430 | Processing Outer Diameter: | 25-1430mm |
|---|---|---|---|
| Drive Way: | Electric, Pneumatic , Hydraulic , CNC | Cutting Bevel Wall Thickness: | ≤30 |
| Bevel Form: | U Type, V Type, J Type, Double V Type And Compound Type | Warranty Period: | 1year |
| High Light: | Edge Milling Cutting Beveling Machine,1430mm Cutting Beveling Machine,Hydraulic Pipe Cutting Beveling Machine |
||
Automatic external clamp pipe beveling machine external clamp pipe cutting machine chamfering machine edge milling
Product introduction
The radial headroom is small and light in weight. It is suitable for places with complex environment and small space; it can be
separated in half. This structure is suitable for the situation where there are objects at both ends of the pipe, which are not easy to
disassemble or cannot be disassembled. One-time clamping, cutting and beveling can be completed at the same time. . Equipped
with corresponding accessories, can be used for pipe beveling, boring processing, flange end surface processing, etc. The groove
quality is good, the speed is fast, and the operation is simple.
Product parameter
| Model number | Electric , pneumatic , hydraulic , CNC | |||
| specification | Processing outer diameter(mm) | OD(inch) | Wall thickness of cutting breach | Cutter speed |
| 89 | φ25-89 | 1‘-’3‘’ | ≤30 | 42r/min |
| 168 | φ 50-168 | 2‘’-6‘’ | ≤30 | 18r/min |
| 230 | φ 80-230 | 3‘’-8‘’ | ≤30 | 15r/min |
| 275 | φ 125-275 | 5‘’-10‘’ | ≤30 | 14r/min |
| 305 | φ 150-305 | 6‘’-10‘’ | ≤30 | 13r/min |
| 325 | φ 168-325 | 6‘’-12‘’ | ≤30 | 13r/min |
| 377 | φ 219-377 | 8‘’-14‘’ | ≤30 | 12r/min |
| 426 | φ 273-426 | 10‘’-16‘’ | ≤30 | 12r/min |
| 457 | φ 300-457 | 12‘’-18‘’ | ≤30 | 12r/min |
| 508 | φ 355-508 | 14‘’-20‘’ | ≤30 | 12r/min |
| 560 | φ 400-560 | 16‘’-22‘’ | ≤30 | 12r/min |
| 610 | φ 457-610 | 18‘’-24‘’ | ≤30 | 11r/min |
| 630 | φ 480-630 | 20‘’-24‘’ | ≤30 | 11r/min |
| 660 | φ 508-660 | 20‘’-26‘’ | ≤30 | 11r/min |
| 715 | φ 560-715 | 22‘’-28‘’ | ≤30 | 11r/min |
| 762 | φ 600-762 | 24‘’-30‘’ | ≤30 | 11r/min |
| 830 | φ 660-830 | 26‘’-32‘’ | ≤30 | 10r/min |
| 914 | φ 762-914 | 30‘’-36‘’ | ≤30 | 10r/min |
| 1066 | φ 914-1066 | 36‘-42‘’’ | ≤30 | 10r/min |
| 1230 | φ 1066-1230 | 42‘-48‘’’ | ≤30 | 10r/min |
| 1430 | φ 1230-1430 | 48‘-56‘’’ | ≤30 | 8r/min |
Product features
1.Simple operation:Equipped with new expansion jaws, which can be adjusted arbitrarily according to the size of the tube, without changing the expansion block, the operation is simple and convenient.
2.High efficiency: the machine feeds automatically, one person can operate several machines, saving time and effort, and high efficiency.
3. The cutting bevel is integrated: the machine cuts the bevel at the same time, and the bevel surface has been formed at the same time as the blanking.
4.Multiple drive modes: The machine drive mode can be freely selected (electric, pneumatic, hydraulic, CNC,) to suit different working environments.
5.Cold processing method: adopts low-speed heavy-duty design and cold cutting processing method, which can completely cope with pipeline construction with high thermal influence.
6.Lightweight body: compact body design, small footprint, easy installation and disassembly, especially for limited space operations on construction sites, with outstanding performance.
7.Automatic feed: automatic feed, cut off and bevel processing can be completed in one clamping.
8.The cut slope surface is smooth and burr-free: completely cold cut, does not affect the material, and the slope surface is smooth and burr-free, and the bevel can be directly used for welding.
9.High-quality blades: The machine is equipped with 4 blades, 2 cutting knives, and 2 beveling knives. The cutting tools are of high quality, selected M42 material, high hardness and strong wear resistance.
Processing schematic

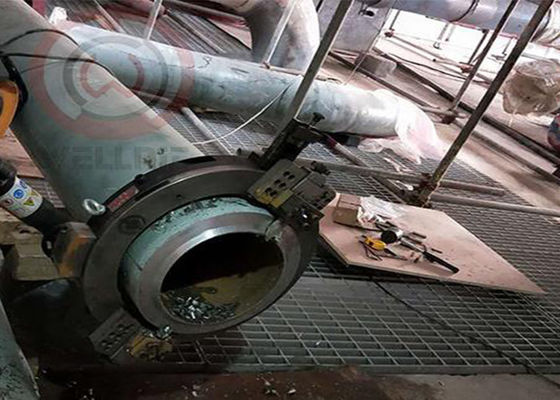

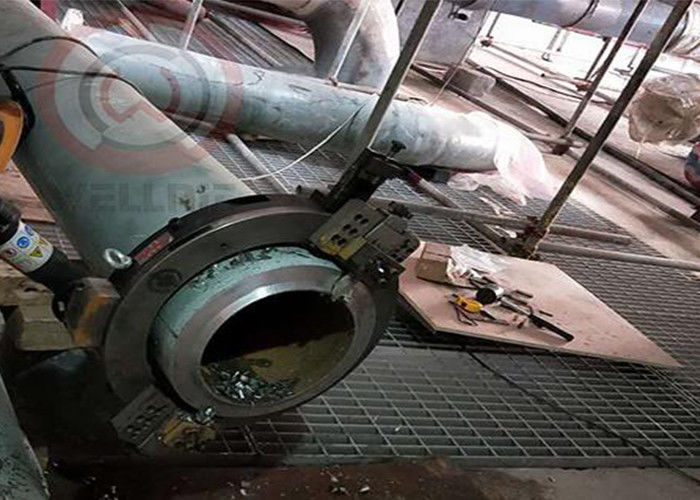

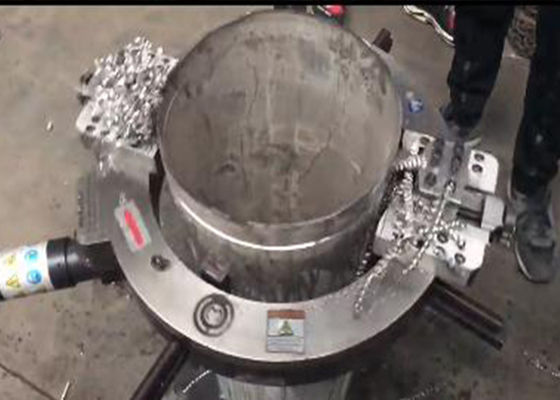

Field case
