6400w Automatic Plate Edge Milling Machine 1500r/Min With 80mm Clamp

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

6400w Automatic Plate Edge Milling Machine 1500r/Min With 80mm Clamp

6400w Automatic Plate Edge Milling Machine 1500r/Min With 80mm Clamp
6400w Automatic Plate Edge Milling Machine 1500r/Min With 80mm Clamp
video play

Large Image :  6400w Automatic Plate Edge Milling Machine 1500r/Min With 80mm Clamp

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PB-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 35 sets a month
Detailed Product Description
Power: AC 380V 50Hz Total: 6400w
Spaindle Speed: 750-1440 R/min Feed Speed: 0-1500r/min(adjustable)
Bevel Width: 1-70mm Single Bevel Width: 1-20mm
Bevel Angle: 0°-60°(adjustable) Clamp Thickness: 6-80mm
High Light:

6400w Plate Edge Milling Machine

,

Plate Edge Milling Machine 1500r/Min

,

80mm Clamp Plate Milling Machine

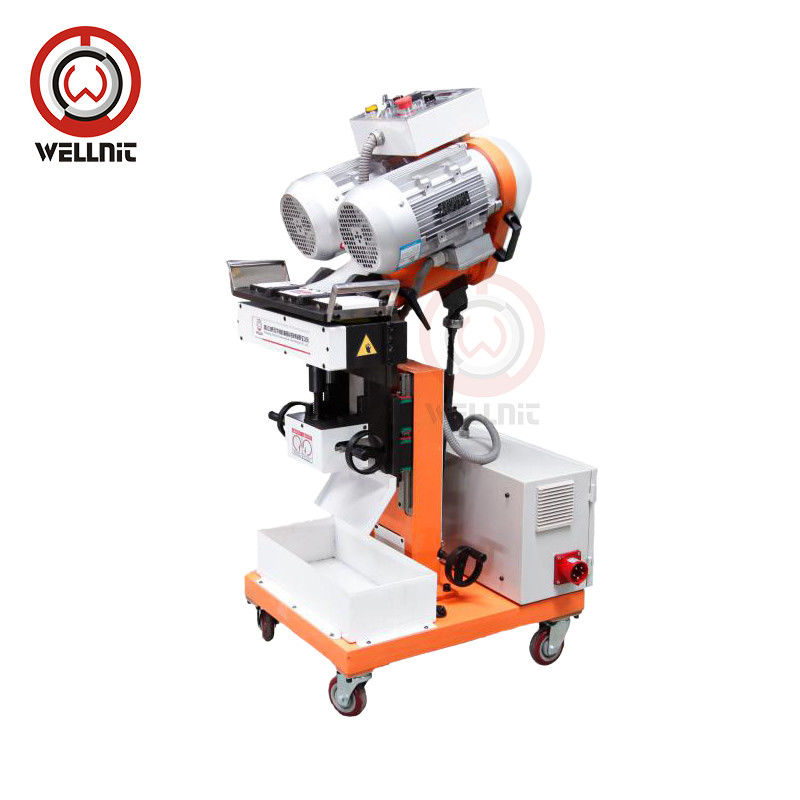

Excellent Performance Automatic Plate Beveling Machine PB-80



Main product performance:

The PB-80 edge milling machine convenient movement and simple operation.

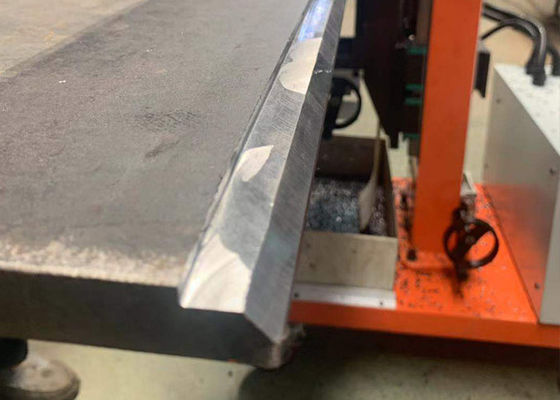

Thefinish of the groove is as high as Ra3.2- -6.3.1t is suitable for small factories.

The millingmachine is equipped with commonly used CNC blades to make the customers use the cost more cheaply.

6400w Automatic Plate Edge Milling Machine 1500r/Min With 80mm Clamp 0

6400w Automatic Plate Edge Milling Machine 1500r/Min With 80mm Clamp 16400w Automatic Plate Edge Milling Machine 1500r/Min With 80mm Clamp 2





Main Features:


1. Cold processed, No sparks, Will not affect the material of plate.
2. Double motors, Stronger Power
3. Double frequency conversion speed regulation, both spindle and feed speed are adjustable
4. Automatic feed, Automatic marching, high efficiency, one person can operate multiple devices at the same time
5. Smooth slope, surface finish can be as high as Ra3.2- Ra6.3
6. Numerical control display screen, simple operation, Bevel speed can be adjustable,high precision
7. Equipped with CNC blades, Low consumables
8. Bevel Type:V, Y, K, X etc.
9. Can process carbon steel, stainless steel, alloy steel, titanium, and composite plates etc



6400w Automatic Plate Edge Milling Machine 1500r/Min With 80mm Clamp 3

6400w Automatic Plate Edge Milling Machine 1500r/Min With 80mm Clamp 4

6400w Automatic Plate Edge Milling Machine 1500r/Min With 80mm Clamp 5
