Product Details:
Payment & Shipping Terms:
|
Thickness: | 1-15mm | Angle: | 30-60degree |
---|---|---|---|
Driven: | Electric | Package: | Wooden Case |
Bevel Width: | 1-15mm | Voltage: | 380V/220V |
High Light: | Portable Welding Plate Milling Machine,Electric Plate Edge Milling Machine,Beveling Chamfering Plate Milling Machine |
Specification

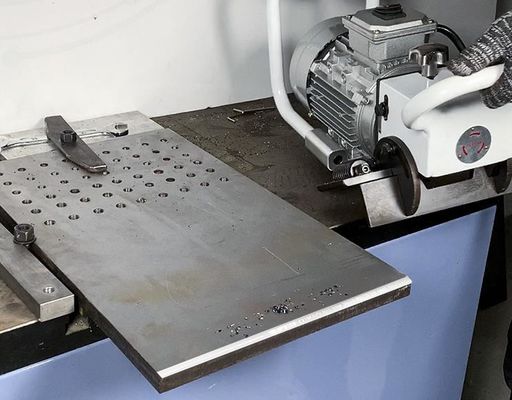

The Machine bevel the steel, plate, stainless steel and aluminum automatically, which have big difference with milling machine in the market. We provide customer stable products.

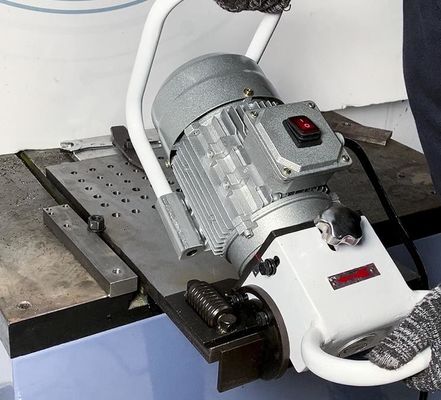

The PBM-15 type milling machine:
1. Cold Beveling, do not change the plate material
2. Angle adiust from 30-60degree. Plate max thickness is 15mm
3. Light Weight, Easy to operate.
Power Supply | AC 380V 50HZ | Bevel Width | 1-15mm |
Total Power | 1100W | Cutter Qty | 12Pcs |
Clamp Thickness | No limited | Rotation | 2870r/min |
Net Weight | 16Kgs | Bevel Angle | 30-60deg |
Porcess Material |
CS,SS,Aluminum, compound and ohters |
Gross Weight | 150Kgs |
Product Show
