Product Details:
Payment & Shipping Terms:
|
Application: | Metal Pipe Cutter Bevel | Waranty: | 12 Months(MACHINE) |
---|---|---|---|
Pipe Process Thickness: | Up To 110mm | Operation Type: | Pneumatic,Electric,Hydraulic Power Pack |
Power: | 1.5-2KW,220-240V/0.8-1.0Mpa,1000-2000L/Min | Weight:: | 43-140KGS,Depand |
Body Material: | Aluminum /CS | ||
High Light: | Automatic Pipe Cutting Beveling Machine,Portable Bevel Machine Torch,Cold Torch Beveling Machine |
Steel Pipe Cutting and Beveling Machine

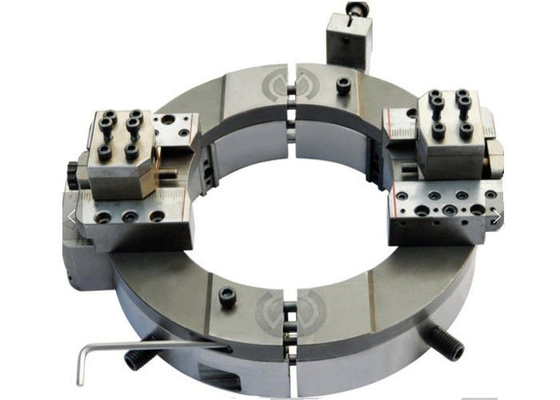

Production Show
Production Description
The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe.
Features:
1.Cold Cutting and Beveling improves safety
2.Cutting and Beveling simultaneous
3.Split Frame: easy mounted on pipeline
4.Tools feed automatically
5.Fast, Precision, On-site Beveling
6.Minimal Axial and Radial clearance
7.Light weight and compact design
8.Easy set-up & Operation
9.Electric or Pneumatic or Hydraulic driven
10.Light Weight, convenient carry, suitable for onsite pipelines and rush repair working.
11.Low clearance, stick to the pipes, high security.
12.Simple and compact frame, reduce 40% work pieces compared with products with the same function.
13.Power function, used for cutting and beveling at the same time.
14.High intensity, long serivice life, high procedd precision.
15.Simple pipe clamp, just one size wrench for adjustment.
16. Various Driving type, suitable for diffenent working place and process requirement.
17.Adjusting bearings and strengthen bearings, make sure the reliability and capability.
18.Poseesing the whole accessories procrssing satndardbeveling types, complex beveling, thick wall thickness.

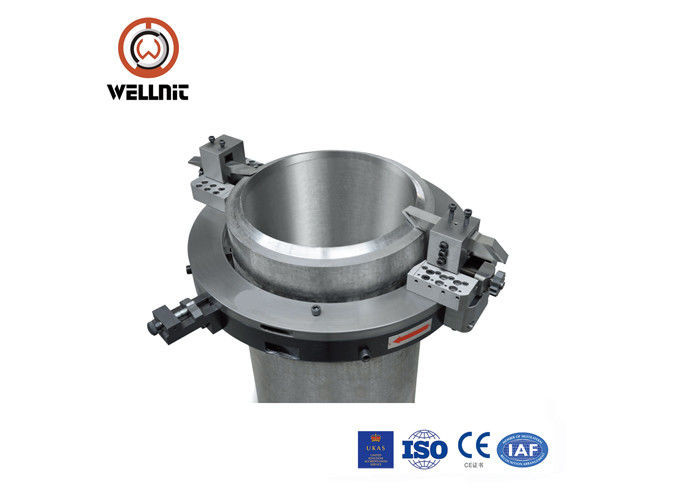

Actual Production:
Main characteristic:
Pneumatic Pipe / Tube Cutting and Beveling Machine adopts pneumatical motor to drive, there is 0.9mPa source of the gas can work; Moderated by the planet gear decelerator, and drive rotates the knife rest on the round ring; Can automatic feed, adjustable speed; Put and insert once, can cut and slop at the same time, the precision is high, it is easy to be used in cruelly, the dangerous homework place, it is safe and reliable.The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe.
Equipment selection:
Standard Portable split frame pipe cutting and beveling machine
Product parameter:
Driven | Specification | Working Range(ID-OD) | Wall Thickness | Rotation Speed | ||
Millimeter | Inch | Normal | Heavy-Duty | |||
Electric (OCE) Pneumatic (OCP) Hydraulic (OCH) |
89 | 25-89 | 1"-3" | <=30 | - | 42r/min |
159 | 50-159 | 2"-5" | - | 20r/min | ||
168 | 50-168 | 2"-6" | - | 18r/min | ||
230 | 80-230 | 3"-8" | - | 15r/min | ||
275 | 125-275 | 5"-10" | - | 14r/min | ||
305 | 150-305 | 6"-10" | <=110 | 13r/min | ||
325 | 168-325 | 6"-12" | 13r/min | |||
377 | 219-377 | 8"-14" | 12r/min | |||
426 | 273-426 | 10"-16" | 12r/min | |||
457 | 300-457 | 12"-18" | 12r/min | |||
508 | 355-508 | 14"-20" | 12r/min | |||
560 | 400-560 | 16"-22" | 12r/min | |||
610 | 457-610 | 18"-24" | 11r/min | |||
630 | 480-630 | 20"-24" | 11r/min | |||
660 | 508-660 | 20"-26" | 11r/min | |||
715 | 560-715 | 22"-28" | 11r/min | |||
762 | 600-762 | 24"-30" | 11r/min | |||
830 | 660-813 | 26"-32" | 10r/min | |||
914 | 762-914 | 30"-36" | 10r/min | |||
1066 | 914-1066 | 36"-42" | 10r/min | |||
1230 | 1066-1230 | 42"-48" | 10r/min | |||
1430 | 1230-1430 | 48"-56" | 8r/min |
We can design and manufacture according to customer's requirement
Machine body structure and material:
1. Standard Model: Alloy steel with ionic nitriding treatment, the weight is a bit heavy but solid and durable;
2. Light Model: Aerospace grade aluminum alloy. Light weight and suitable for high-altitude operation.
Order Guide
Before you place order to us, please let us know the following information:
