Carbon Steel Portable Plate Beveling Machine Electric Hand Held Plate Beveler

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

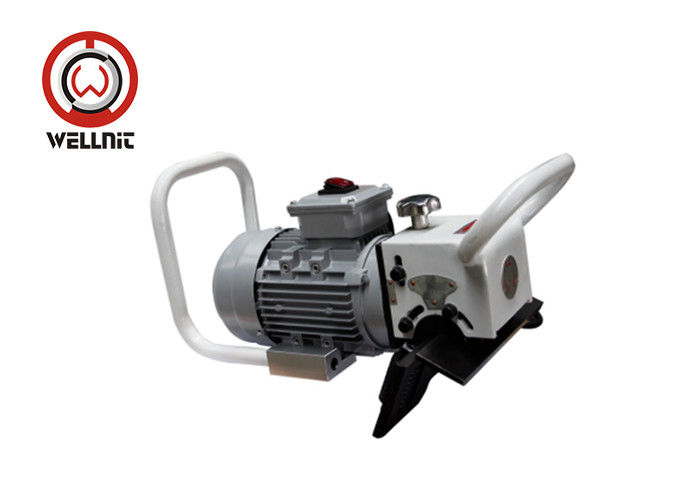

Carbon Steel Portable Plate Beveling Machine Electric Hand Held Plate Beveler

Carbon Steel Portable Plate Beveling Machine Electric Hand Held Plate Beveler
Carbon Steel Portable Plate Beveling Machine Electric Hand Held Plate Beveler Carbon Steel Portable Plate Beveling Machine Electric Hand Held Plate Beveler Carbon Steel Portable Plate Beveling Machine Electric Hand Held Plate Beveler

Large Image :  Carbon Steel Portable Plate Beveling Machine Electric Hand Held Plate Beveler

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PBM-15
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywooden
Delivery Time: Within 7days after we received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets a month
Detailed Product Description
Driven: Electric Carry: Portable
Material: Carbon Steel,Stainless Steel,etc Voltage: 380V
Power: 1.1KW Rotation Speed: 2870r/min
Weight: 18Kg
High Light:

plate chamfering machine

,

edge chamfering machine



Carbon Steel Portable Plate Beveling Machine



Electric Hand Held Plate Beveler





Plate beveling machine is a kind of professional machine that cuts the beveling in the places where the



workpiece needs to be welded before welding in order to guarantee the welding quality in the welding



manufacturing process. Plate beveling machine and plate beveling machine mainly carry out beveling for



the plate, and part of the beveling machine can attach the beveling function of pipe fitting. It is a kind of



welding and cutting auxiliary equipment widely used in ship, metallurgy, steel structure etc.



Plate beveling machine is a kind of beveling machine, which is used for deburring and beveling of metal



sheet before welding. Applicable to steel, cast iron, hard plastic, non-ferrous metals and other materials!



Beveling machine is a special tool for pipe or plate to chamfer beveling on the end face before welding. It



has solved the problems of irregular Angle, rough slope and loud working noise in operation process such



as flame cutting and polishing machine grinding. It has the advantages of simple operation, standard



Angle and smooth surface



Electric groove machine is a convenient and nimble import groove equipment, products using the knife



dish electric rolling washing power to drive machines follow plate moving works, so as to greatly improve



the performance of application of the electric groove machine solves the common equipment imported



electric groove stand with production area, and the problems of inefficient, is a very practical electric



groove machine.









Product function



1. This machine mainly used for metal processing,widely used on



vessal,shipyard,boiler manufacturing industry;



2. Can replace flame or electric arc cutting heating processing and processing by



hand;



3. It has a irreplaceable advantage when the work piece is in-disassembling or large-



size or beveling non ferrous metal;



4. Light weight,convenient to carry,compact stucture,reliable performance,high



precision groove;



5. Compared with manual griding machine,efficiency is improved by 30-50 times;



6. Simple operation,safety and reliability;



7. Applicable for maintance industry.



Main performance of the product





     PBM-15 groove machine is specially designed for plate groove and chamfer, and



it is a hand-propelled groove processing tool. It is suitable for chamfering metal



plate and groove processing before welding. Light weight (compared with similar



products), small vibration, easy to operate, safe and reliable.





Carbon Steel Portable Plate Beveling Machine Electric Hand Held Plate Beveler 0





Technical characteristics



  (1) The chamfer surface is smooth, flat, without oxidation layer, easy to weld.



  (2) Meet K,V,X and Y welding joints.



  (3) Applicable to steel plate, cast iron, hard plastic, and can be processed for



        chromium steel and other high strength materials.



Notes for use:


1. Before using, check whether the electrical insulation is good and the ground is reliable. When using,



wear insulating gloves, insulating shoes or insulating pads.


2. Before cutting, check whether the rotating part is abnormal, whether the lubrication is good, and point



vehicle test before cutting.


3. Work in the furnace must be carried out by two people working together.


4. During cutting, the workpiece should be tightened. In the work must be in the iron plate in the middle of



the knife, cutting feed to increase, but not more than 2 mm.



5. Cut off the power after use.



Technical Parameter





PBM-15
Voltage 380V
Frequency 50Hz
Power 1100W
Beveling Angle 30°-60°
Milling Width 1-15mm
Speed 2870r/min
Net Weight 18kg
