Home ProductsPortable Plate Beveling Machine

Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine

Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine
Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine
video play

Large Image :  Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PBM-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Plywood Box
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 10set / month
Detailed Product Description
Total Power: 1100W Voltage: AC 3PH 380V 50Hz
Machine Dimension: 485*405*290mm Warranty: 1 Year
Bevel Angle: 30°;37.5°;45° Bevel Width: 1-15mm
High Light:

Steel Plate Portable Beveling Machine

,

Adjustable Angle Portable Beveling Machine

,

Flat Milling Portable Beveling Machine

Steel plate beveling machine Portable plate beveling machine Fast cutting speed and adjustable angle Can process pipes









Product Introduction



1 Portable steel plate beveling machine, hand-cranked travel-type bevel processing and forming, convenient for outdoor or closed field operations;
2 Satisfy the processing of K, V, X, Y grooves;
3 Using roller milling cutter head, smooth groove, no oxide layer, can be welded directly without grinding;
4 The electrical switch is convenient, with overload protection, the motor is durable, the debris does not splash, and it is safe and reliable.





product information

 PBM-20

Voltage AC 3PH 380V 50Hz Bevel Width 1-15mm
Total Power 1100W Tool Bit Qty  4PCS
Clamp Thickness 5-15mm Net Weight  25kg
Bevel Angle   30° ;37.5° ; 45° Gross Weight 30kg
Rotation Speed 2000r/min Machine Dimension  485*405*290mm
 pipe Min ID Size 133mm Processing materials Carbon Steel ,Stainless Steel ,Aluminum alloy, Composite Plate



Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine 0

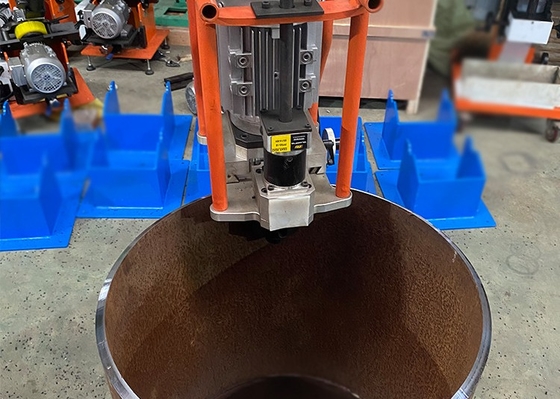

Products Show



Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine 1



Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine 2

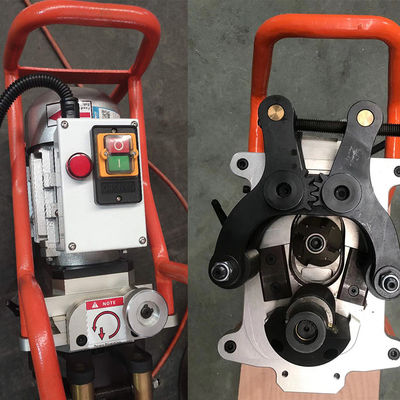

Product acessories

Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine 3

Carbide, good quality.



Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine 4

Cutter head, fixed angle and high accuracy.



Engineering case



Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine 5



Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine 6



Steel Plate Portable Beveling Machine Adjustable Angle Flat Milling Machine 7
