OD Mounted Electric Pipe Cutting And Beveling Machine Minimal Axial Smooth Cutting

OD Mounted Electric Pipe Cutting And Beveling Machine Minimal Axial Smooth Cutting
OD Mounted Electric Pipe Cutting And Beveling Machine Minimal Axial Smooth Cutting OD Mounted Electric Pipe Cutting And Beveling Machine Minimal Axial Smooth Cutting OD Mounted Electric Pipe Cutting And Beveling Machine Minimal Axial Smooth Cutting

Large Image :  OD Mounted Electric Pipe Cutting And Beveling Machine Minimal Axial Smooth Cutting

Product Details:
Place of Origin: ZHEJIANG,CHINA
Brand Name: Wellnit
Certification: CE,ISO
Model Number: OCE-89
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 3-7 days
Supply Ability: 50 sets month
Detailed Product Description
Voltage: 220-240V Rated Power: 1.5KW
Dimension(L*W*H): 560*510*270mm Weight: 30KG
Pipe Thickness: ≤30mm Working Range(ID-OD): 25-89mm(1"3")
Rotation Speed: 42r/min Driven: Electric Motor
High Light:

pipe cold cutting tools

,

cold cutting equipment

OD Mounted Electric Pipe Cutting And Beveling Machine Minimal Axial Smooth Cutting










16 models, working range for pipe OD 1"-48"


Non-standard model can be customized


Out-mounted style, clamping by multipoint jaws.


Split frame technology, easy to install on the pipeline.


Cold cutting and beveling, don't influence the pipe's material.


Auto feed, cutting and beveling at the one time, cost effective.


Varity of beveling shape: "U", "V", "Y", J", double "V", compound bevels.


Stationary ring is steel; rotation ring is aluminum, and steel optional


Electric, pneumatic, numerical control and hydraulic drive options are available.


Several different drive options are available to best position, the motor for a specific machining application.


It can be equipped a wide range of accessories to increase performance and expand

Capability


Pipe cut off


Pipe end beveling


Pipe facing


Cutting and beveling


Compound beveling


Counter boring


Flange facing


Grooving



Features:



1. Cold Cutting and Beveling improves safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Tools feed automatically.



5. Fast, Precision, On-site Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and compact design.



8. Easy set-up & Operation.



Capability


Pipe cut off


Pipe end beveling


Pipe facing


Cutting and beveling


Compound beveling


Counter boring


Flange facing


Grooving



Industry Application:


It is widely used in long-distance transport pipeline, power plant, nuclear power, petroleum, chemical



engineering, natural gas, boiler shop, pharmacy, pipe prefabrication plant, pipeline installation engineering,



rush-repair work, etc.

Bevel Type


We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.



Processing range can be customized according to requirements



Accessories:


Ring sets,It is provided for the users who have drive motors and tool slides to economically expand the



application range of SFM products.


SFM tool slides (select one)


A.Thick-wall tool slide (conventional): It can be applied to SFM models 206 to 4248 with stroke of 64 mm;


B.Spring tool slide: It is used to track the surface of out-of-round pipes, which can greatly save installation,



adjustment and cutting time. It can quickly and automatically track the system to ensure continuous



truncated edge, and can even keep standard wall thickness of large diameter counterbore when combined



with counterbore slide.


C.Drilling and milling tool slide (only for hydraulic): Achieve pipe cutting by using the drilling and milling.



High-strength tool slide, smooth cutting and simple operation.

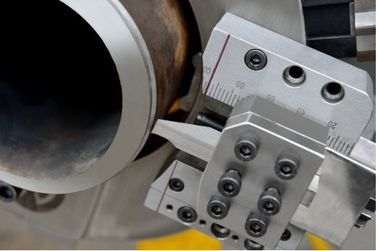

OD Mounted Electric Pipe Cutting And Beveling Machine Minimal Axial Smooth Cutting 0

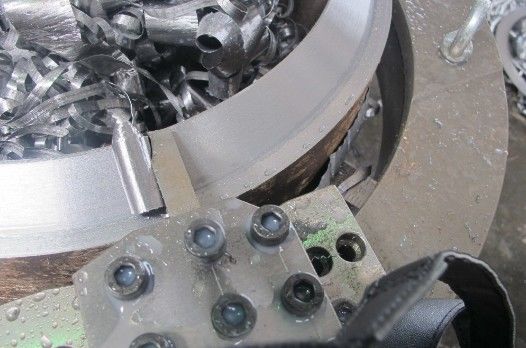

OD Mounted Electric Pipe Cutting And Beveling Machine Minimal Axial Smooth Cutting 1





Drive mode

Pneumatic

Air requirements



1.7m3/min-6.2bars


(65ft3/min-90psi)



Hydraulic



Hydraulic

requirements





31l/min-104bars
(8gal/min-1500psi)





Electric





Electric requirements





220V/AC





Feed method





Star wheel system





Feed rate





Fixed 0.08mm per trip





Finish





Anodizing sand blasting Packaging Aluminum alloy packing case



The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore



and flange facing operations, as well as weld end preparation on open ended pipe,



Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall



thicknesses and material.





Order guide:



Choose the right Model



1. Confirm your electric power supply ( Voltage, frequency and phase).



2. Confirm the beveling angel required.



3. Confirm the welding joint required (U, V, Double V or Compound preparation).



4. Advise your pipe material ( Carbon steel, stainless steel or others).



5. Other special demands about machine.



A. The spare parts needed.



B. If the pipe wall thickness more than 30mm, inform us in advance (Important)!
