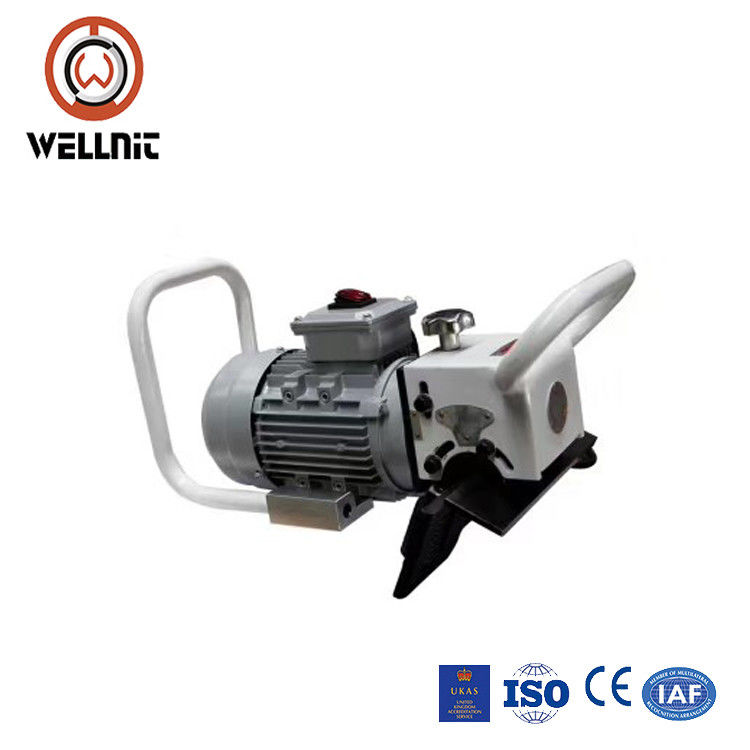

Electric Driven Portable Plate Chamfering Machine Bevel Angle Can Adjustable

Electric Driven Portable Plate Chamfering Machine Bevel Angle Can Adjustable
Electric Driven Portable Plate Chamfering Machine Bevel Angle Can Adjustable Electric Driven Portable Plate Chamfering Machine Bevel Angle Can Adjustable Electric Driven Portable Plate Chamfering Machine Bevel Angle Can Adjustable Electric Driven Portable Plate Chamfering Machine Bevel Angle Can Adjustable

Large Image :  Electric Driven Portable Plate Chamfering Machine Bevel Angle Can Adjustable

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: PBM-15
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Plywooden
Delivery Time: Within 7days after we received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets a month
Detailed Product Description
Driven: Electric Bevel Angle: 30°-60°
Power: 1.1KW Voltage: 380V
Material: Carbon Steel,Stainless Steel,etc Speed: 2870r/min
High Light:

plate edge beveling machine

,

edge chamfering machine



Electric Driven Portable Plate Chamfering Machine



Bevel Angle Can Adjustable



Main performance of the product



This product is specially designed for plate groove, and is a portable groove processing equipment.



Suitable for chamfering and beveling metal sheet before welding. Its weight



Light (and similar products than) small vibration easy to operate, safe and reliable.



 PBM-15 groove machine is specially designed for plate groove and



chamfer, and it is a hand-propelled groove processing tool. It is suitable for



chamfering metal plate and groove processing before welding. Light weight



(compared with similar products), small vibration, easy to operate, safe



and reliable.Suitable for batch processing of small workpieces, mold, die chamfering processing, metal



plate processing, machinery and equipment manufacturing. Widely used in steel, steel structure, mold,



die, metal processing, metal parts manufacturing and other industries.



Mold, machinery manufacturing industry good helper



Technical Parameter





Voltage Frequency Power Beveling Angle

Milling

Width

Speed

Net

Weight

380V 50Hz 1100W 30°-60° 1-15mm 2870r/min 18kg





Mechanical features of portable flat beveling machine


1. This machine is suitable for large workpieces without thermal treatment, such as chamfering of various



moulds and mechanical parts. Precise chamfer finish;


2. Aluminum, iron and metal parts of any length can be easily chamfered;


3. Place the slide rail against the work piece during operation and cut in the direction indicated by the



arrow;


4. Square edge tungsten steel blade 12.7x3.18 is easy to replace;


5. The slide rail adopts high-quality die steel after heat treatment, which is durable.


Simple operation, regular chamfer, convenient adjustment, economical and reliable, the efficiency is 10 ~



15 times of the traditional equipment.







Electric Driven Portable Plate Chamfering Machine Bevel Angle Can Adjustable 0





Technical characteristics



1. The chamfer surface is smooth, flat, without oxidation layer, easy to



weld.



 2. Meet K,V,X and Y welding joints.



3. Applicable to steel plate, cast iron, hard plastic, and can be processed for



 chromium steel and other high strength materials.
