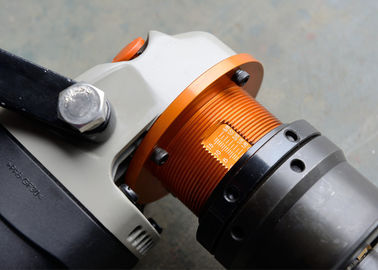

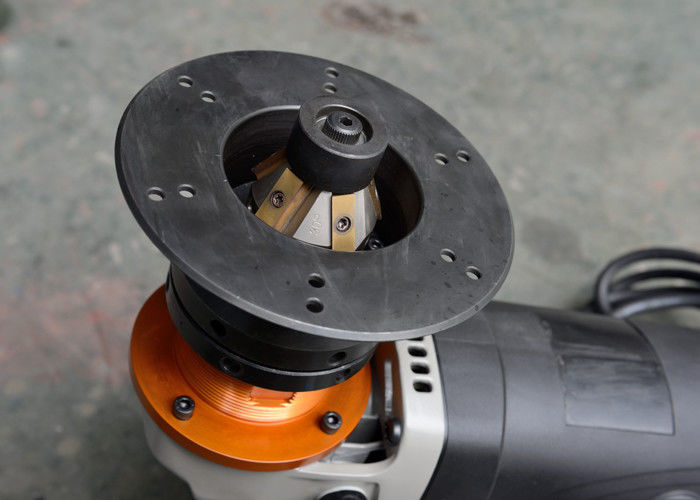

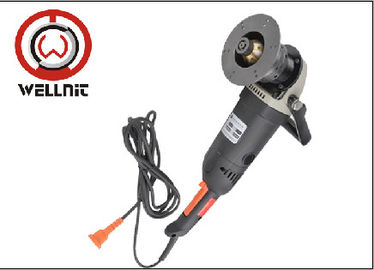

Multifunctional Manual Portable Plate Beveling Machine 2500 - 7500 R/min

Multifunctional Manual Portable Plate Beveling Machine 2500 - 7500 R/min
Multifunctional Manual Portable Plate Beveling Machine 2500 - 7500 R/min Multifunctional Manual Portable Plate Beveling Machine 2500 - 7500 R/min Multifunctional Manual Portable Plate Beveling Machine 2500 - 7500 R/min

Large Image :  Multifunctional Manual Portable Plate Beveling Machine 2500 - 7500 R/min

Product Details:
Place of Origin: China
Brand Name: wellnit
Certification: ISO9001
Model Number: PB-15
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Contact Now
Detailed Product Description
Voltage: 220-240V Power: 2450W
Rotation: 2500-7500r/min Beveling Angle: 20°-60°(standard30°)
Beveling Width: 1-15mm Weight: 8.5kg
High Light:

plate chamfering machine

,

edge chamfering machine


Multifunctional Manual Portable Plate Beveling

Machine 2500 - 7500 R/min


product function

The multi-function beveling machine is also called portable multi-function tube-sheet beveling

machine,

which belongs to the type of steel plate beveling machine and is used in the deburring and beveling of

metal sheet before welding. Applicable to steel, cast iron, hard plastic, non-ferrous metals and other

materials! Beveling machine is a special tool for pipe or plate to chamfer beveling on the end face before

welding. It has solved the problems of irregular Angle, rough slope and loud working noise in operation

process such as flame cutting and polishing machine grinding. It has the advantages of simple operation,

standard Angle and smooth surface. There are many kinds of beveling machines and tools, which is an

advanced tool for professional installation and maintenance of power, petroleum, chemical industry,

shipbuilding, steel structure and other industries



PB-15


Voltage


220-240V


power


2450W


Rotation


2500-7500 r/min


Beveling angle


20°-60°(standard 30°)


Beveling Width


1-15mm(Q235)


Security


Soft start


Tool Bit Qty


4/5


Weight


8.5Kg


use

High-temperature cutting: it is mainly convenient for customers, and customers with low requirements for

groove quality at the same time will have physical changes to groove material after high-temperature

treatment. Generally, users with high requirements are not recommended to choose.

Physical cutting: for customers who require high quality of groove and have large amount of groove, the

groove will not be changed by physical cutting.

The physical cutting machine is emphasized. Steel plate beveling machine or plate beveling machine are

mainly used for cutting





Multifunctional Manual Portable Plate Beveling Machine 2500 - 7500 R/min 0



Main performance of the product

     PB-15 multifunctional  groove  machine is suitable  for processing before welding  groove  (can be

processing  into  K,V,X,Ytype groove),can be carried  out  on  the plate  groove processing and metal

materials burring  ,etc.lts wersatility  and flexibility  and  can be a lot of improve  the efficiency of work  and

make it become  the attrcetive device  ,the machine  structure is compact ,to where the environment is

complex and difficult to machining operations.


 Multifunctional Manual Portable Plate Beveling Machine 2500 - 7500 R/min 1

The characteristics of

Large power of industrial motor, temperature rise protection, electronic speed control, b-grade insulation

fan self-cooling, low vibration resistance at high temperature;

The carbide-4 blade can be used for many times and can process various materials.

Easy to carry, safe operation, simple adjustment and automatic chip discharge.





Tag:

plate chamfering machine,

plate edge beveling machine,

edge chamfering machine
