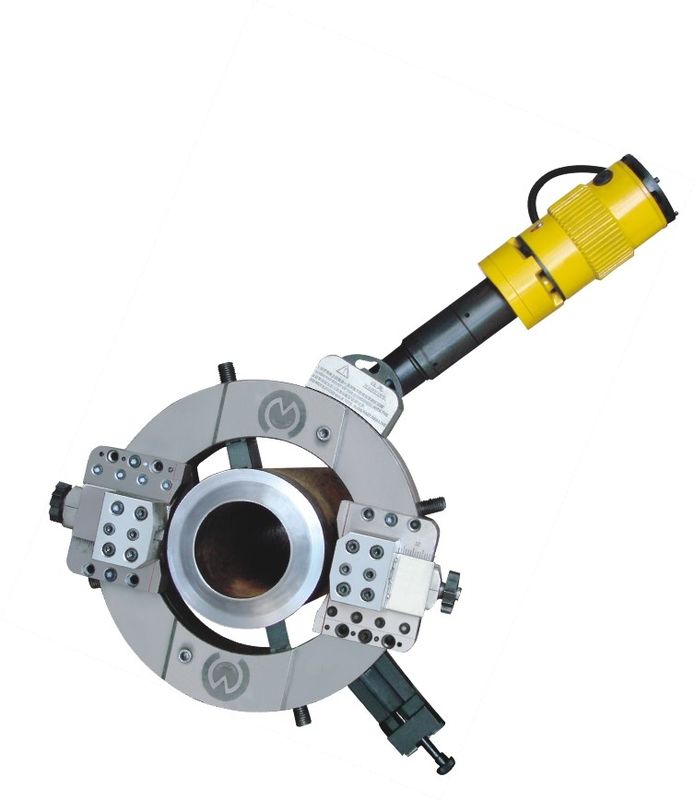

Electric Driven Clamshell Split Frame Machine , Pipe Cold Cutting Tools

Electric Driven Clamshell Split Frame Machine , Pipe Cold Cutting Tools
Electric Driven Clamshell Split Frame Machine , Pipe Cold Cutting Tools Electric Driven Clamshell Split Frame Machine , Pipe Cold Cutting Tools Electric Driven Clamshell Split Frame Machine , Pipe Cold Cutting Tools

Large Image :  Electric Driven Clamshell Split Frame Machine , Pipe Cold Cutting Tools

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE
Model Number: OCE-159
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets month
Detailed Product Description
Voltage: 220V Rated Power: 1.5-2KW
Weight: 42 Warranty: 1 Year
Working Range: 50-159mm Rotation Speed: 20r/min
Cutting Material: Carbon,stainless,alloy
High Light:

pipe cold cutting tools

,

cold cutting equipment

Electric Driven Clamshell Split Frame Machine , Pipe Cold Cutting Tools





The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and



flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56



inches O.D.(DN20-1400), on most wall thicknesses and material.



Model Working Range (ID-OD) Wall Thickness Rotation Speed Air pressure Air Consumption
OCP-89 Φ25-89 3/4''-3'' ≤35 50r/min 0.6MPa 1500 L/min
OCP-159 Φ50-159 2''-5'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-168 Φ50-168 2''-6'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-230 Φ80-230 3''-8'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-275 Φ125-275 5''-10'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-305 Φ150-305 6''-10'' ≤35 18r/min 0.6MPa 1500 L/min
OCP-325 Φ168-325 6''-12'' ≤35 16r/min 0.6MPa 1500 L/min
OCP-377 Φ219-377 8''-14'' ≤35 13r/min 0.6MPa 1500 L/min
OCP-426 Φ273-426 10''-16'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-457 Φ300-457 12''-18'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-508 Φ355-508 14''-20'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-560 Φ400-506 16''-22'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-610 Φ457-610 18''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-630 Φ480-630 20''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-660 Φ508-660 20''-26'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-715 Φ560-715 22''-28'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-762 Φ600-762 24''-30'' ≤35 11r/min 0.8MPa 2000 L/min
OCP-830 Φ660-813 26''-32'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-914 Φ762-914 30''-36'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-1066 Φ914-1066 36''-42'' ≤35 9r/min 0.8MPa 2000 L/min
OCP-1230 Φ1066-1230 42''-48'' ≤35 8r/min 0.8MPa 2000 L/min





Main Features:



1. Lower axial and radial clearance.

2. Cold cutting and beveling,No spark.

3. Easy set-up &Robust operation.

4. Process carbon steel ,stainless steel ,alloy etc with U,V,J compound bevel.

5. Widely used in the fields of petroleum,chemical,natural gas,food ,boiler,medicine,



power supply construction and nuclear power.



It is widely used in long-distance transport pipeline, power plant, nuclear power, petroleum,



chemical engineering, natural gas, boiler shop, pharmacy, pipe prefabrication plant, pipeline



installation engineering, rush-repair work, etc.



Machine Pipe cutting and beveling machine 1PC
Drive Mode Pneumatic Motor 1PC
Components Aluminum alloy/wooden packing case 1PC
  Cutter holder 1PC
  Cutting blade 1PC
Tools Rubber hammer, Spray bottle, Square, Wrench set 1SET
Documents Operating manual, SFM 1PC
  Certificate of conformity, SFM 1PC
  U-disk 1PC





Model working range(ID-OD) wall thickness rotation speed
OCE-159

Φ50-159(2”-5”)

≤30mm

21r/min
