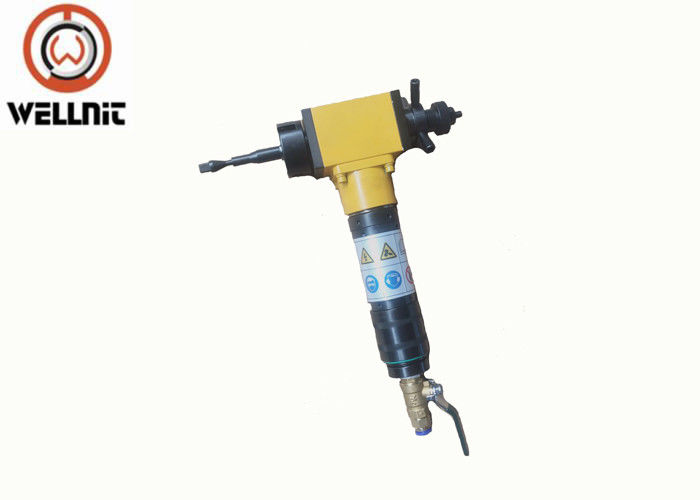

Self Centering Portable Pneumatic Pipe Beveler Pneumatic Pipe Bevelling Machine

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.

Features:

• In-Situ cold Beveling improves safety
• Easy installation & Operation
• Self-Centering
• Feed ratchet spanner makes tool feed or back easily
• Compact design & Light weight
• Electric/ Pneumatic driven for option
• Adjust Speed
• Drive Options: Pneumatic, Electric
• Air requirement: 900L-1200L/Min 0.6Mpa
• Electric requirement: 220-240V 1PH 50/60HZ
• Feed mode: Feed spanner, manually

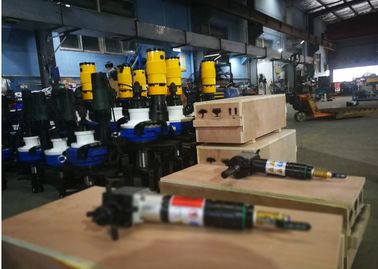

• Packaging: Plywood case

Non-standard machines are available according to customers’requirement.

Technical characteristics

• Lighter weight,minimal radial space,Easy to operate.
• A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
• Driveing Type:Electric-ISE,Pneumatic-ISP.
• Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
• Angle:Beveling angle as per your required.


•
