Internal Clamp Pipe Chamfering Machine 20mm Site Tool Cutter Beveler

Internal Clamp Pipe Chamfering Machine On site Tool Cutter Beveler

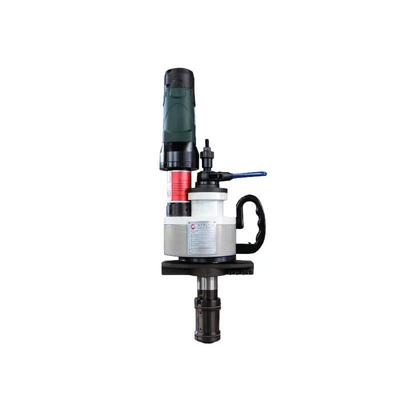

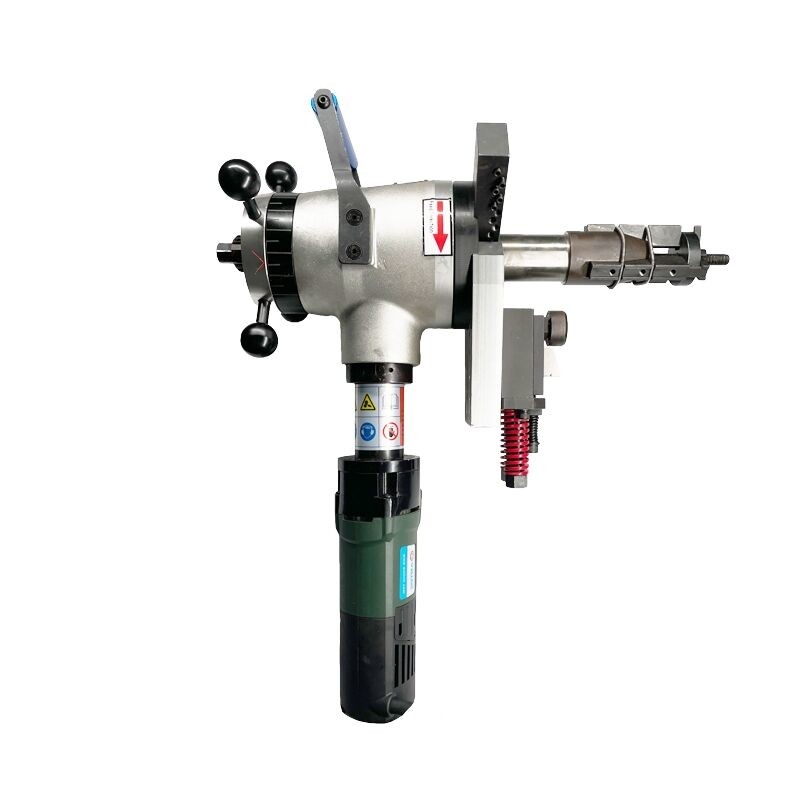

Product Show

Production Description

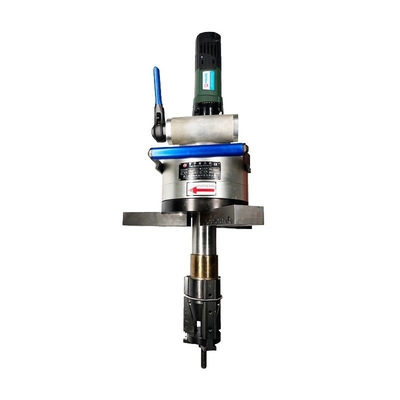

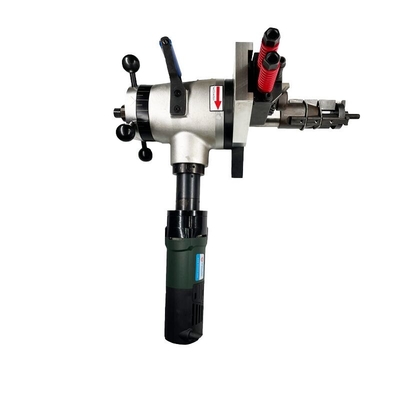

pipe chamfering machine

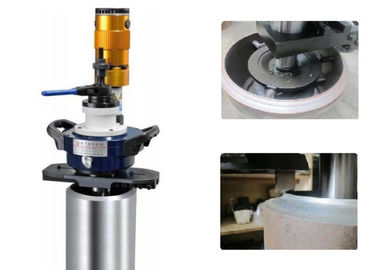

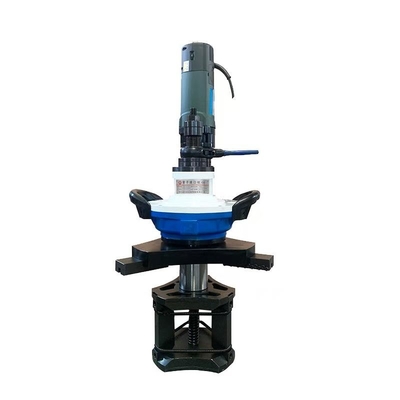

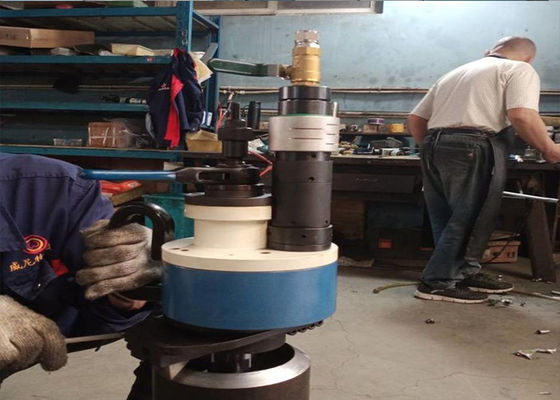

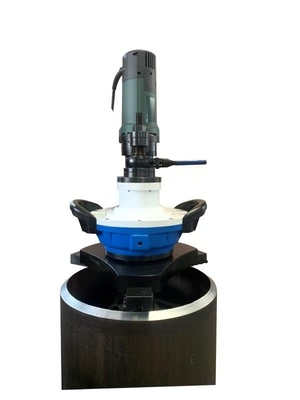

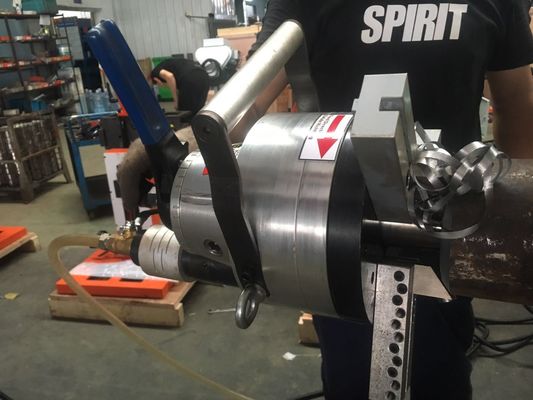

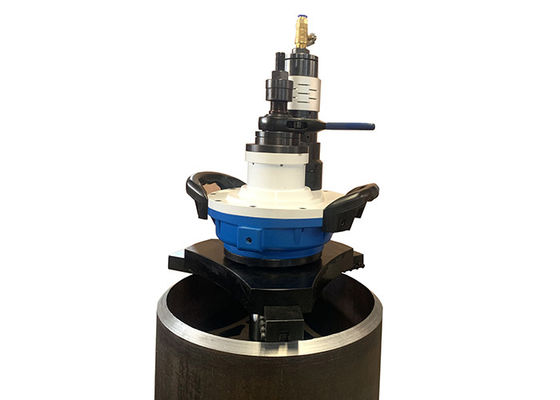

The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.

Features:

• On-site cold Beveling improves safety
• Easy set-up & Operation
• Self-Centering
• Can be positioned in any direction
• Feed ratchet spanner makes tool feed / back easily
• Light weight and compact design

• Model	Working Range (ID-OD)		Wall Thickness	Rotation Speed
  ISE-30	Φ18-30	1/2’’-3/4’’	≤15	50r/min
  ISE-80	Φ28-89	1’’-3’’	≤15	55r/min
  ISE-120	Φ40-120	11/4’’-4’’	≤15	30r/min
  ISE-159	Φ65-159	21/2’’-5’’	≤20	35r/min
  ISE-252-1	Φ80-273	3’’-10’’	≤20	16r/min
  ISE-252-2			≤75	16r/min
  ISE-352-1	Φ150-356	6’’-14’’	≤20	14r/min
  ISE-352-2			≤75	14r/min
  ISE-426-1	Φ273-426	10’’-16’’	≤20	12r/min
  ISE-426-2			≤75	12r/min
  ISE-630-1	Φ300-630	12’’-24’’	≤20	10r/min
  ISE-630-2			≤75	10r/min
  ISE-850-1	Φ490-850	24’’-34’’	≤20	9r/min
  ISE-850-2			≤75	9r/min



• Choose the right Model

• Confirm your electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed

• If the pipe wall thickness more than 30mm, inform us in advance (Important)
