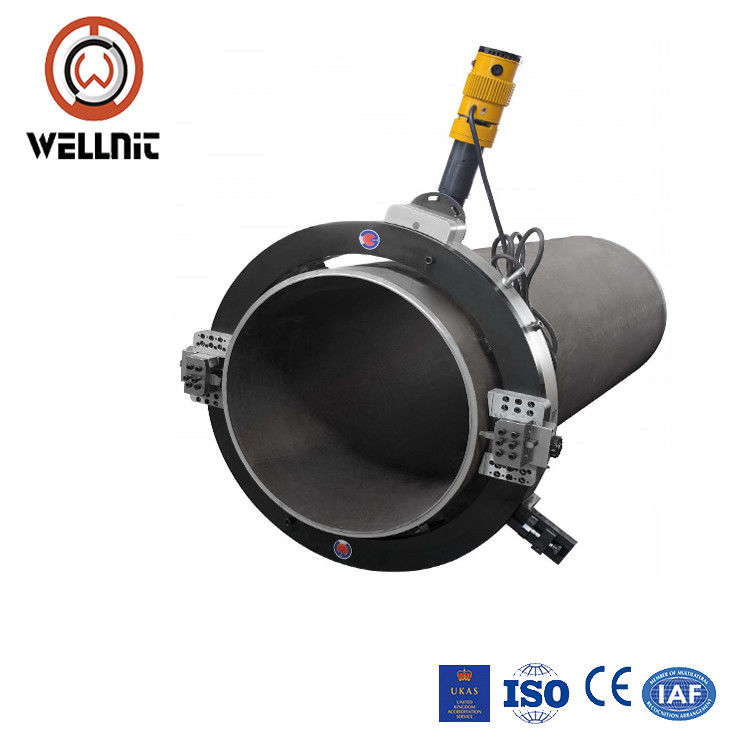

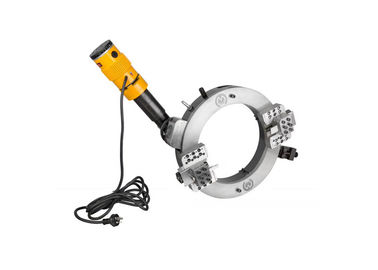

Portable Aluminum Alloy Electric Pipe Cutting And Beveling Machine Stable Operation

Portable Aluminum Alloy Electric Pipe Cutting And Beveling Machine Stable Operation

The series machine is ideal for all types of pipe cutting, beveling and end preparation.

The split frame design allows the machine to split in half at the frame and mount around

the OD of the in-line pipe or fittings for strong, stable clamping.

The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and

flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56

inches O.D.(DN20-1400), on most wall thicknesses and material.

The drives are a basic component of the pipe cutter machine in terms of reliability and productivity.

All motors are west European or US standard. An adapter allows easy exchange of all motor types and

sizes (pneumatic, hydraulic). The automatic feed mechanism allows a stable and constant work progress.

Different drives, like pneumatic, hydraulic or electrical drives are possible options.

Characteristic:

1. Pipe cold cutters with split-frame technology for endless pipes

2. Compact dimensions for use in confined work spaces with limited access

3. Quick and safe clamping and adjustment for pipeline welding

4. Rigid pipe cold cutter for pipeline welding

5. High metal remove rate

6. Cutting of heavy duty pipes by use of two cutters

7. Different types of cold beveling weld preparation by use of HSS form steels

8. Simultaneously cut and bevel of heavy wall pipes

9. Simultaneously bevel of both pipe ends (depending on wall-thickness).

Main Features:
