Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V | Origin: | Wenzhou,China |
|---|---|---|---|
| Speed: | 13r/min | Warranty: | 1 Year |
| Working Range: | 6-10 Inches | Cutting Material: | Carbon,stainless,alloy |
| High Light: | pipe cutter and beveler,clamshell pipe cutting machine |
||

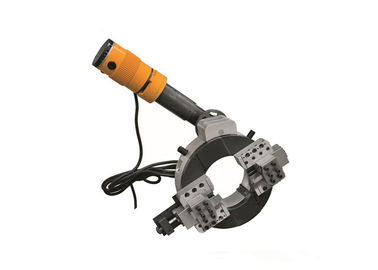

Automatic Clamshell Pipe Cutting Machine Cold Cutting Pipe Equipment Orbital Efficient
Production Description:
The series machine is ideal for all types of pipe cutting, beveling and end preparation.
The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line
cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end
preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall
thicknesses and material.
Electric motor drive, great power and can work 12 hours continuously.
*Just a few seconds to finish the cut with one single rotation around the pipe.
*Compact design, small space.
*Used for Carbon Steel, Stainless Steel, Alloy Steel , Non-ferrous, Engineering plastic and Cast steel.
*Metabo drive, safe and efficient.
*Will not influence the pipe material.
Before you place order to us, please let us know the following information:
*Choose the right Model
*Confirm your electric power supply ( Voltage, frequency and phase)
*Confirm the beveling angel required
*Confirm the welding joint required (U, V, Double V or Compound preparation)
*Advise your pipe material ( Carbon steel, stainless steel or others)
*Other special demands about machine
*The spare parts needed
*If the pipe wall thickness more than 30mm, inform us in advance (Important)
This pipe tool: pipe beveling machine / pipe beveler belongs to the standard products, we develop
according to the needs of user, can process the thick and great pipe and is in charge of, every
performance reaches Q/WAT01-2002 standard to require.
Pipe bevelling machine can not only process the U, V welding line of end sloping, back ridging, edge cutting
for carbon steel, stainless steel and alloyed steel pipes, but also can treat the welded convex flange and
plain flange. The processing angle is chosen wantonly, the knife and can leave automatically, small, rigidity
is strong, it is simple and convenient to operate.
The machine can not only process the U, V welding line of end sloping, back but ridging, edge cutting for
carbon steel, stainless steel and alloyed steel pipes, also can treat the welded convex flange and plain
flange.
Main Features:
1. Lower axial and radial clearance.
2. Cold cutting and beveling,No spark.
3. Easy set-up &Robust operation.
4. Process carbon steel ,stainless steel ,alloy etc with U,V,J compound bevel.
5. Widely used in the fields of petroleum,chemical,natural gas,food ,boiler,medicine,power supply
construction and nuclear power.
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCE-305 |
Φ150-305(6”-10”) |
≤30mm |
13r/min |
Note:Non-standard machine are available according to customers' requirement.
