Home ProductsPneumatic Pipe Beveler

Tube Bevelling Machine Pneumatic Chamfering Tool Portable Inside Mounted

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

Tube Bevelling Machine Pneumatic Chamfering Tool Portable Inside Mounted

Tube Bevelling Machine Pneumatic Chamfering Tool Portable Inside Mounted
Tube Bevelling Machine Pneumatic Chamfering Tool Portable Inside Mounted Tube Bevelling Machine Pneumatic Chamfering Tool Portable Inside Mounted Tube Bevelling Machine Pneumatic Chamfering Tool Portable Inside Mounted

Large Image :  Tube Bevelling Machine Pneumatic Chamfering Tool Portable Inside Mounted

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISP-80
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Power Supply: 220-240V 50-60Hz Driven: Penumatic
Thickness: Less Than 15(Standard) Speed Rotation: 55r/min
Working WAY: No Spark,Cold Working Fix Way: Inside Mounted
Working Range: 28-76mm(Inside Diameter)
High Light:

pipe chamfering machine

,

pneumatic beveling tools

Tube Bevelling Machine Pneumatic Chamfering Tool Portable Inside Mounted







Cold Working Portable Body Inside Mounted Pipe Beveling Machine Electric Driven,Easy operation, Light Weight, Adraw nut is tightened, Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It's can work with various material pipe, beveling angle as per your required. This machine could driven by both Electric and Pneumatic.



ISP Series is ID-Mounted pipe beveling machine. Portable Pipe Bevelling Machines internal clamping Pipe beveler ISE-80 for 1-3inch pipe





This series is ID Mounted Welding Preparation Pipe Chamfering Tool with the following advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.

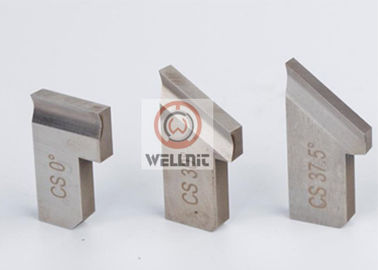

  • Angle:Beveling angle as per your required.



Technical characteristic



Model Working Range (ID-OD) Wall Thickness Rotation Speed
ISE-30 Φ18-30 1/2''-3/4'' ≤15 50r/min
ISE--80 Φ28-89 1''-3'' ≤15 55r/min
ISE--120 Φ40-120 1 1/4''-4'' ≤15 30r/min
ISE--159 Φ65-159 2 1/2''-5'' ≤20 35r/min
ISE--252-1 Φ80-273 3''-10'' ≤20 16r/min
ISE--252-2 Φ80-273 ≤75 16r/min
ISE--352-1 Φ150-356 6''-14'' ≤20 14r/min
ISE--352-2 Φ150-356 ≤75 14r/min
ISE--426-1 Φ273-426 10''-16'' ≤20 12r/min
ISE--426-2 Φ273-426 ≤75 12r/min
ISE--630-1 Φ300-630 12''-24'' ≤20 10r/min
ISE--630-2 Φ300-630 ≤75 10r/min
ISE--850-1 Φ490-850 24''-34'' ≤20 9r/min
ISE--850-2 Φ490-850 ≤75 9r/min

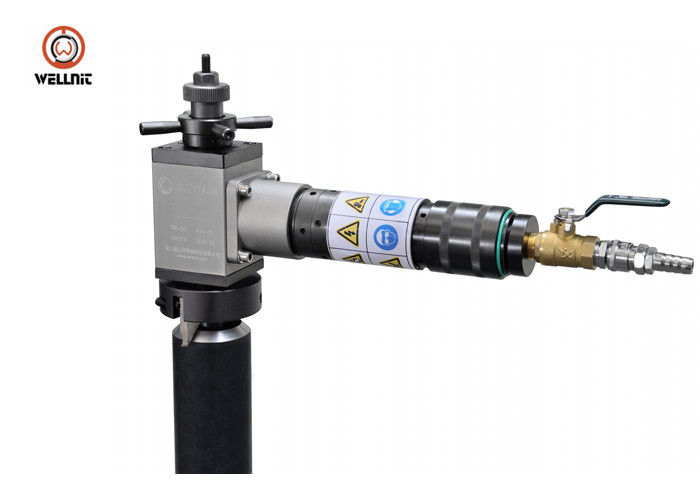

ISP-80 Beveling Machine
Voltage 220-240V
Frequency 50-60Hz
Power 1600W
Wall Thickness ≦15
Working Range 28-76mm
Rotation Speed 55r/min
Net Weight 14kg





Non-standard machines are available according to customers’requirement.


  • Technical Parameter

  •

Tube Bevelling Machine Pneumatic Chamfering Tool Portable Inside Mounted 0







Tube Bevelling Machine Pneumatic Chamfering Tool Portable Inside Mounted 1

Tube Bevelling Machine Pneumatic Chamfering Tool Portable Inside Mounted 2
