Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V | Rated Power: | 1.5-2KW |
|---|---|---|---|
| Speed: | 11r/min | Warranty: | 1 Year |
| Working Range: | 457-610mm;18''-24'' | Cutting Material: | Carbon,stainless,alloy |
| High Light: | pipe cutter and beveler,pipe bevel cutter |
||
Portable Pipe Cutting And Beveling Machine Electric Driven Pipe Bevel Cutter
Production Description:
The series machine is ideal for all types of pipe cutting, beveling and end preparation.

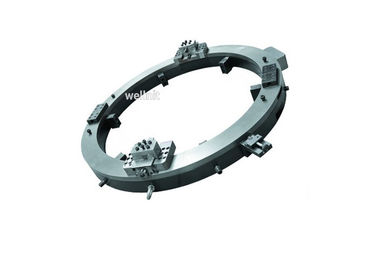

The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.

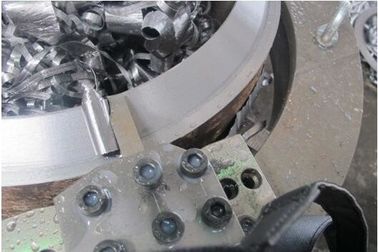

The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and
flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56
inches O.D.(DN20-1400), on most wall thicknesses and material.
Wellnit Machine manufacturing Co., Ltd is specialized in the research, develop and manufacturing of
welding equipments and welding technology supports. It is a high tech enterprise engaged in scientific
research, develop, product manufacturing and trade .In the past years, we have imported advanced
equipment and technology such as Japanese Zimarac digital controlled tooling machine multiple processing
center, digital controlled tooth moving machine and tooth rolling machine. We have continuously updated
our products and technology and our company have passed ISO9001 quality certification. And we are
member of grade one supplier network for China Petroleum & Natural Gas Group Company
Wellnit company has supplied superior quality equipments and technical services to China nucleus,
aerospace, petroleum, chemical, power supply construction and boiler industry. And our exported products
are widely used in the large scale piping projects in Kuwait, Sudan, Pakistan and etc. and are well accepted
and supported by our foreign clients.
We take credit and sincerity as the base of our development and we will utilize our advanced technology to
service all our clients.
1) mpact structure, designed to bevel the pipe in the narrow space.
2) Pipe Out-mounted , self centering, secured clamping, easy to operate.
3) Aluminum body, light weight, suitable for working aloft.
4) High quality beveling tool, can process different grades of carbon steels, alloyed steel, stainless steel
and so on.
5) More choice for the driven model, electric or pneumatic, widely application.
6) Using fields: Pipe end beveling process of water pipe, heater boiler and thermal power plant.
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCE-630 |
Φ480-630(20”-24”) |
≤30mm |
11r/min |
Electric: Driven by low-energy consumption electric motor 110V or 220V optional, 50-60Hz
Pneumatic: Driven by pneumatic motor, Air working pressure: 0.6-0.8Mpa, Air Consuming flux:
950-1500L/min
