Cold Working Pneumatic Pipe Beveler Inside Mounted Portable Beveling Machine

Cold Working Pneumatic Pipe Beveler Inside Mounted Portable Beveling Machine
Cold Working Pneumatic Pipe Beveler Inside Mounted Portable Beveling Machine Cold Working Pneumatic Pipe Beveler Inside Mounted Portable Beveling Machine Cold Working Pneumatic Pipe Beveler Inside Mounted Portable Beveling Machine

Large Image :  Cold Working Pneumatic Pipe Beveler Inside Mounted Portable Beveling Machine

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISP-352-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Power Supply: 220-240V 50-60Hz Driven: Penumatic
Pipe Process Thickness: Less Than 20 (Standard) Rotation: 14r/min
Working Method: No Spark,Cold Working Installation: Inside Mounted
Working Range: 150-330mm(Inside Diameter)
High Light:

pipe chamfering machine

,

pneumatic beveling tools

Cold Working Pneumatic Pipe Beveler Inside Mounted Portable Beveling Machine


Main performance of the product


This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry.



The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.


Below Technical Specifications for Electry Type Steel Pipe Beveling Machines for Pipe end facing machine from Shanghai Manufactures


Model Working Range (ID-OD) Wall Thickness Rotation Speed
ISE-30 Φ18-30 1/2''-3/4'' ≤15 50r/min
ISE--80 Φ28-89 1''-3'' ≤15 55r/min
ISE--120 Φ40-120 1 1/4''-4'' ≤15 30r/min
ISE--159 Φ65-159 2 1/2''-5'' ≤20 35r/min
ISE--252-1 Φ80-273 3''-10'' ≤20 16r/min
ISE--252-2 Φ80-273 ≤75 16r/min
ISE--352-1 Φ150-356 6''-14'' ≤20 14r/min
ISE--352-2 Φ150-356 ≤75 14r/min
ISE--426-1 Φ273-426 10''-16'' ≤20 12r/min
ISE--426-2 Φ273-426 ≤75 12r/min
ISE--630-1 Φ300-630 12''-24'' ≤20 10r/min
ISE--630-2 Φ300-630 ≤75 10r/min
ISE--850-1 Φ490-850 24''-34'' ≤20 9r/min
ISE--850-2 Φ490-850 ≤75 9r/min


Technical Parameter




ISP-352-1 Beveling Machine
Voltage 220-240V
Frequency 50-60Hz
Power 1600W
Wall Thickness ≦20
Working Range 150-330mm
Rotation Speed 14r/min
Net Weight 70kg



Non-standard machines are available according to customers’requirement.

Technical characteristics






 This series is ID Mounted Welding Preparation Pipe Chamfering Tool with the following advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.

  •

ISP Series is ID-Mounted pipe beveling machine. With the advantages: Easy operation, Light Weight, Adraw nut is tightened, Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It's can work with various material pipe, beveling angle as per your required. This machine could driven by both Electric and Pneumatic.

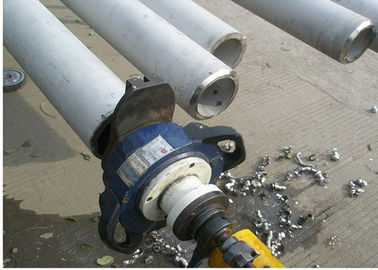

Cold Working Pneumatic Pipe Beveler Inside Mounted Portable Beveling Machine 0

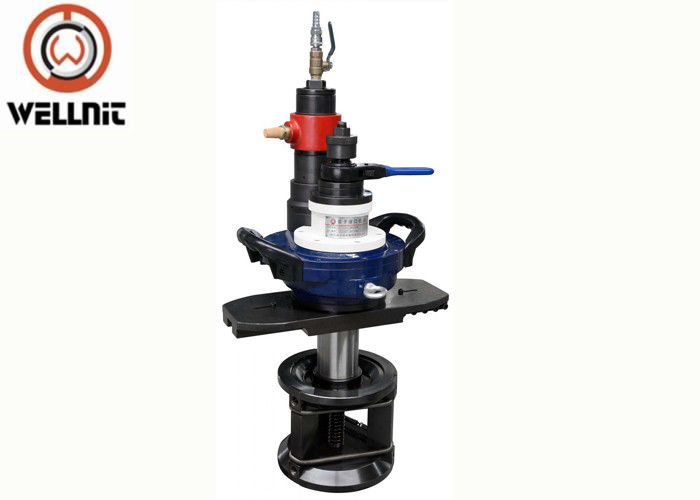

Cold Working Pneumatic Pipe Beveler Inside Mounted Portable Beveling Machine 1
