Low Noise Tube Beveling Machine Hand Held Pipe Beveler Penumatic Type

Low Noise Tube Beveling Machine Hand Held Pipe Beveler Penumatic Type
Low Noise Tube Beveling Machine Hand Held Pipe Beveler Penumatic Type Low Noise Tube Beveling Machine Hand Held Pipe Beveler Penumatic Type Low Noise Tube Beveling Machine Hand Held Pipe Beveler Penumatic Type

Large Image :  Low Noise Tube Beveling Machine Hand Held Pipe Beveler Penumatic Type

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISP-426-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Power Supply: 220-240V 50-60Hz Operation: Penumatic
Tube Thickness: Less Than 20 (Standard) Circle Rotation: 12r/min
Working Method: No Spark,Cold Working Installation: Inside Mounted
Working Range: 250-426mm(Inside Diameter)
High Light:

tube bevelling machine

,

pneumatic beveling tools

Low Noise Tube Beveling Machine Hand Held Pipe Beveler Penumatic Type





Main performance of the product



ISP Series is ID-Mounted pipe beveling machine. With the advantages: Easy operation, Light Weight, Adraw nut is tightened, Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It's can work with various material pipe, beveling angle as per your required. This machine could driven by both Electric and Pneumatic.



Function
1. The installation is simple and convenient,groove assignment is fast.

2. it is applicable to various kinds of materials processing;and available to wide range of pipe diameter.

3. As it adopts machanical cutting groove method,it can maintain well mechanical properties of the material quality.

4. Idea pipe and preparation with various shapes as flat,V,X and U shape can meet different technological requirements for butt welding.

Features

1. Adopt pnematic motor drive with steady move and low noise.

2. Inner swelling structure,self-fixed at the tube center,quick and easy operation.

3. can bevel between 0°-37°,high beveling speed,labour-saving.

advantages:

  • Lighter weight,minimal radial space,Easy to operate.
  • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
  • Driveing Type:Electric-ISE,Pneumatic-ISP.
  • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
  • Angle:Beveling angle as per your required.

  •
Pheumatic Pipe I.D(mm) Wall Thickness(mm) N.W(KG) G.W(KG) Dimension(mm)
GPY-28 16-28 1" ≤10 9 15 480*350*130
GPY-80 28-76 1-3" ≤10 10 16 480*350*130
GPY-150T 65-159 21/2-6" ≤20 22 29 670*300*200
GPY-150 65-159 21/2-6" ≤20 19 29 670*300*200
GPY-150B 65-159 21/2-6" ≤20 20 29 670*300*200
GPY-250 80-240 3-10" ≤20 30 45 670*350*230
GPY-250B 80-240 3-10' ≤20 31 45 670*350*230
GPY-250-II 80-240 3-10" ≤75 37 52 670*3508230
GPY-351 150-330 6-13" ≤20 48 70 750*440*350
GPY-351-II 150-330 6-13" ≤75 53 75 830*560*320
GPY-630 300-600 12-24" ≤20 99 149 900*750*420
GPY-630-II 300-600 12-24" ≤75 99 149 950*750*420
GPY-850-II 500-850 20-24" ≤75 265 309 1250*1000*950

Non-standard machines are available according to customers’requirement.

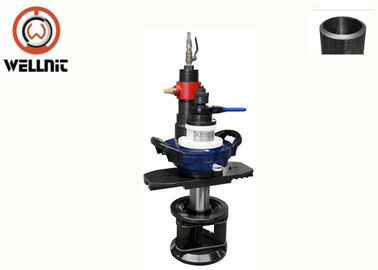

Low Noise Tube Beveling Machine Hand Held Pipe Beveler Penumatic Type 0

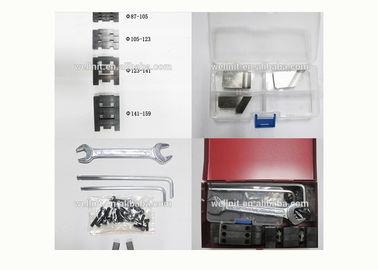

Low Noise Tube Beveling Machine Hand Held Pipe Beveler Penumatic Type 1
