Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V | Rated Power: | 1.5-2KW |
|---|---|---|---|
| Speed: | 11r/min | Warranty: | 1 Year |
| Working Range: | 600-762mm;24''-30'' | Cutting Material: | Carbon,stainless,alloy |
| High Light: | pipe cutter and beveler,clamshell pipe cutting machine |
||

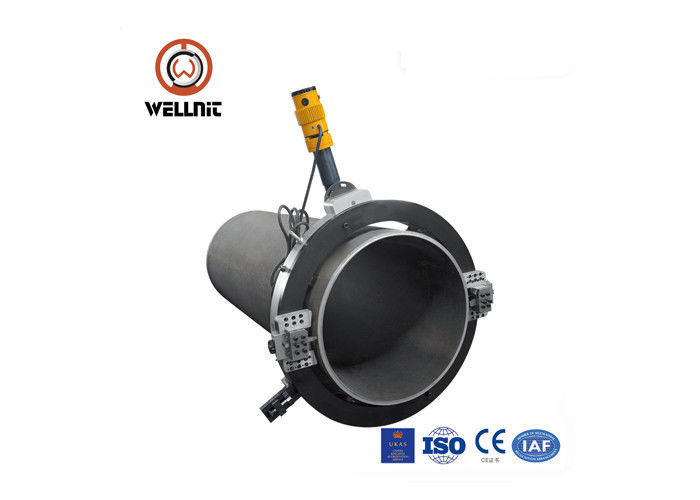

Low Noise Pipe Cutting And Beveling Machine Light Weight Compact Design
Production Description:
The series machine is ideal for all types of pipe cutting, beveling and end preparation.
The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line
cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end
preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall
thicknesses and material.
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
Before you place order to us, please let us know the following information:
1. Choose the right Model
2. Confirm your electric power supply ( Voltage, frequency and phase)
3. Confirm the beveling angel required
4. Confirm the welding joint required (U, V, Double V or Compound preparation)
5. Advise your pipe material ( Carbon steel, stainless steel or others)
6. Other special demands about machine
7. The spare parts needed
8. If the pipe wall thickness more than 30mm, inform us in advance (Important)
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. Or 30 days , it's depand to quantity.
1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;
2) If all the cost is less than USD $ 10000, T/T 100% required in advance.
This Pipe Cold Cutting and Beveling Machine, with chain guide, adopts high-performance hydraulic pump
to drive, adjustable speed, wide pipe range processing, long life performance, continuous operation and
work. Rigidity is good, the precision is high.It is suitable for cutting and beveling pipes with t hick wall. In
addition, it collocates remote control, simple and convenience to operate.This machine can operate at
random, and can feed automatic, pipe cutting and beveling is safe and reliable.
Cold Cutting and Beveling
Fast, Precision, On-site Beveling
Minimal Axial and Radial Clearance
Lightweight and Compact Design
Easy Set-up & Robust Operation
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCE-762 |
Φ600-762(24”-30”) |
≤30mm |
11r/min |
Note:Non-standard machine are available according to customers' requirement.
