Low Friction Clamshell Pipe Cutting Machine For Stainless Alloy Cutting

Low Friction Clamshell Pipe Cutting Machine For Stainless Alloy Cutting
Low Friction Clamshell Pipe Cutting Machine For Stainless Alloy Cutting Low Friction Clamshell Pipe Cutting Machine For Stainless Alloy Cutting Low Friction Clamshell Pipe Cutting Machine For Stainless Alloy Cutting

Large Image :  Low Friction Clamshell Pipe Cutting Machine For Stainless Alloy Cutting

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE
Model Number: OCE-830
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets month
Detailed Product Description
Voltage: 220V Rated Power: 1.5-2KW
Speed: 10r/min Warranty: 1 Year
Working Range: 660-813mm;26''-32'' Cutting Material: Carbon,stainless,alloy
High Light:

electric pipe cutting machine

,

pipe cold cutting tools

Low Friction Clamshell Pipe Cutting Machine For Stainless Alloy Cutting





Production Description:



The series machine is ideal for all types of pipe cutting, beveling and end preparation.

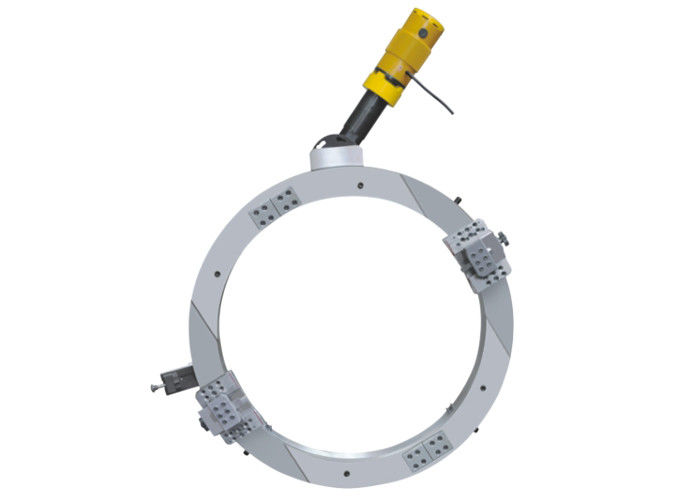

The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and



flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56



inches O.D.(DN20-1400), on most wall thicknesses and material.



It is widely used in long-distance transport pipeline, power plant, nuclear power, petroleum,



chemical engineering, natural gas, boiler shop, pharmacy, pipe prefabrication plant, pipeline



installation engineering, rush-repair work, etc.



Machine



Pipe cutting and beveling machine



1PC

Drive Mode



Pneumatic Motor



1PC

Components



Aluminum alloy/wooden packing case



1PC


Cutter holder



1PC


Cutting blade



1PC

Tools



Rubber hammer, Spray bottle, Square, Wrench set



1SET

Documents



Operating manual



1PC


Certificate of conformity



1PC


U-disk



1PC





Model



Working Range (ID-OD) Wall Thickness Rotation Speed Air pressure Air Consumption
OCP-89 Φ25-89 3/4''-3'' ≤35 50r/min 0.6MPa 1500 L/min
OCP-159 Φ50-159 2''-5'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-168 Φ50-168 2''-6'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-230 Φ80-230 3''-8'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-275 Φ125-275 5''-10'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-305 Φ150-305 6''-10'' ≤35 18r/min 0.6MPa 1500 L/min
OCP-325 Φ168-325 6''-12'' ≤35 16r/min 0.6MPa 1500 L/min
OCP-377 Φ219-377 8''-14'' ≤35 13r/min 0.6MPa 1500 L/min
OCP-426 Φ273-426 10''-16'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-457 Φ300-457 12''-18'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-508 Φ355-508 14''-20'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-560 Φ400-506 16''-22'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-610 Φ457-610 18''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-630 Φ480-630 20''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-660 Φ508-660 20''-26'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-715 Φ560-715 22''-28'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-762 Φ600-762 24''-30'' ≤35 11r/min 0.8MPa 2000 L/min
OCP-830 Φ660-813 26''-32'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-914 Φ762-914 30''-36'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-1066 Φ914-1066 36''-42'' ≤35 9r/min 0.8MPa 2000 L/min
OCP-1230 Φ1066-1230 42''-48'' ≤35 8r/min 0.8MPa 2000 L/min



Main Features:



1. Cold Cutting and Beveling improves safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Tools feed automatically.



5. Fast, Precision, On-site Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and compact design.



8. Easy set-up & Operation.



Technical Specifications:



Model working range(ID-OD) wall thickness rotation speed
OCE-830

Φ660-813(26”-32”)

≤30mm

10r/min
