Home ProductsPneumatic Pipe Beveler

No Spark Cold Working Pneumatic Pipe Beveler , Pipe Beveling Equipment

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

No Spark Cold Working Pneumatic Pipe Beveler , Pipe Beveling Equipment

No Spark Cold Working Pneumatic Pipe Beveler , Pipe Beveling Equipment
No Spark Cold Working Pneumatic Pipe Beveler , Pipe Beveling Equipment No Spark Cold Working Pneumatic Pipe Beveler , Pipe Beveling Equipment No Spark Cold Working Pneumatic Pipe Beveler , Pipe Beveling Equipment

Large Image :  No Spark Cold Working Pneumatic Pipe Beveler , Pipe Beveling Equipment

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISP-252-2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 50 sets for a mounth
Detailed Product Description
Power Supply: 220-240V 50-60Hz Operation: Penumatic
Tube Thickness: Less Than 75 (Standard) Speed: 16r/min
Process Type: No Spark,Cold Working Fix Method: Inside Mounted
Working Range: 80-273mm(Inside Diameter)
High Light:

tube bevelling machine

,

pneumatic beveling tools

No Spark Cold Working Pneumatic Pipe Beveler , Pipe Beveling Equipment

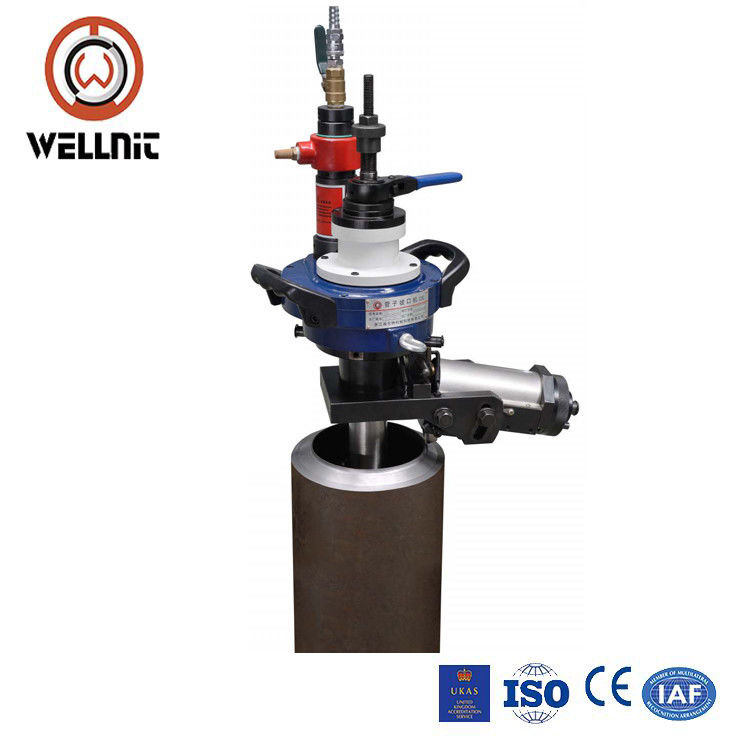

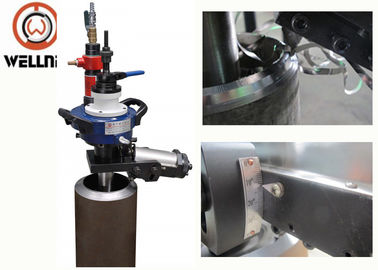

This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. ISP Series is ID-Mounted pipe beveling machine. With the advantages: Easy operation, Light Weight, Adraw nut is tightened, Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It's can work with various material pipe, beveling angle as per your required. This machine could driven by both Electric and Pneumatic.

They are widely used in the fields of petroleum, chemical, natural gas, boilers, nuclear power, pharmaceutical, plant construction and pipeline engineering.

  • This series is ID-mounted pipe beveling machine with light weight, compact design.
  • Easy and quickly set-up self centered and squared to the bore.
  • The tool not only can process carbon steel, stainless steel and alloy pipe with U, V welding seam but also process convex flange welded.
  • Fast precision, on-site beveling, the bevel angle by your required.
  • This series available for electric and pneumatic driven





ISP-252-2 Beveling Machine
Voltage 220-240V
Frequency 50-60Hz
Power 1600W
Wall Thickness ≦75
Working Range 80-273mm
Rotation Speed 16r/min
Net Weight 58kg



Non-standard machines are available according to customers’requirement.









No Spark Cold Working Pneumatic Pipe Beveler , Pipe Beveling Equipment 0

No Spark Cold Working Pneumatic Pipe Beveler , Pipe Beveling Equipment 1No Spark Cold Working Pneumatic Pipe Beveler , Pipe Beveling Equipment 2
