Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V | Rated Power: | 1.5-2KW |
|---|---|---|---|
| Speed: | 10r/min | Warranty: | 1 Year |
| Working Range: | 762-914mm;30''-36'' | Cutting Material: | Carbon,stainless,alloy |
| High Light: | pipe cold cutting tools,cold cutting equipment |
||

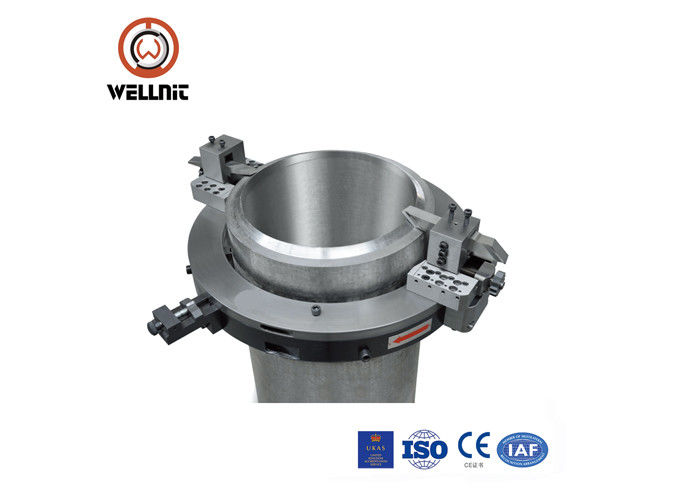

Aluminum Alloy Clamshell Pipe Cutter Electric Driven Steel Pipe Beveler
Production Description:
The series machine is ideal for all types of pipe cutting, beveling and end preparation.

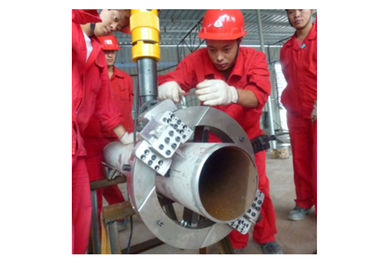

The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and
flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56
inches O.D.(DN20-1400), on most wall thicknesses and material.
Capability
Pipe cut off
Pipe end beveling
Pipe facing
Cutting and beveling
Compound beveling
Counter boring
Flange facing
Grooving
Bevel Type
We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.
Processing range can be customized according to requirements
Accessories:
Ring sets,It is provided for the users who have drive motors and tool slides to economically expand the
application range of SFM products.
SFM tool slides (select one)
A.Thick-wall tool slide (conventional): It can be applied to SFM models 206 to 4248 with stroke of 64 mm;
B.Spring tool slide: It is used to track the surface of out-of-round pipes, which can greatly save installation,
adjustment and cutting time. It can quickly and automatically track the system to ensure continuous
truncated edge, and can even keep standard wall thickness of large diameter counterbore when combined
with counterbore slide.
C.Drilling and milling tool slide (only for hydraulic): Achieve pipe cutting by using the drilling and milling.
High-strength tool slide, smooth cutting and simple operation.
|
Machine
|
Pipe cutting and bevelingmachine
|
1PC |
|
Drive Mode
|
Pneumatic Motor |
1PC |
|
Components |
Aluminum alloy/wooden packing case
|
1PC |
|
Cutter holder
|
1PC |
|
|
Cutting blade
|
1PC |
|
|
Tools |
Rubber hammer, Spray bottle, Square, Wrench set
|
1SET |
|
Documents |
Operating manual, SFM
|
1PC |
|
Certificate of conformity, SFM
|
1PC |
|
|
U-disk |
1PC |
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
It is widely used in long-distance transport pipeline, power plant, nuclear power, petroleum, chemical
engineering, natural gas, boiler shop, pharmacy, pipe prefabrication plant, pipeline installation engineering,
rush-repair work, etc.
Bevel Type
We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCE-914 |
Φ762-914(30”-36”) |
≤30mm |
10r/min |
