Home ProductsElectric Pipe Cutting And Beveling Machine

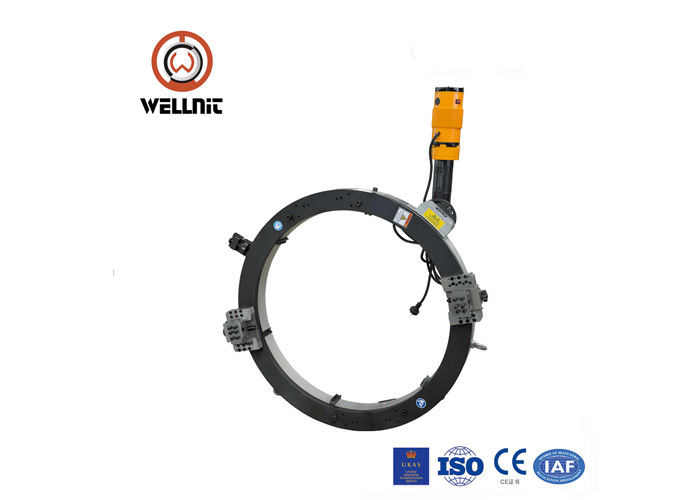

Light Weight Cold Electric Pipe Cutting And Beveling Machine Compact Design

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

Light Weight Cold Electric Pipe Cutting And Beveling Machine Compact Design

Light Weight Cold Electric Pipe Cutting And Beveling Machine Compact Design
Light Weight Cold Electric Pipe Cutting And Beveling Machine Compact Design

Large Image :  Light Weight Cold Electric Pipe Cutting And Beveling Machine Compact Design

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE
Model Number: OCE-1066
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets month
Detailed Product Description
Voltage: 220V Rated Power: 1.5-2KW
Speed: 10r/min Warranty: 1 Year
Working Range: 914-1066mm;36''-42'' Cutting Material: Carbon,stainless,alloy
High Light:

electric pipe cutting machine

,

pipe cold cutting tools

Light Weight Cold Electric Pipe Cutting And Beveling Machine Compact Design





Production Description:



The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



It is widely used in long-distance transport pipeline, power plant, nuclear power, petroleum,



chemical engineering, natural gas, boiler shop, pharmacy, pipe prefabrication plant, pipeline



installation engineering, rush-repair work, etc.



Machine Pipe cutting and beveling machine 1PC
Drive Mode Pneumatic Motor 1PC
Components Aluminum alloy/wooden packing case 1PC
  Cutter holder 1PC
  Cutting blade 1PC
Tools Rubber hammer, Spray bottle, Square, Wrench set 1SET
Documents Operating manual, SFM 1PC
  Certificate of conformity, SFM 1PC
  U-disk 1PC



Model Working Range (ID-OD) Wall Thickness Rotation Speed Air pressure Air Consumption
OCP-89 Φ25-89 3/4''-3'' ≤35 50r/min 0.6MPa 1500 L/min
OCP-159 Φ50-159 2''-5'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-168 Φ50-168 2''-6'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-230 Φ80-230 3''-8'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-275 Φ125-275 5''-10'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-305 Φ150-305 6''-10'' ≤35 18r/min 0.6MPa 1500 L/min
OCP-325 Φ168-325 6''-12'' ≤35 16r/min 0.6MPa 1500 L/min
OCP-377 Φ219-377 8''-14'' ≤35 13r/min 0.6MPa 1500 L/min
OCP-426 Φ273-426 10''-16'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-457 Φ300-457 12''-18'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-508 Φ355-508 14''-20'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-560 Φ400-506 16''-22'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-610 Φ457-610 18''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-630 Φ480-630 20''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-660 Φ508-660 20''-26'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-715 Φ560-715 22''-28'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-762 Φ600-762 24''-30'' ≤35 11r/min 0.8MPa 2000 L/min
OCP-830 Φ660-813 26''-32'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-914 Φ762-914 30''-36'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-1066 Φ914-1066 36''-42'' ≤35 9r/min 0.8MPa 2000 L/min
OCP-1230 Φ1066-1230 42''-48'' ≤35 8r/min 0.8MPa 2000 L/min



Q: How can you guarantee the Good Quality we received?



A :Firstly, We have QC department for Quality control from Raw material till finished products.



Secondly, We will do Inpsection during production and after Production.



Thirdly, All our products will be tested before packing and sending out.



We will send Inspection or testing video if customer not coming for checking personly.



Q: What about warrenty?



All our Products having 1 year warrenty and Life-Long Maintenance.



We will provide you with free technical support.



Q: Do you provide any help regarding Products Operation?



A: All machines within products introduction, Manuals in English which is having all the operation



suggestions and Maintenance proposals during using. Meanwhile, We could also support you with



other way, Like provide you Video, Show and teach you while you are in our factory or Our engineers



in your factory.



Q: Can I get Spare Parts?



A: We will enclose some quick wear parts with your order , As well some needed tools for this machine



which is free will be send together wtih your Order. We have all spare parts drawing within the Manual.



You could just tell us your spare parts No. In future. We could support you all the way.



Q: How Can I get more details about this machine or silimars?



A: Pls write down your questions and requirements in to below inquiry box.



We will check and reply you by Email or Phone in 8 Hours.





Main Features:



1. Cold Cutting and Beveling improves safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Tools feed automatically.



5. Fast, Precision, On-site Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and compact design.



8. Easy set-up & Operation.



Technical Specifications:



Model working range(ID-OD) wall thickness rotation speed
OCE-1066

Φ914-1066(36”-42”)

≤30mm

10r/min
