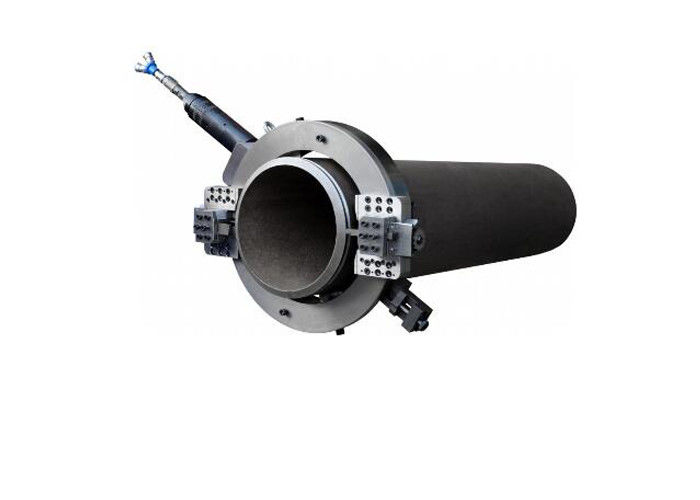

Automatic Cold Pneumatic Pipe Cutting Beveling Machine Clamshell Pipe Cutter

Automatic Cold Pneumatic Pipe Cutting Beveling Machine Clamshell Pipe Cutter
Automatic Cold Pneumatic Pipe Cutting Beveling Machine Clamshell Pipe Cutter Automatic Cold Pneumatic Pipe Cutting Beveling Machine Clamshell Pipe Cutter Automatic Cold Pneumatic Pipe Cutting Beveling Machine Clamshell Pipe Cutter

Large Image :  Automatic Cold Pneumatic Pipe Cutting Beveling Machine Clamshell Pipe Cutter

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE
Model Number: OCP-159
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets month
Detailed Product Description
Voltage: 220V Rated Power: 1.5-2KW
Speed: 20 R/min Warranty: 1 Year
Working Range: 50-159mm;2''-5'' Cutting Material: Carbon,stainless,alloy
Driving Type: Pneumatic
High Light:

pneumatic pipe cutting and beveling machine

,

split frame machine

Automatic Cold Pneumatic Pipe Cutting Beveling Machine Clamshell Pipe Cutter





Production Description:



The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line



cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end



preparation on open ended pipe.



Machine body structure and material:


1. Standard Model: Alloy steel with ionic nitriding treatment, the weight is a bit heavy but solid and durable;


2. Light Model: Aerospace grade aluminum alloy. Light weight and suitable for high-altitude operation.



3. High speed to cut the pipe



4. Pipe cutting is to rotate machine automatically



5. Use round blade with 1300W electric motor to cut



6. Pipe will be cut after the machine rotated 360 degree



7. The powerful and stable electric motor have 6 choices;



8. Driveing Type:Electric Servo motor.



9. Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.



10. Angle:Beveling angle as per your required.



Before you place order to us, please let us know the following information:



1. Choose the right Model.



2. Confirm your electric power supply ( Voltage, frequency and phase).



3. Confirm the beveling angel required.



4. Confirm the welding joint required (U, V, Double V or Compound preparation).



5. Advise your pipe material ( Carbon steel, stainless steel or others).



6. Other special demands about machine.



7. The spare parts needed.



8. Advise pipe wall thickness (Important).



Tool bit for Split Frame Pipe Cutting and Beveling Machine


pipe beveling machine


flange facing machine


Type: cutting tool bit


beveling tool bit :single V,double V,U,J


seal groove tool bit :V ,U,J


Cutting angle: 0 degree,15degree,30degree,37.5 degree,45 degree,60 degree


Material: HSS / Cemented carbide /Ceramic tip



Note: the material of the tool bits is W18Cr4V,which can be used for cutting and end slopping process of



different carbon steel. If users need tool bits for alloys, stainless and cast steel, please contact the factory



for availability.


The tool bits above is standard tools, if users need other degrees, please inform us before purchase.









Automatic Cold Pneumatic Pipe Cutting Beveling Machine Clamshell Pipe Cutter 0





Main Features:



1. Cold Cutting and Beveling improves safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Tools feed automatically.



5. Fast, Precision, On-site Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and compact design.



8. Easy set-up & Operation.



9. Machining heavy-wall pipe from 3/4" up to 56.





Technical Specifications:



Model working range(ID-OD) wall thickness rotation speed
OCP-159

Φ50-159(2”-5”)

≤30mm

20 r/min
