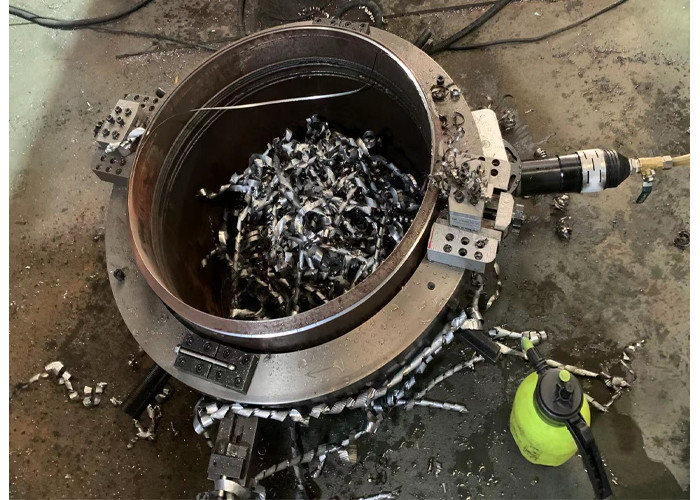

pipeline cutting beveling machine

pipeline cutting beveling machine
pipeline cutting beveling machine
video play

Large Image :  pipeline cutting beveling machine

Product Details:
Place of Origin: CHINA
Brand Name: WELLNIT
Certification: ISO,CE
Model Number: OCP-508
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: usd1000
Packaging Details: WOODEN BOX
Delivery Time: 5-8days
Payment Terms: L/C, T/T
Supply Ability: 20Sets per day
Detailed Product Description
Automation:: Automatic Voltage:: 220-240V
Pipe OD:: 355-508mm(14''-20'') Mounting Method:: Split OD Mount
Rotation Speed:: 10r/min Driven:: Pneumatic Motor
Pipe Thickness:: ≤30mm Body:: Aluminum Cs
Material: Metal
High Light:

DN20 Orbital Pipe Cutting Equipment

,

10r/Min Steel Pipe Cutter Machine

,

Beveling Orbital Pipe Cutting Equipment

Production Description



Portable Automatic Gas and Oil Pipe Cutting Machine



The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.



Features:

  • Cold Cutting and Beveling improves safety
  • Cutting and Beveling simultaneous
  • Split Frame: easy mounted on pipeline
  • Tools feed automatically
  • Fast, Precision, On-site Beveling
  • Minimal Axial and Radial clearance
  • Light weight and compact design
  • Easy set-up & Operation
Spcification:

Model Working Range (ID-OD) Wall Thickness Rotation Speed
OCE/ OCP-89 Φ25-89 3/4''-3'' ≤35 42r/min
OCE/ OCP-159 Φ50-159 2''-5'' ≤35 20r/min
OCE/ OCP-168 Φ50-168 2''-6'' ≤35 18r/min
OCE/ OCP-230 Φ80-230 3''-8'' ≤35 15r/min
OCE/ OCP-275 Φ125-275 5''-10'' ≤35 14r/min
OCE/ OCP-305 Φ150-305 6''-10'' ≤35 13r/min
OCE/ OCP-325 Φ168-325 6''-12'' ≤35 13r/min
OCE/ OCP-377 Φ219-377 8''-14'' ≤35 12r/min
OCE/ OCP-426 Φ273-426 10''-16'' ≤35 12r/min
OCE/ OCP-457 Φ300-457 12''-18'' ≤35 12r/min
OCE/ OCP-508 Φ355-508 14''-20'' ≤35 12r/min
OCE/ OCP-560 Φ400-506 16''-22'' ≤35 12r/min
OCE/ OCP-610 Φ457-610 18''-24'' ≤35 11r/min
OCE/ OCP-630 Φ480-630 20''-24'' ≤35 11r/min
OCE/ OCP-660 Φ508-660 20''-26'' ≤35 11r/min
OCE/ OCP-715 Φ560-715 22''-28'' ≤35 11r/min
OCE/ OCP-762 Φ600-762 24''-30'' ≤35 11r/min
OCE/ OCP-830 Φ660-813 26''-32'' ≤35 10r/min
OCE/ OCP-914 Φ762-914 30''-36'' ≤35 10r/min
OCE/ OCP-1066 Φ914-1066 36''-42'' ≤35 10r/min
OCE/ OCP-1230 Φ1066-1230 42''-48'' ≤35 10r/min



Our workshop:

Pneumatic Electric Operation Split Frame Pipe Cold beveling Cutting machine pipe beveling cutting machine factory price



Order guider:

Before you place order to us, please let us know the following information:

  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase)

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed

  • If the pipe wall thickness more than 30mm, inform us in advance (Important)

Packaging & Delivery:

  • Packaging Details Shrink-wrapped machine body inside, exported standard wooden case outside. 1 set/ WELLNIT standard case.
    Delivery Time Shipped in 3 days after payment
  • pipeline cutting beveling machine 1
