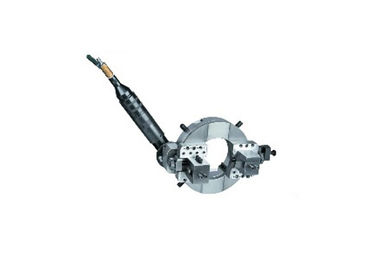

Precision Oval Pneumatic Pipe Cutting Beveling Machine Light Weight 220 Voltage
Production Description:
The series machine is ideal for all types of pipe cutting, beveling and end preparation.
The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and
flange facing operations, as well as weld end preparation on open ended pipe.
| Model | Working Range (ID-OD) | Wall Thickness | Rotation Speed | Air pressure | Air Consumption | |
| OCP-89 | Φ25-89 | 3/4''-3'' | ≤35 | 50r/min | 0.6MPa | 1500 L/min |
| OCP-159 | Φ50-159 | 2''-5'' | ≤35 | 21r/min | 0.6MPa | 1500 L/min |
| OCP-168 | Φ50-168 | 2''-6'' | ≤35 | 21r/min | 0.6MPa | 1500 L/min |
| OCP-230 | Φ80-230 | 3''-8'' | ≤35 | 20r/min | 0.6MPa | 1500 L/min |
| OCP-275 | Φ125-275 | 5''-10'' | ≤35 | 20r/min | 0.6MPa | 1500 L/min |
| OCP-305 | Φ150-305 | 6''-10'' | ≤35 | 18r/min | 0.6MPa | 1500 L/min |
| OCP-325 | Φ168-325 | 6''-12'' | ≤35 | 16r/min | 0.6MPa | 1500 L/min |
| OCP-377 | Φ219-377 | 8''-14'' | ≤35 | 13r/min | 0.6MPa | 1500 L/min |
| OCP-426 | Φ273-426 | 10''-16'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
| OCP-457 | Φ300-457 | 12''-18'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
| OCP-508 | Φ355-508 | 14''-20'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
| OCP-560 | Φ400-506 | 16''-22'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
| OCP-610 | Φ457-610 | 18''-24'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
| OCP-630 | Φ480-630 | 20''-24'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
| OCP-660 | Φ508-660 | 20''-26'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
| OCP-715 | Φ560-715 | 22''-28'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
| OCP-762 | Φ600-762 | 24''-30'' | ≤35 | 11r/min | 0.8MPa | 2000 L/min |
| OCP-830 | Φ660-813 | 26''-32'' | ≤35 | 10r/min | 0.8MPa | 2000 L/min |
| OCP-914 | Φ762-914 | 30''-36'' | ≤35 | 10r/min | 0.8MPa | 2000 L/min |
| OCP-1066 | Φ914-1066 | 36''-42'' | ≤35 | 9r/min | 0.8MPa | 2000 L/min |
| OCP-1230 | Φ1066-1230 | 42''-48'' | ≤35 | 8r/min | 0.8MPa | 2000 L/min |
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
9. Machining heavy-wall pipe from 3/4" up to 56.
10. Measure the size of the pipe to be machined, select the swelling block according to the swelling block
diagram, install it on the wedge block, tighten the bolt, make sure it is secure and loose.
11. According to the processing requirements, select the tool table in the appropriate angle of the tool,
installed in the machine cutter, tighten the bolt, fixed tool.
12. Rotate the feed hand wheel to extend the feed spindle.
13. Make the machine tightening mechanism into the tube, the cutter head and pipe surface should be left
enough feed space.
14. Rotate the hand wheel and adjust the machine position to ensure that the machine feeds the spindle
coaxial with the center of the tube. Tighten the nut on the hand wheel with a wrench.
15. Start the motor, rotate the feed handwheel, the blade is in contact with the pipe wall, and groove.
16. After finishing the machining, first exit the tool, then release the tightening mechanism, remove the
machine from the tube.
Spare parts: Tool
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCP-230 |
Φ80-230(3”-8”) |
≤30mm |
15 r/min |
