Product Details:
Payment & Shipping Terms:
|
Voltage: | 220V | Rated Power: | 1.5-2KW |
---|---|---|---|
Speed: | 13 R/min | Warranty: | 1 Year |
Working Range: | 150-305mm;6''-10'' | Cutting Material: | Carbon,stainless,alloy |
Driving Type: | Pneumatic | ||
High Light: | pneumatic pipe cutting and beveling machine,split frame machine |

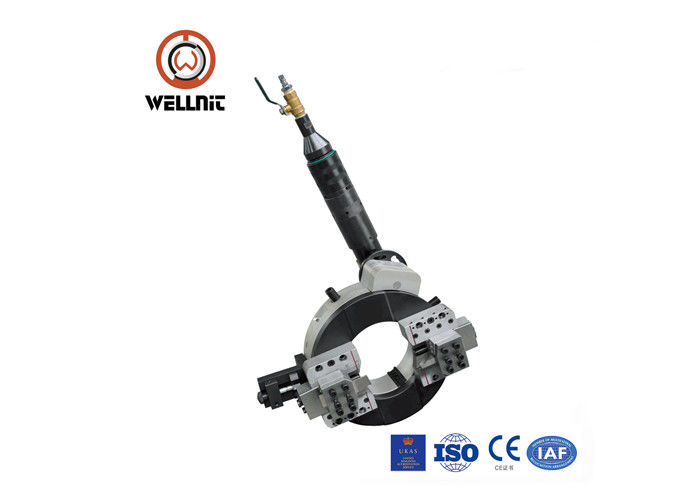

High Efficiency Pneumatic Pipe Cutting Machine 1.5KW - 2KW Rated Power
Production Description:
Pipe cut off
Pipe end beveling
Pipe facing
Cutting and beveling
Compound beveling
Counter boring
Flange facing
Grooving
Model | Working Range (ID-OD) | Wall Thickness | Rotation Speed | Air pressure | Air Consumption | |
OCP-89 | Φ25-89 | 3/4''-3'' | ≤35 | 50r/min | 0.6MPa | 1500 L/min |
OCP-159 | Φ50-159 | 2''-5'' | ≤35 | 21r/min | 0.6MPa | 1500 L/min |
OCP-168 | Φ50-168 | 2''-6'' | ≤35 | 21r/min | 0.6MPa | 1500 L/min |
OCP-230 | Φ80-230 | 3''-8'' | ≤35 | 20r/min | 0.6MPa | 1500 L/min |
OCP-275 | Φ125-275 | 5''-10'' | ≤35 | 20r/min | 0.6MPa | 1500 L/min |
OCP-305 | Φ150-305 | 6''-10'' | ≤35 | 18r/min | 0.6MPa | 1500 L/min |
OCP-325 | Φ168-325 | 6''-12'' | ≤35 | 16r/min | 0.6MPa | 1500 L/min |
OCP-377 | Φ219-377 | 8''-14'' | ≤35 | 13r/min | 0.6MPa | 1500 L/min |
OCP-426 | Φ273-426 | 10''-16'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
OCP-457 | Φ300-457 | 12''-18'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
OCP-508 | Φ355-508 | 14''-20'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
OCP-560 | Φ400-506 | 16''-22'' | ≤35 | 12r/min | 0.7MPa | 1800 L/min |
OCP-610 | Φ457-610 | 18''-24'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
OCP-630 | Φ480-630 | 20''-24'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
OCP-660 | Φ508-660 | 20''-26'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
OCP-715 | Φ560-715 | 22''-28'' | ≤35 | 11r/min | 0.7MPa | 1800 L/min |
OCP-762 | Φ600-762 | 24''-30'' | ≤35 | 11r/min | 0.8MPa | 2000 L/min |
OCP-830 | Φ660-813 | 26''-32'' | ≤35 | 10r/min | 0.8MPa | 2000 L/min |
OCP-914 | Φ762-914 | 30''-36'' | ≤35 | 10r/min | 0.8MPa | 2000 L/min |
OCP-1066 | Φ914-1066 | 36''-42'' | ≤35 | 9r/min | 0.8MPa | 2000 L/min |
OCP-1230 | Φ1066-1230 | 42''-48'' | ≤35 | 8r/min | 0.8MPa | 2000 L/min |
The series machine is ideal for all types of pipe cutting, beveling and end preparation.
The split frame design allows the machine to split in half at the frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and
flange facing operations, as well as weld end preparation on open ended pipe.
Pneumatic
Explosion Proof
Stable performance
Easy to maintenance
Air requirement: 1500-2000L/min @0.63-0.8Mpa
Power: 2HP, 3HP, 4HP
Double motor for big model or heavy duty
Electric
Convenient power supply
Stable performance
Popular choice
Electric requirement: 220-240V 1PH 50/60HZ
Power: 1.43KW, 1.7KW, 2.4KW
Double motor for big model or heavy duty
Hydraulic
Powerful drive, high efficiency
Stable performance, low noise, anti-explosion
Ideal for heavy wall thickness & large size pipe
Hydraulic requirement: 28-50L/min @13Mpa
Electric requirement: 380V 3PH 50/60Hz
Rated Pressure: 13MPa
Rated flow: 28L/min
Max. Torque: 380NM
NC
Powerful drive, high efficiency
Low noise, stable performance
Ideal for heavy wall thickness & large size pipe
Electric requirement: 230V 1PH 50/60Hz;
380V 3PH 50/60Hz
Power: 2.0KW or 3.0KW
Double motor for big model or heavy duty
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
9. Machining heavy-wall pipe from 3/4" up to 56.
Technical Specifications:
Model | working range(ID-OD) | wall thickness | rotation speed |
OCP-305 |
Φ150-305(6”-10”) |
≤30mm |
13 r/min |
