Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Power Offer: | 220-240V 50-60Hz | Operation Way: | Penumatic |
|---|---|---|---|
| Thickness: | Less Than 75 (Standard) | Speed Rotation: | 14r/min |
| Working WAY: | No Spark,Cold Working | Fix Method: | Inside Mounted |
| Working Range: | 150-356mm(Inside Diameter) | ||
| High Light: | pipe chamfering machine,tube bevelling machine |
||

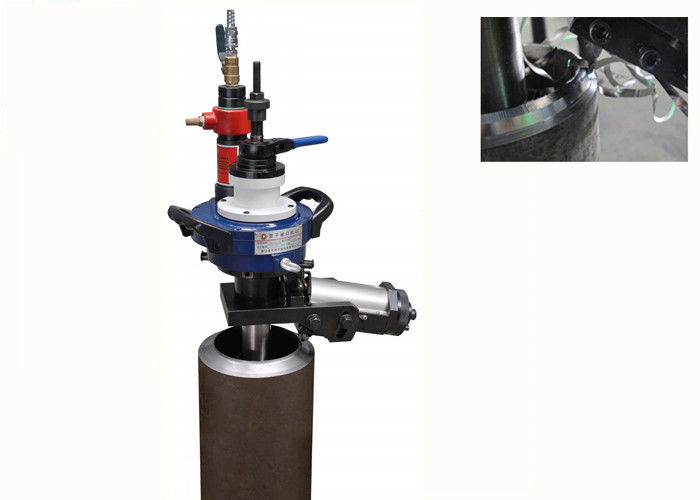

1600W ISP Pneumatic Pipe Beveler Inside Mounted With Free Cutter 14 R/min
Production Description
This series is Air Operated Welding Preparation Pipe Beveling Machine with the following advantages:
Lighter weight,minimal radial space,Easy to operate.
A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
Driveing Type:Electric-ISE,Pneumatic-ISP.
Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
Angle:Beveling angle as per your required.
| ISP-352-2 Beveling Machine | |
| Voltage | 220-240V |
| Frequency | 50-60Hz |
| Power | 1600W |
| Wall Thickness | ≦75 |
| Working Range | 150-356mm |
| Rotation Speed | 14r/min |
| Net Weight |
88kg
|
Model |
Working Range(ID-OD) | Wall Thickness(mm) | Rotation Speed(r/min) | |
| ISP-30 | Φ18-30 | 1/2"-3/4" | ≤15 | 60 |
| ISP-80 | Φ28-89 | 1"-3" | ≤15 | 55 |
| ISP-120 | Φ40-120 | 11/4"-4" | ≤15 | 38 |
| ISP-159 | Φ65-159 | 21/2"-5' | ≤20 | 35 |
| ISP-252-1 | Φ80-273 | 3"-10" | ≤20 | 16 |
| ISP-252-2 | Φ80-273 | ≤75 | 16 | |
| ISP-352-1 | Φ150-356 | 6"-14" | ≤20 | 14 |
| ISP-352-2 | Φ150-356 | ≤75 | 14 | |
| ISP-426-1 | Φ273-426 | 10"-16" | ≤20 | 12 |
| ISP-426-2 | Φ273-426 | ≤75 | 12 | |
| ISP-630-1 | Φ300-630 | 12"-24" | ≤20 | 10 |
| ISP-630-2 | Φ300-630 | ≤75 | 10 | |
| ISP-850-1 | Φ490-850 | 24"-34" | ≤20 | 9 |
| ISP-850-2 | Φ490-850 | ≤75 | 9 | |
Non-standard machines are available according to customers’requirement.
Order Guide
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
