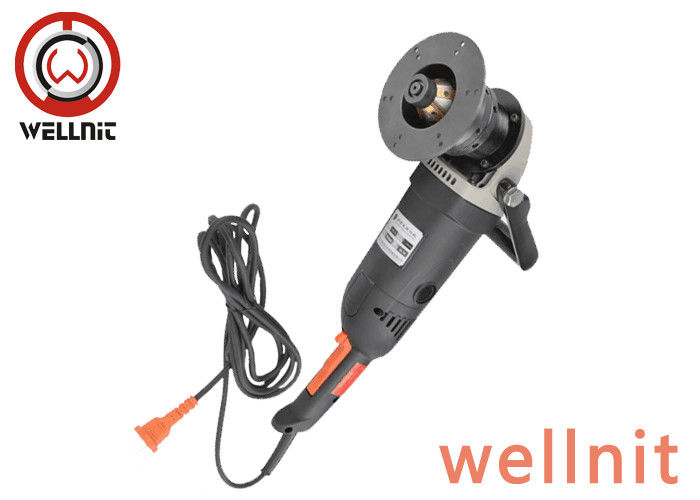

2450W Edge Chamfering Machine Plate Beveling
Tools Double Insulation Protection
product function
Beveling machine is a special tool for pipe or plate to chamfer beveling on the end face before welding. It
has solved the problems of irregular Angle, rough slope and loud working noise in operation process such
as flame cutting and polishing machine grinding. It has the advantages of simple operation, standard
Angle and smooth surface.
The multi-function beveling machine is also called portable multi-function tube-sheet beveling machine,
which belongs to the type of steel plate beveling machine and is used for deburring and beveling of metal
sheet before welding. Applicable to carbon steel, stainless steel, cast iron, hard plastic, non-ferrous
metals and other materials.
Groove machine is a pipe or plate in front of the welding end chamfering groove of special tools,
completely cold machining is solved in the process of flame cutting machine is eager to change material,
operating process in the process of polishing machine grinding Angle and slope surface is rough, noisy
work such as faults, with the features of easy operation, standard, smooth surface, etc.
The utility model has a variety of specifications, and is an advanced tool for professional installation, field
construction and maintenance of power, petroleum, chemical industry, shipbuilding, steel structure and
other industries.
|
PB-15
|
|
Voltage
|
220-240V
|
|
power
|
2450W
|
|
Rotation
|
2500-7500 r/min
|
|
Beveling angle
|
20°-60°(standard 30°)
|
|
Beveling Width
|
1-15mm(Q235)
|
|
Security
|
Soft start
|
|
Tool Bit Qty
|
4/5
|
|
Weight
|
8.5Kg
|
The characteristics of
1. Double insulation protection.
2. No oil smoke, hot fog or vibration during work.
3. Use standard v-roller guides.
4. Slope Angle of 15-45 degrees.
5. No burr on the slope.
6. The cutter is easy to clean, and the unique design can effectively prevent paint peeling.
7. Comfortable and safe operating handle.
8. Unique design of gear motor.

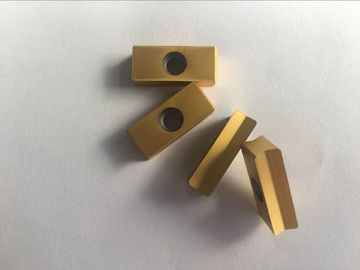

9. Use carbide blade.
10. It is mainly applicable to the groove before welding. It can process the outer groove of the hole and
also remove the rough edges of metal materials. Its versatility and flexibility can save a lot of time, reduce
labor intensity, save costs for the enterprise, and naturally it becomes a very popular machine for
customers. Steel plate beveling machine is very suitable for welding our beveling machine professionally
provides slow grinding which is more effective than gas cutting beveling.
11. No vibration, no heat, no soot, no dust. Using standard carbide insert freedom clean edge burr,
adjustable cutting depth, variable Angle is 15 ° to 45 ° chamfer Angle 60 °, 90 ° [2] is easy to operate.
Main performance of the product
PB-15 multifunctional groove machine is suitable for processing before welding groove (can be
processing into K,V,X,Ytype groove),can be carried out on the plate groove processing and metal
materials burring ,etc.lts wersatility and flexibility and can be a lot of improve the efficiency of work and
make it become the attrcetive device ,the machine structure is compact ,to where the environment is
complex and difficult to machining operations.
Technical characteristics
Compact and lightweight design - easy to operate
2350W powerful motor - greatly improves working efficiency
Small cutting head - flexible operation to achieve difficult to process
Wide range of processing materials - carbon steel, alloy steel, stainless steel, etc
Technical Parameter Catalogue:Pipe Beveling Machine
