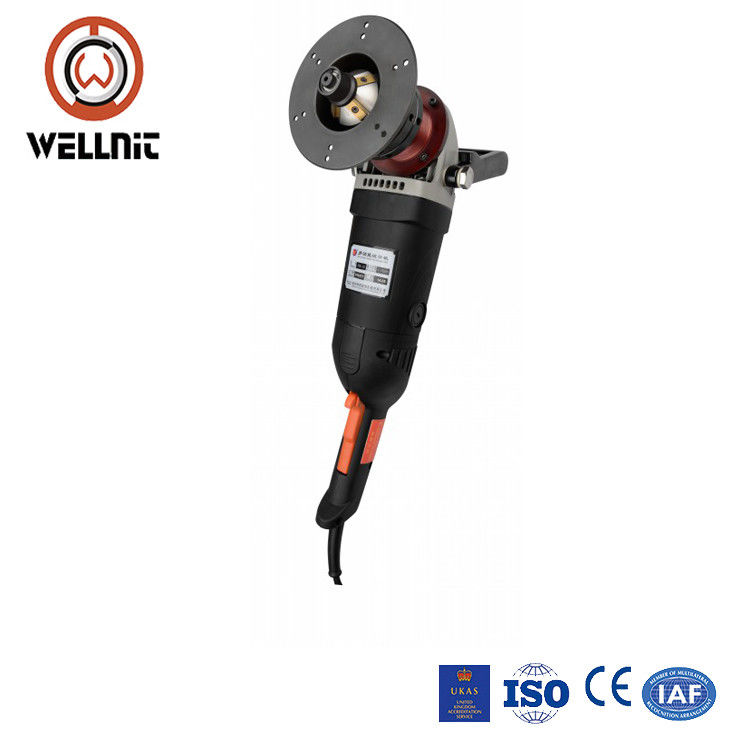

High Precision Portable Plate Beveling Machine Stable Operation 2450W 220V

Introduction and advantages

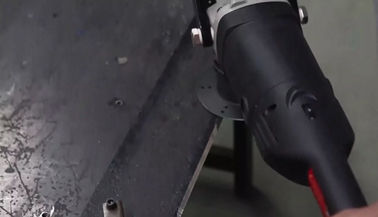

Portable multi-function groove machine for the plate groove, chamfer design, is a kind of hand push type

machining tools, the design of the cutting tools, can not only processing flat mouth straight slope, but also

according to different shape, plate edge processing groove, or round hole edge chamfer on board

processing, the machine is light weight small size, convenient to carry, simple manipulation. Technical

parameters: the power supply of 230 v / 50 to 60 hz motor 2 kw of 2000-5000 RPM round hole small

diameter of 50 mm size groove width (using the 45 degree Angle) 15 mm feed quantity 0.5-10 m/min * 22

groove Angle. ,30,37.5 5, 45, 60 degree Angle need other customized processing small thickness of 1.5

mm plate thickness weight 8.5 Kg specifications 461 * 140 * 256 mm note: "*" depends on the groove

width and processing material product features: v according to different Angle cutter, complete different

Angle groove, commonly used is 22.5, 30,37.5, 45, 60 degrees, and the other point of view can be

customized. V each cutting head is equipped with 5 grain of carbide blade, each blade has four parts, a

set of blade, blade can follow change use 4 times. V temperature protection, and electronic speed control,

the board that can process different materials. V small volume, light weight, easy to carry, easy to operate.
