Minimal Axial Pipe Cutter And Beveler Hydraulic Driven , Cold Cutting Equipment

China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
China Zhejiang Wellnit Mechanical Technology Co.,Ltd certification
I'm Online Chat Now

Minimal Axial Pipe Cutter And Beveler Hydraulic Driven , Cold Cutting Equipment

Minimal Axial Pipe Cutter And Beveler Hydraulic Driven , Cold Cutting Equipment
Minimal Axial Pipe Cutter And Beveler Hydraulic Driven , Cold Cutting Equipment

Large Image :  Minimal Axial Pipe Cutter And Beveler Hydraulic Driven , Cold Cutting Equipment

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE,ISO
Model Number: OCH-508
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets month
Detailed Product Description
Voltage: 220V Rated Power: 1.5-2KW
Speed: 12 R/min Warranty: 1 Year
Working Range: 355-508mm;14''-20'' Cutting Material: Carbon,stainless,alloy
Driving Type: Hydraulic
High Light:

cold cutting pipe equipment

,

split frame pipe cutting machine

Minimal Axial Pipe Cutter And Beveler Hydraulic Driven , Cold Cutting Equipment





Production Description:



The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and



flange facing operations, as well as weld end preparation on open ended pipe.



Model Working Range (ID-OD) Wall Thickness Rotation Speed Air pressure Air Consumption
OCP-89 Φ25-89 3/4''-3'' ≤35 50r/min 0.6MPa 1500 L/min
OCP-159 Φ50-159 2''-5'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-168 Φ50-168 2''-6'' ≤35 21r/min 0.6MPa 1500 L/min
OCP-230 Φ80-230 3''-8'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-275 Φ125-275 5''-10'' ≤35 20r/min 0.6MPa 1500 L/min
OCP-305 Φ150-305 6''-10'' ≤35 18r/min 0.6MPa 1500 L/min
OCP-325 Φ168-325 6''-12'' ≤35 16r/min 0.6MPa 1500 L/min
OCP-377 Φ219-377 8''-14'' ≤35 13r/min 0.6MPa 1500 L/min
OCP-426 Φ273-426 10''-16'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-457 Φ300-457 12''-18'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-508 Φ355-508 14''-20'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-560 Φ400-506 16''-22'' ≤35 12r/min 0.7MPa 1800 L/min
OCP-610 Φ457-610 18''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-630 Φ480-630 20''-24'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-660 Φ508-660 20''-26'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-715 Φ560-715 22''-28'' ≤35 11r/min 0.7MPa 1800 L/min
OCP-762 Φ600-762 24''-30'' ≤35 11r/min 0.8MPa 2000 L/min
OCP-830 Φ660-813 26''-32'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-914 Φ762-914 30''-36'' ≤35 10r/min 0.8MPa 2000 L/min
OCP-1066 Φ914-1066 36''-42'' ≤35 9r/min 0.8MPa 2000 L/min
OCP-1230 Φ1066-1230 42''-48'' ≤35 8r/min 0.8MPa 2000 L/min



16 models, working range for pipe OD 1"-48".


Non-standard model can be customized.


Out-mounted style, clamping by multipoint jaws.


Split frame technology, easy to install on the pipeline.


Cold cutting and beveling, don't influence the pipe's material.


Auto feed, cutting and beveling at the one time, cost effective.


Varity of beveling shape: "U", "V", "Y", J", double "V", compound bevels.


Stationary ring is steel; rotation ring is aluminum, and steel optional.


Electric, pneumatic, numerical control and hydraulic drive options are available.


Several different drive options are available to best position, the motor for a specific machining application.


It can be equipped a wide range of accessories to increase performance and expand

Capability


Pipe cut off


Pipe end beveling


Pipe facing


Cutting and beveling


Compound beveling


Counter boring


Flange facing


Grooving



Main Features:



1. Cold Cutting and Beveling improves safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Tools feed automatically.



5. Fast, Precision, On-site Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and compact design.



8. Easy set-up & Operation.



9. Machining heavy-wall pipe from 3/4" up to 56.



Technical Specifications:



Model working range(ID-OD) wall thickness rotation speed
OCH-508

Φ355-508(14”-20”)

≤30mm

12 r/min





Note:Non-standard machine are available according to customers' requirement.

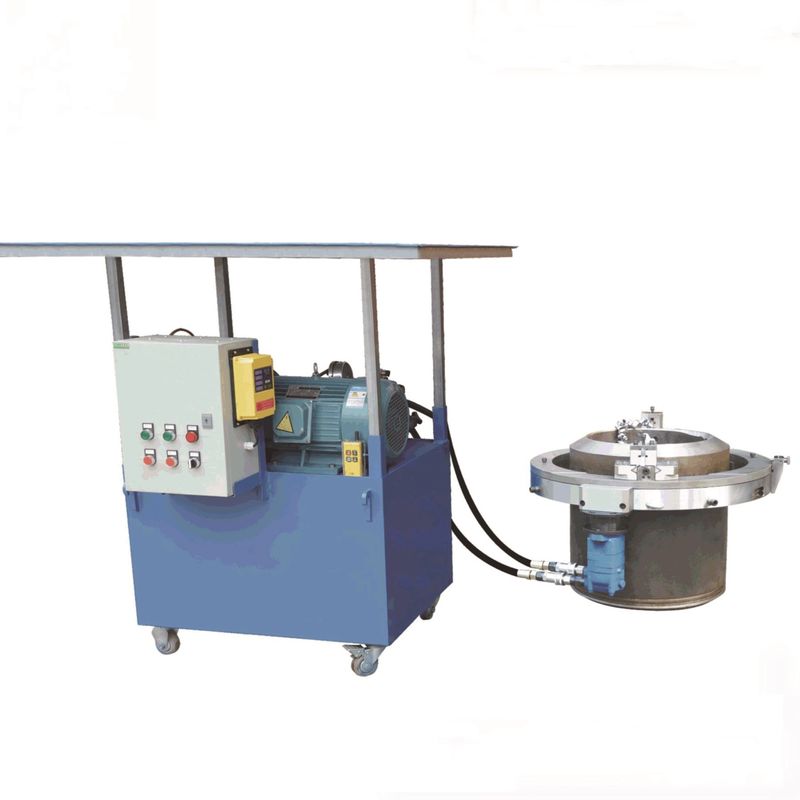

Hydraulic


Powerful drive, high efficiency


Stable performance, low noise, anti-explosion


Ideal for heavy wall thickness & large size pipe


Hydraulic requirement: 28-50L/min @13Mpa


Electric requirement: 380V 3PH 50/60Hz


Rated Pressure: 13MPa


Rated flow: 28L/min


Max. Torque: 380NM
