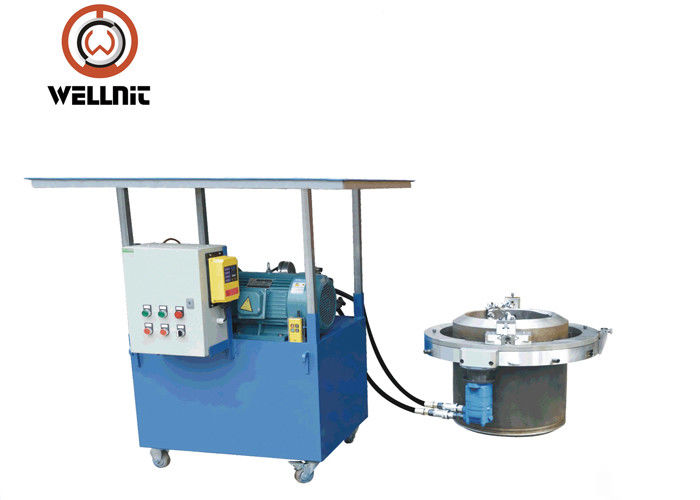

Hydraulic Station Split Frame Pipe Cutting Machine , Steel Pipe Beveler 11 R/min

Hydraulic Station Split Frame Pipe Cutting Machine , Steel Pipe Beveler 11 R/min
Hydraulic Station Split Frame Pipe Cutting Machine , Steel Pipe Beveler 11 R/min Hydraulic Station Split Frame Pipe Cutting Machine , Steel Pipe Beveler 11 R/min

Large Image :  Hydraulic Station Split Frame Pipe Cutting Machine , Steel Pipe Beveler 11 R/min

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Wellnit
Certification: CE,ISO
Model Number: OCH-610
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets month
Detailed Product Description
HS CODE: 8461909000 Rated Power: 1.5-2KW
Speed: 11 R/min Layout: Portable
Working Range: 457-610mm;18''-24'' Cutting Material: Carbon,stainless,alloy
Driving Type: Hydraulic
High Light:

industrial pipe cutting tools

,

split frame pipe cutting machine

Hydraulic Station Split Frame Pipe Cutting Machine , Steel Pipe Beveler 11 R/min





Production Description:



Standard split frame pipe cutting and beveling machine, designed to cut, bevel, single point, counterbore



and face on the pipe, tube and flanges. It is a portable pipe cutting and beveling machine tools of clamshell



style. Smartly designed, ability to split in half at the frame, easy to install on the pipe line.



It is comprehensive used in pipework of oil, gas, food, petroleum, chemical, boiler, medicine machine,



nuclear power, and power supply construction. 16 models are available in 6 inch (152.4mm) increments,



with additional sizes available by special order.



The series machine is ideal for all types of pipe cutting, beveling and end preparation.



The split frame design allows the machine to split in half at the frame and mount around



the OD of the in-line pipe or fittings for strong, stable clamping.



The equipment performs precision in-line cut or simultaneous cut/bevel, single point,



counterbore and flange facing operations, as well as weld end preparation on open ended pipe.



Electric


Convenient power supply


Stable performance


Popular choice


Electric requirement: 220-240V 1PH 50/60HZ


Power: 1.43KW, 1.7KW, 2.4KW


Double motor for big model or heavy duty

Pneumatic


Explosion Proof


Stable performance


Easy to maintenance


Air requirement: 1500-2000L/min @0.63-0.8Mpa


Power: 2HP, 3HP, 4HP


Double motor for big model or heavy duty



 NC


 Powerful drive, high efficiency


 Low noise, stable performance


 Ideal for heavy wall thickness & large size pipe


 Electric requirement: 230V 1PH 50/60Hz;


 380V 3PH 50/60Hz


 Power: 2.0KW or 3.0KW


 Double motor for big model or heavy duty

 Hydraulic


 Powerful drive, high efficiency


 Stable performance, low noise, anti-explosion


 Ideal for heavy wall thickness & large size pipe


 Hydraulic requirement: 28-50L/min @13Mpa


 Electric requirement: 380V 3PH 50/60Hz


 Rated Pressure: 13MPa


 Rated flow: 28L/min


 Max. Torque: 380NM



Tooling


Form Style and Insert Style


HSS, HSS Co, Carbide


Make more tooling on demand



Form Style


Material: M42 and M35


Type: Sever, bevel, double bevel



compound bevel,counter bore


Angle: 0°, 30°, 37.5°


Double 30°, 37.5°+10°


Size: 90mm, 150mm, 200mm

Insert style


Material: Holder HSS


Insert: HSS-Co or Carbide


Type: Sever, bevel, double bevel, compound bevel



Angle: 0°, 30°, 37.5°,


Double 30°, 37.5°+10°


Size: 90mm, 150mm, 200mm







Main Features:



1. Cold Cutting and Beveling improves safety.



2. Cutting and Beveling simultaneous.



3. Split Frame: easy mounted on pipeline.



4. Tools feed automatically.



5. Fast, Precision, On-site Beveling.



6. Minimal Axial and Radial clearance.



7. Light weight and compact design.



8. Easy set-up & Operation.



9. Machining heavy-wall pipe from 3/4" up to 56.



Hydraulic Station Split Frame Pipe Cutting Machine , Steel Pipe Beveler 11 R/min 0



Technical Specifications:



Model working range(ID-OD) wall thickness rotation speed
OCH-610

Φ457-610(18”-24”)

≤30mm

11 r/min





Capability


Pipe cut off


Pipe end beveling


Pipe facing


Cutting and beveling


Compound beveling


Counter boring


Flange facing


Grooving
